8361SRi25.06

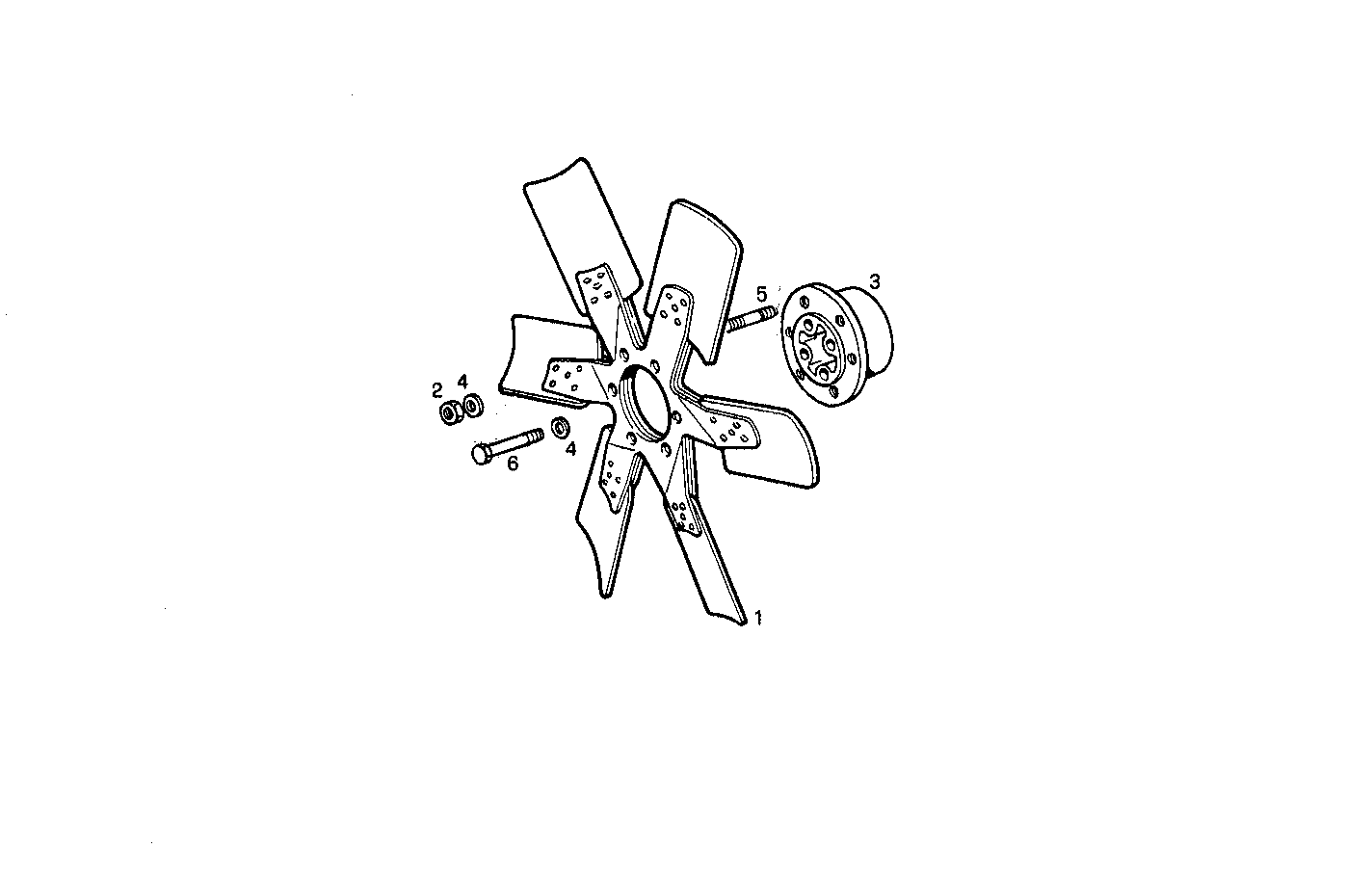

3230.000 FAN

Iveco/FPT FAN

Item Part number Description
1 79003152 FAN Ø562 MM
2 17038221 HEXAGON NUT M10
3 4936530 HUB
4 17090174 SPRING WASHER Ø10X20 MM
5 13546321 STUD M10X25 MM
6 15972121 SCREW M10X1,25X115
