8361SRi25.07

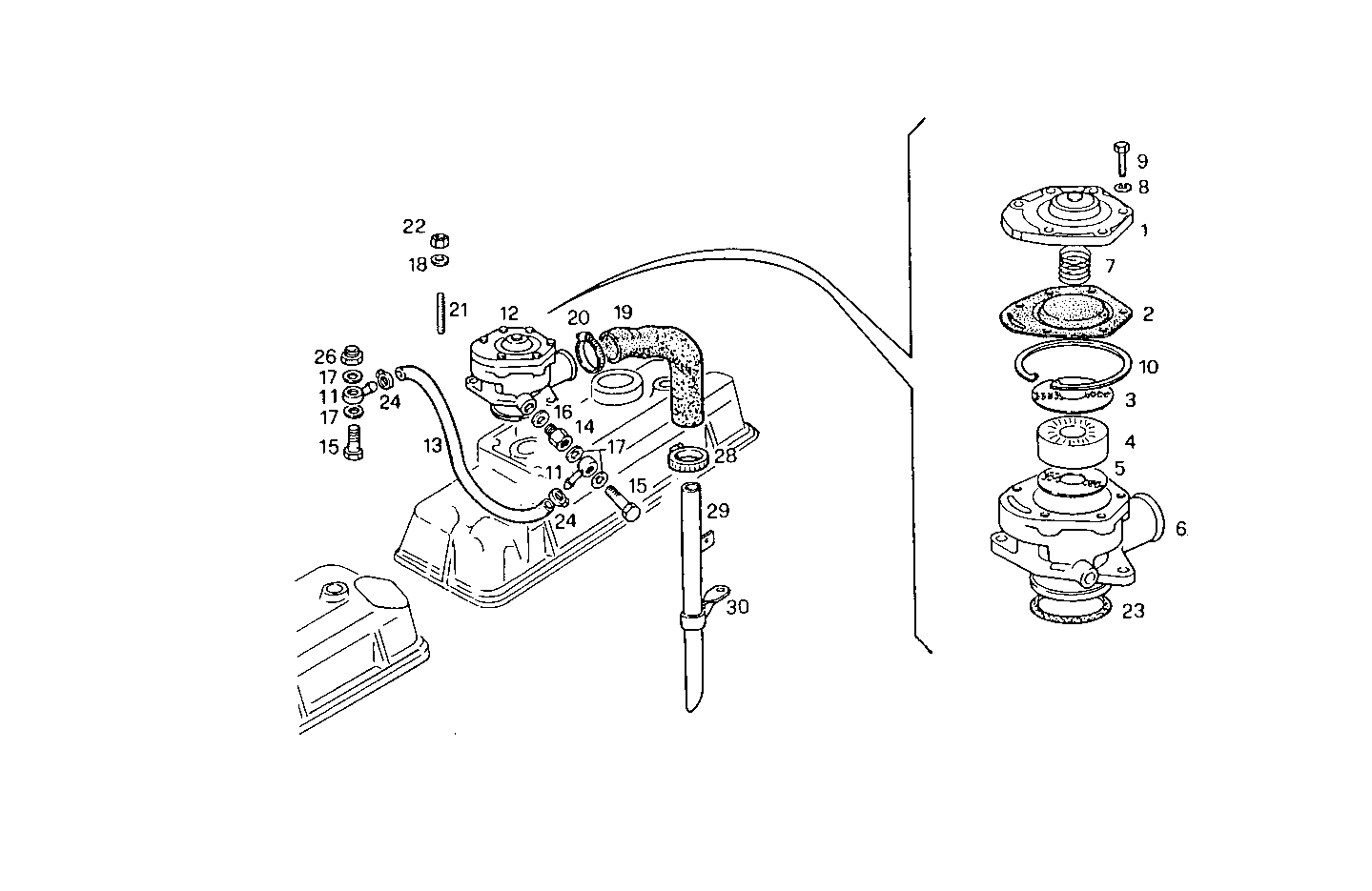

0450.123 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4771075 COVER
2 4771078 DIAPHRAGM
3 4771080 DISC
4 4771079 FILTER
5 4771081 DISC
7 4812557 SPRING
8 17094714 WASHER Ø6,4X12 MM
9 10902811 HEXAGON BOLT M6X30 MM
10 11062176 CIRCLIP Ø90,5 MM
11 4671701 SWIVEL COUPLING
12 4816603 BREATHER ASSY
13 19056687 RUBBER HOSE Ø7,5 MM
14 8105451 PIPE SOCKET
15 4864082 BANJO BOLT M12X1,5X25 MM
16 4858606 GASKET Ø10X14X1 MM
17 4858607 WASHER Ø12X17 MM SP=1,5 MM
18 17090274 WASHER Ø10X20 MM
19 8015523 RUBBER SLEEVE Ø30 - Ø25 MM
20 17764692 CLIP Ø25/40 MM
21 13543321 STUD M8X16X20 MM
22 17037931 HEXAGON NUT M8X1,25
23 17289681 O-RING Ø44 MM SP=3,53 MM
24 12173690 CLIP Ø14-22 MM
26 4928337 PIPE SOCKET
28 17764792 HOSE CLIP Ø32-50 MM
29 8105979 BREATHER PIPE
30 4735644 RETAINER
