8361SRi26.00

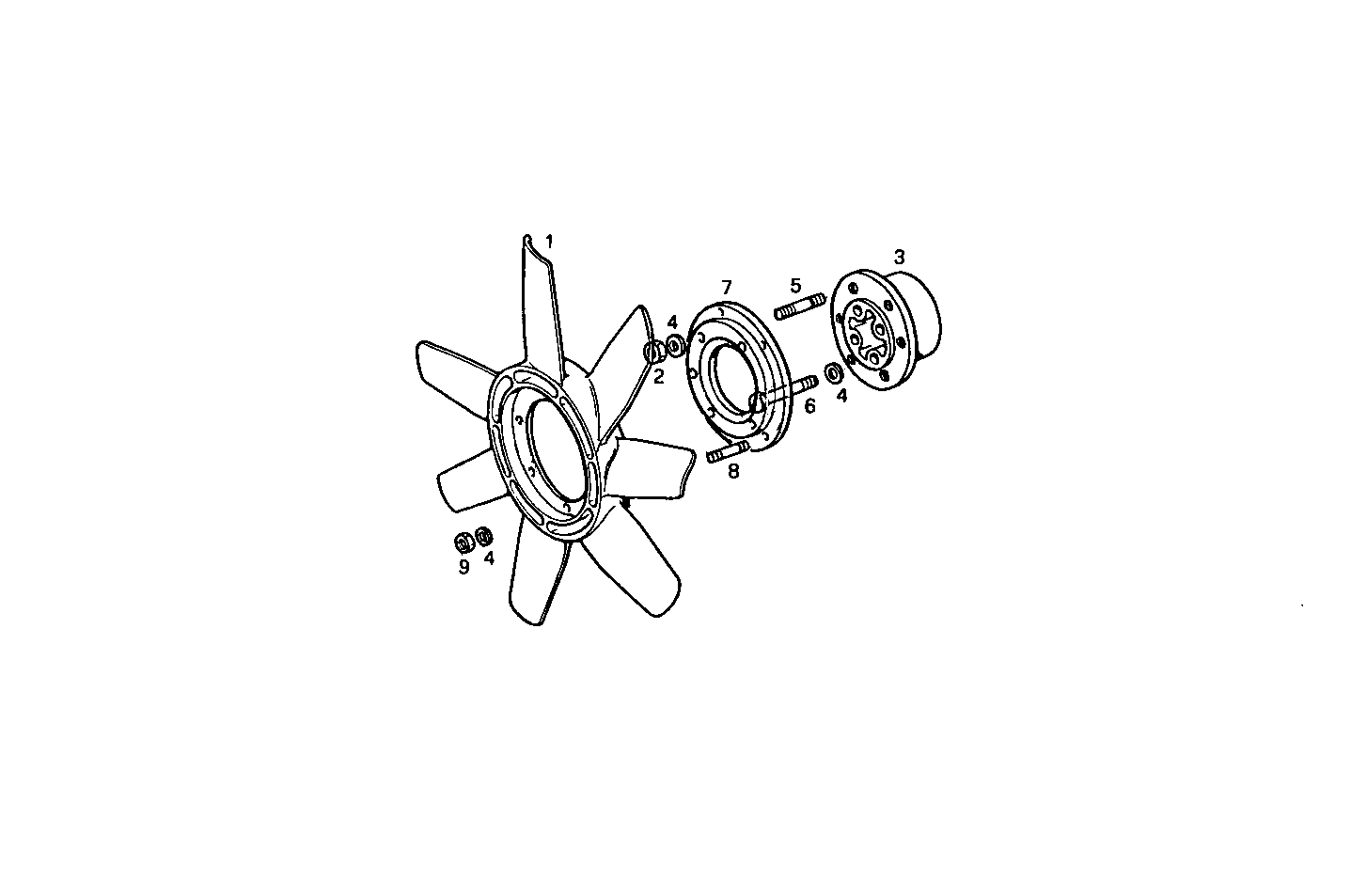

3230.019 FAN

Iveco/FPT FAN

Item Part number Description
1 4935522 FAN Ø650 MM
2 17038221 HEXAGON NUT M10
3 4936529 HUB ASSY
4 17090274 WASHER Ø10X20 MM
5 13546321 STUD M10X25 MM
6 15971830 HEXAGON BOLT M10X1,25X100 MM
7 8101000 SPACING BAR
8 13543020 STUD M8X16X14
9 17037931 HEXAGON NUT M8X1,25
