8361SRi26.00

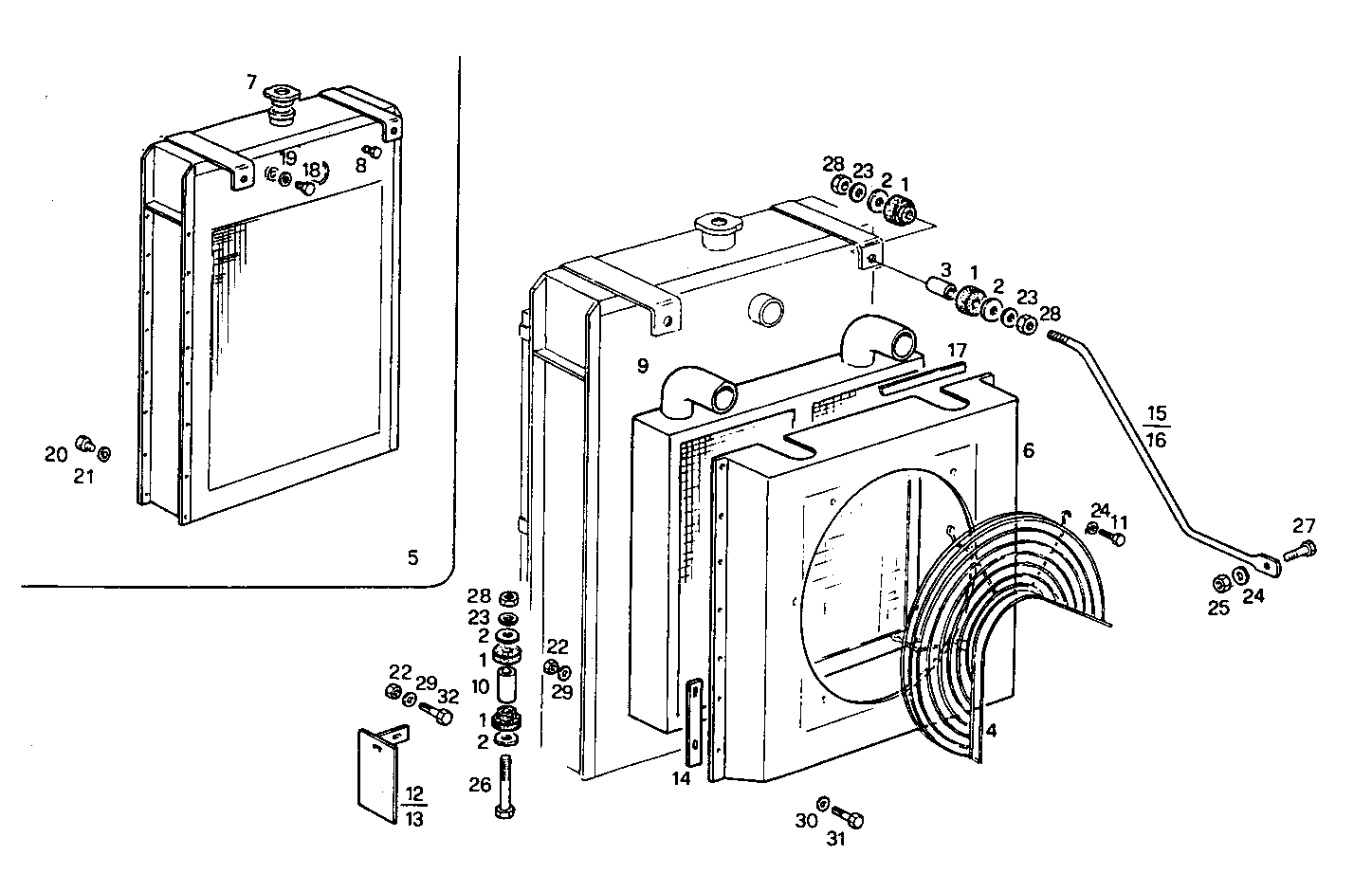

3300.001/01 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 741569 RUBBER LUG
2 8113816 WASHER
3 741571 SPACING BAR Ø10X17 MM SP=2,3
4 8107634 PROTECTION
5 8007076 WATER RADIATOR
6 8114240 AIR HOOD
7 8107632 RADIATOR PLUG
8 8105096 PLUG
9 8107525 AIR/AIR INTERCOOLER
10 8108634 SPACING BAR
11 15970621 SCREW M10X1,25X22
12 8008157 PROTECTION LEFT
13 8008158 PROTECTION RIGHT
14 8008156 SPACING BAR
15 8114381 TIE ROD LEFT
16 8114382 TIE ROD RIGHT
17 8008159 GASKET
18 16992211 THREADED PLUG M12X1,5
19 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
20 10300611 LOCK PLUG M14X1,5
21 4858608 SEAL GASKET dia.14x19,5x1,5
22 17037931 HEXAGON NUT M8X1,25
23 17091174 SPRING WASHER Ø12X24 MM
24 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 17038221 HEXAGON NUT M10
26 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
27 15970521 HEXAGON BOLT M10X20 MM
28 16101511 HEXAGON NUT M12X1,25
30 14496501 WASHER Ø8,5 MM
31 16043621 HEXAGON BOLT M8X25 MM
32 16043221 HEXAGON BOLT M8X16 MM
