8361SRi26.00

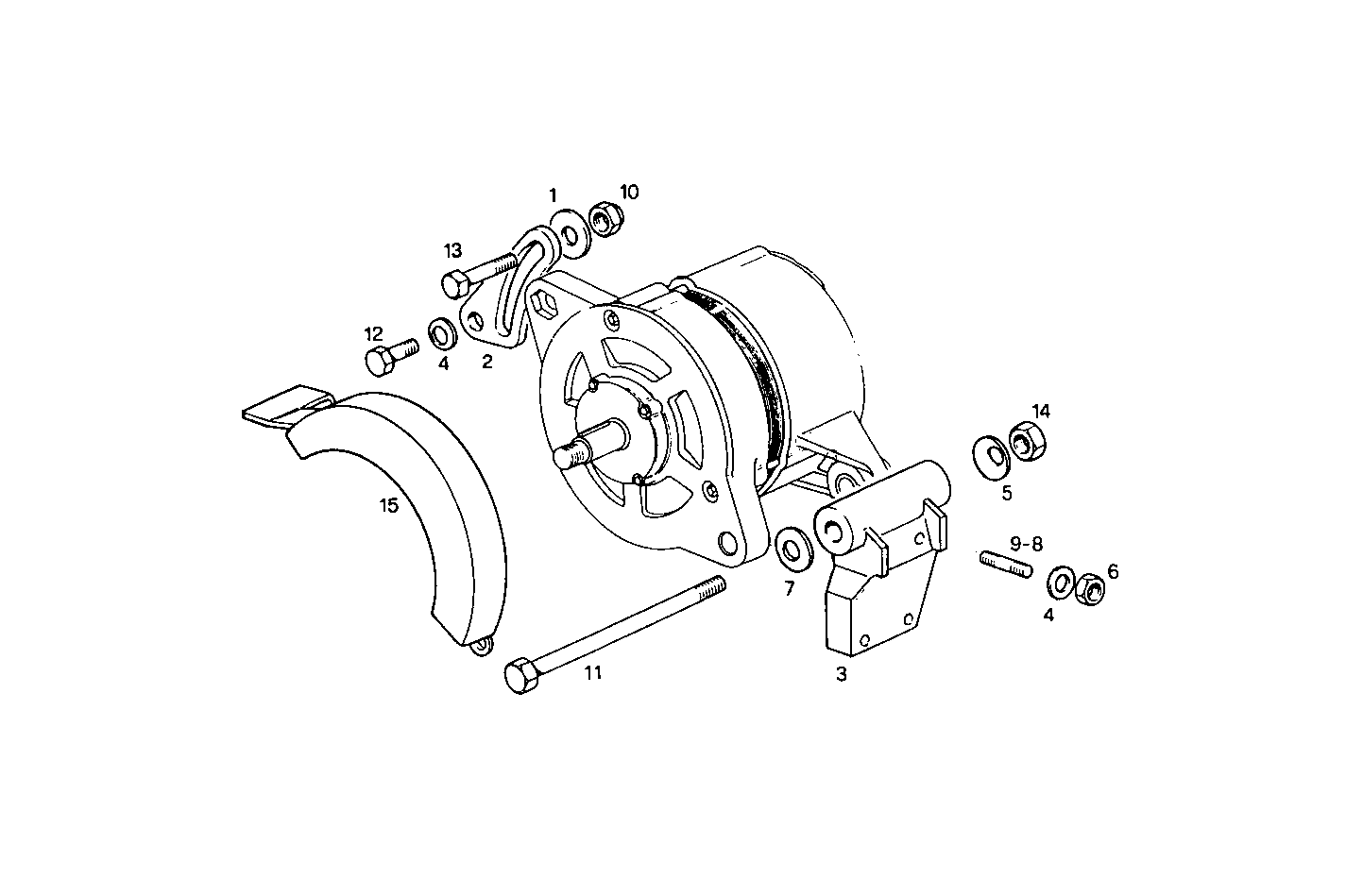

4010.073 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 4712521 | BELT TENSIONER |
| 3 | 4733103 | SUPPORT |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17091174 | SPRING WASHER Ø12X24 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 12646901 | WASHER Ø12X28 MM |
| 8 | 13546921 | STUD M8X12X22 MM |
| 9 | 13547721 | STUD M10X20X90 |
| 10 | 17157221 | NUT M10X1,25 |
| 11 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 13 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 14 | 17038621 | NUT M12 |
| 15 | 8821296 | PROTECTION |
