8361SRi26.00

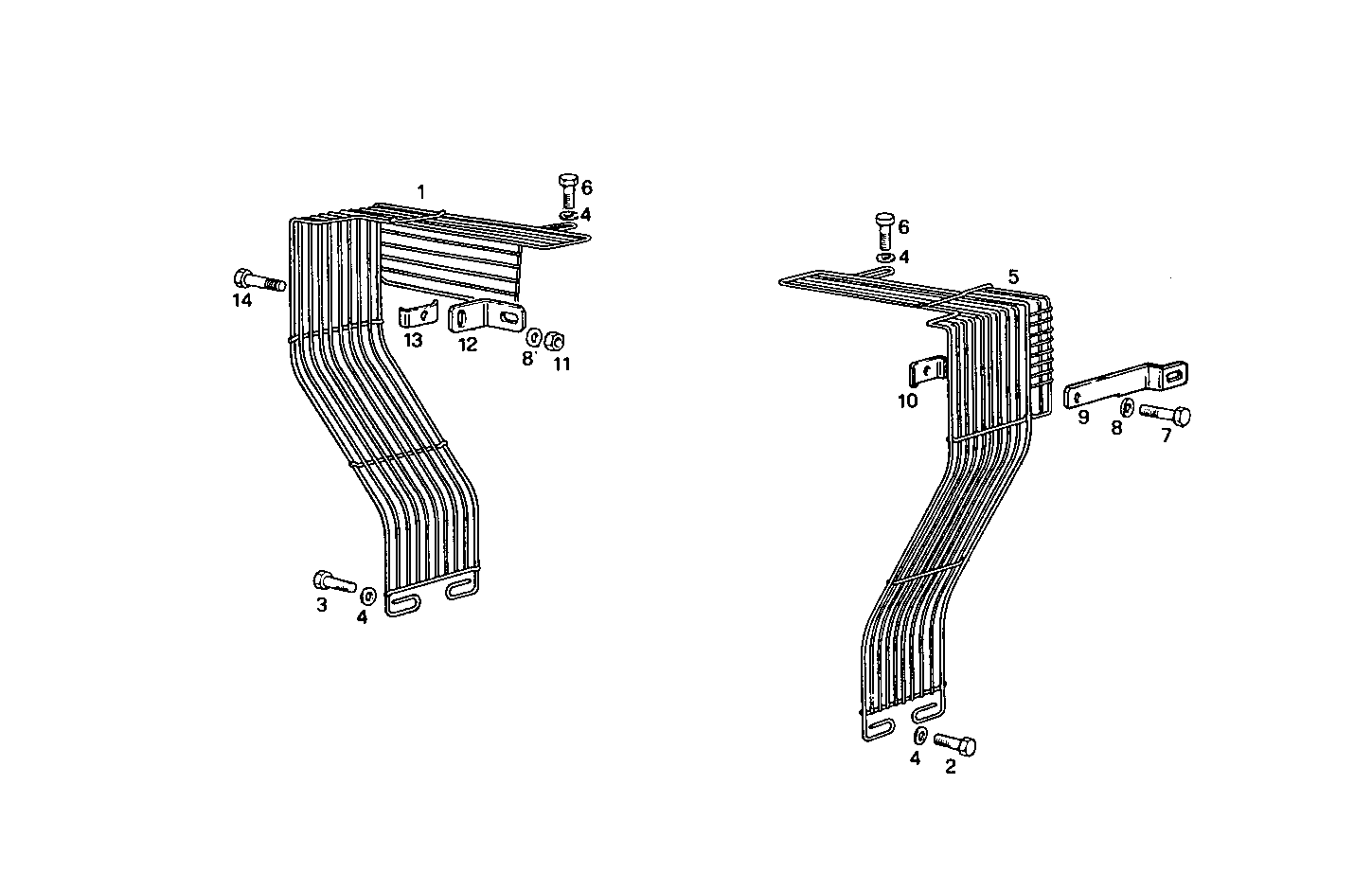

5770.004 SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8114370 | PROTECTION |
2 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
3 | 16044121 | HEXAGON BOLT M8X45 MM (8.8) |
4 | 11198371 | SPRING WASHER Ø10X20 MM |
5 | 8114371 | PROTECTION |
6 | 15970521 | HEXAGON BOLT M10X20 MM |
7 | 16602224 | HEXAGON BOLT M5X20 MM |
8 | 12624101 | WASHER Ø5X22X2MM |
9 | 8005135 | RETAINER |
10 | 4641874 | RETAINER TOP |
11 | 10725011 | NUT |
12 | 4935433 | RETAINER |
13 | 4641873 | RETAINER BOTTOM |
14 | 10978021 | HEXAGON BOLT M5X20 MM |
