8361SRi26.06

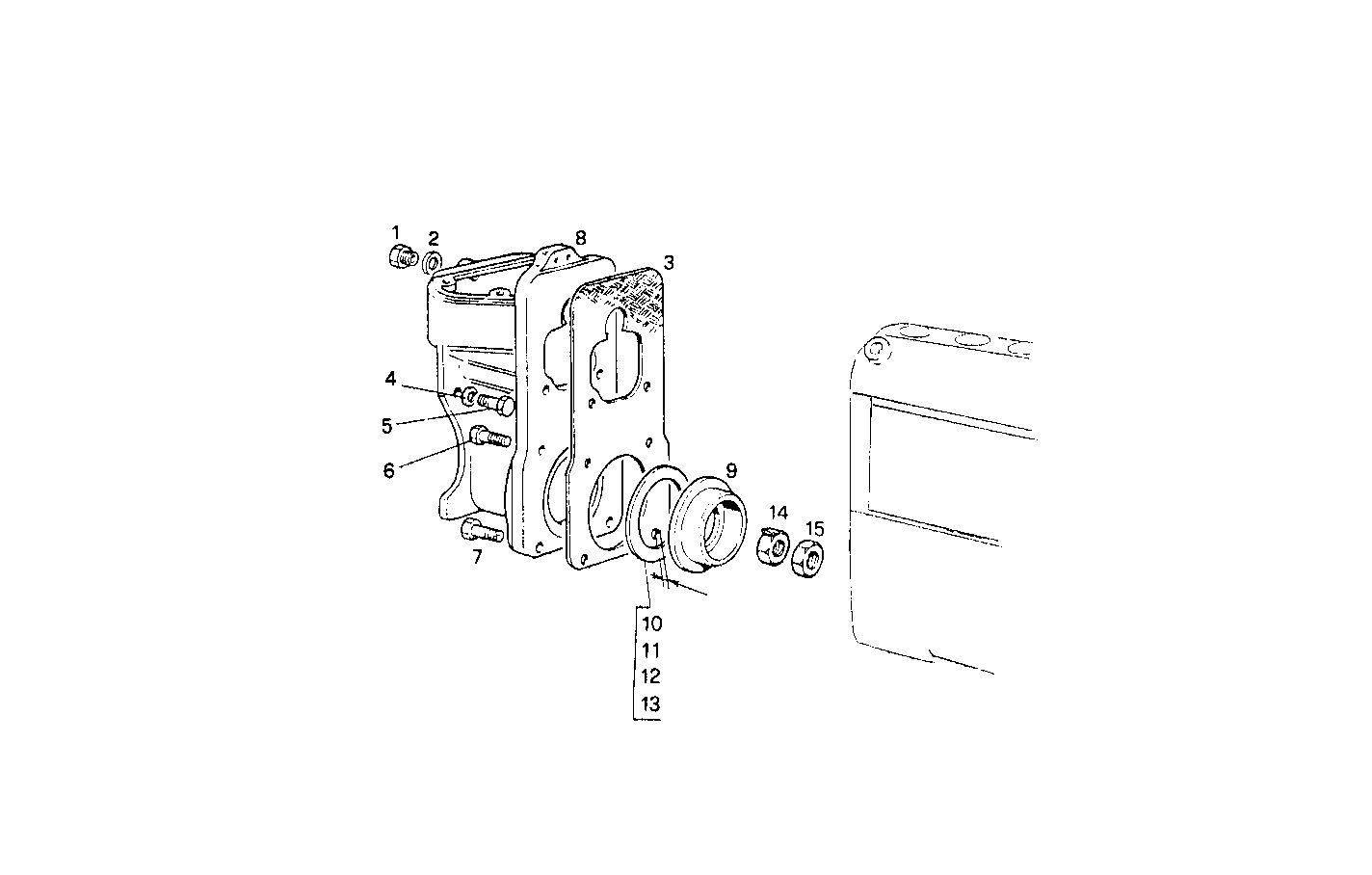

1460.044/02 ELECTRONIC SPEED GOVERNOR
Item | Part number | Description |
---|---|---|
1 | 16992411 | THREADED PLUG M16X1,5 |
2 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
3 | 8015485 | GASKET |
4 | 17088474 | WASHER Ø6X12 MM |
5 | 4934404 | SCREW |
6 | 14309221 | SCREW M6X65 |
7 | 16689134 | SOCKET-HEAD SCREW M6X16 MM |
8 | 8007450 | TIMINGGEAR HOUSIN |
9 | 8108613 | FLANGE |
10 | 772277 | SHIM SP=1,2 MM |
11 | 772278 | SHIM SP=1,5 MM |
12 | 772279 | SHIM SP=1,8 MM |
13 | 772280 | SHIM SP=2,00 MM |
14 | 8108716 | NUT |
15 | 16979931 | HEXAGON NUT M12 |
