8361SRi26.06

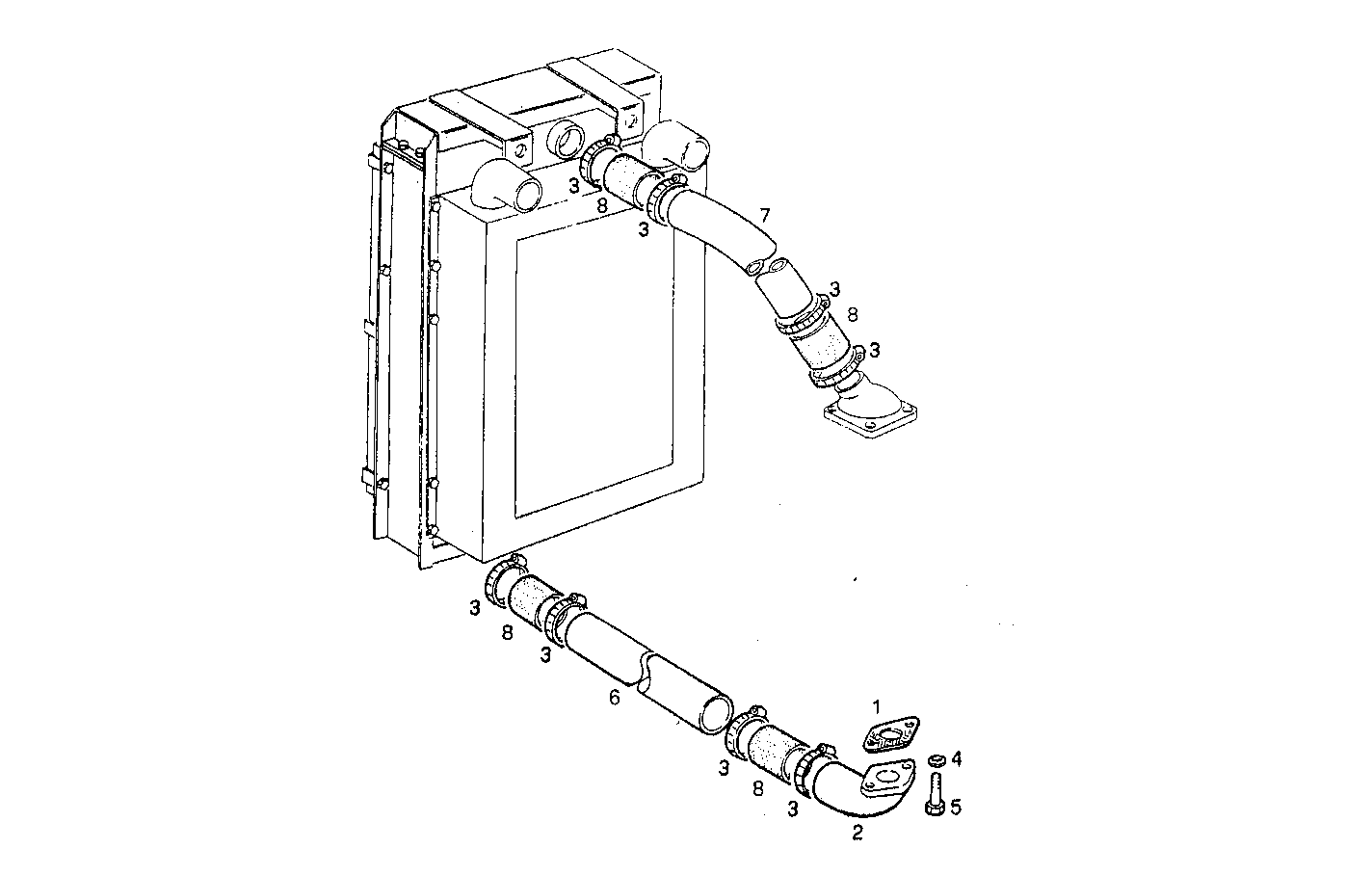

3300.011/02 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 98412396 | GASKET |
2 | 4935624 | WATER PIPE |
3 | 17764992 | CLIP Ø50-70 MM |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
6 | 8114275 | WATER PIPE |
7 | 8114276 | WATER PIPE |
8 | 17745087 | WATER HOSE Ø50 MM |
