8361SRM32.00

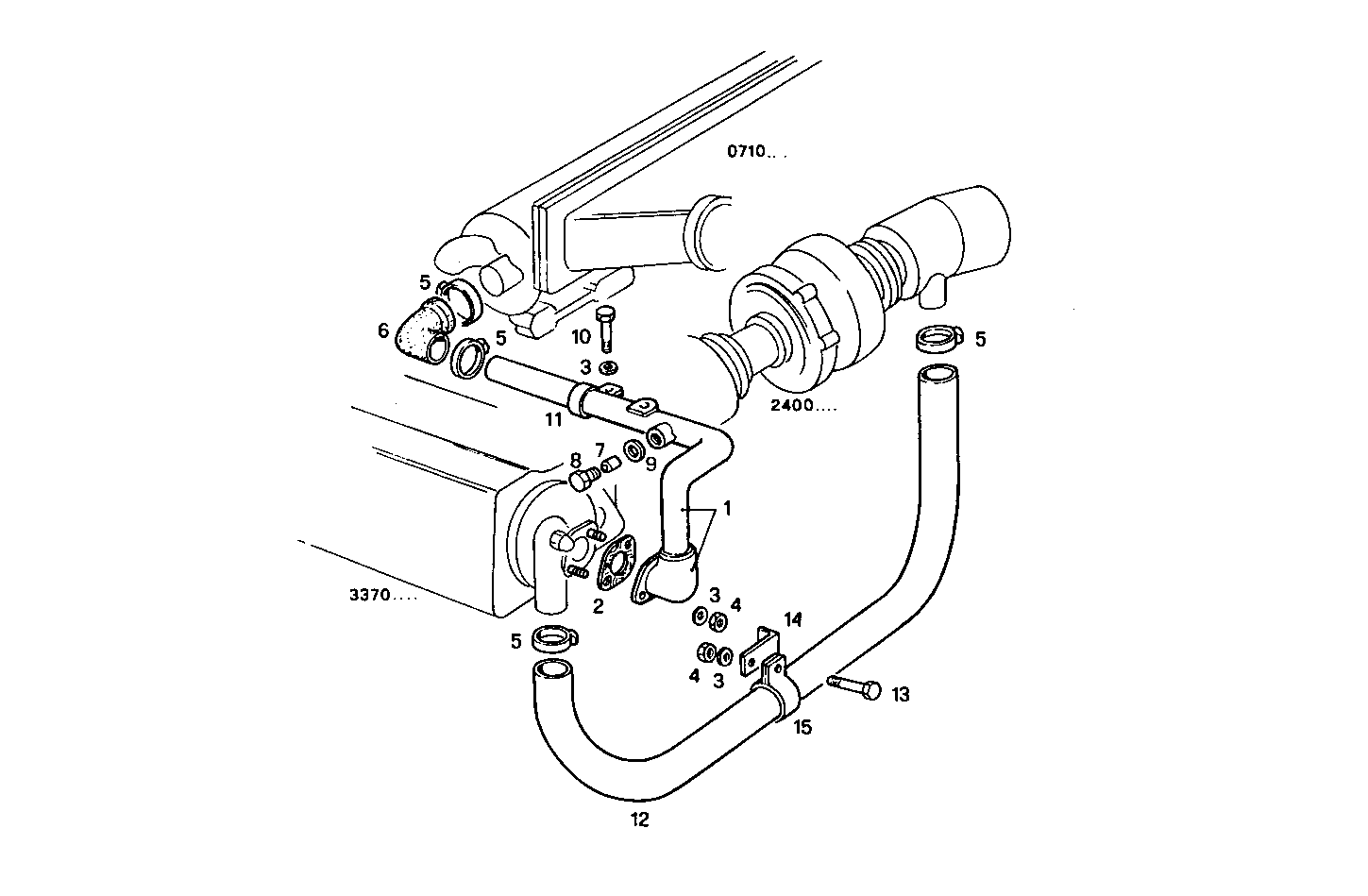

3390.009/01 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8104317 | WATER PIPE |
| 2 | 8008755 | FLAT ENGINE GASKET |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17764793 | CLIP Ø32/50 MM |
| 6 | 8104316 | WATER HOSE |
| 7 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 8 | 8105276 | PLUG M16 |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 4936741 | CLIP |
| 12 | 8102457 | WATER HOSE |
| 13 | 16043124 | SCREW M8X14 MM |
| 14 | 4932164 | RETAINER |
| 15 | 8100667 | CLIP |
