8361SRM32.00

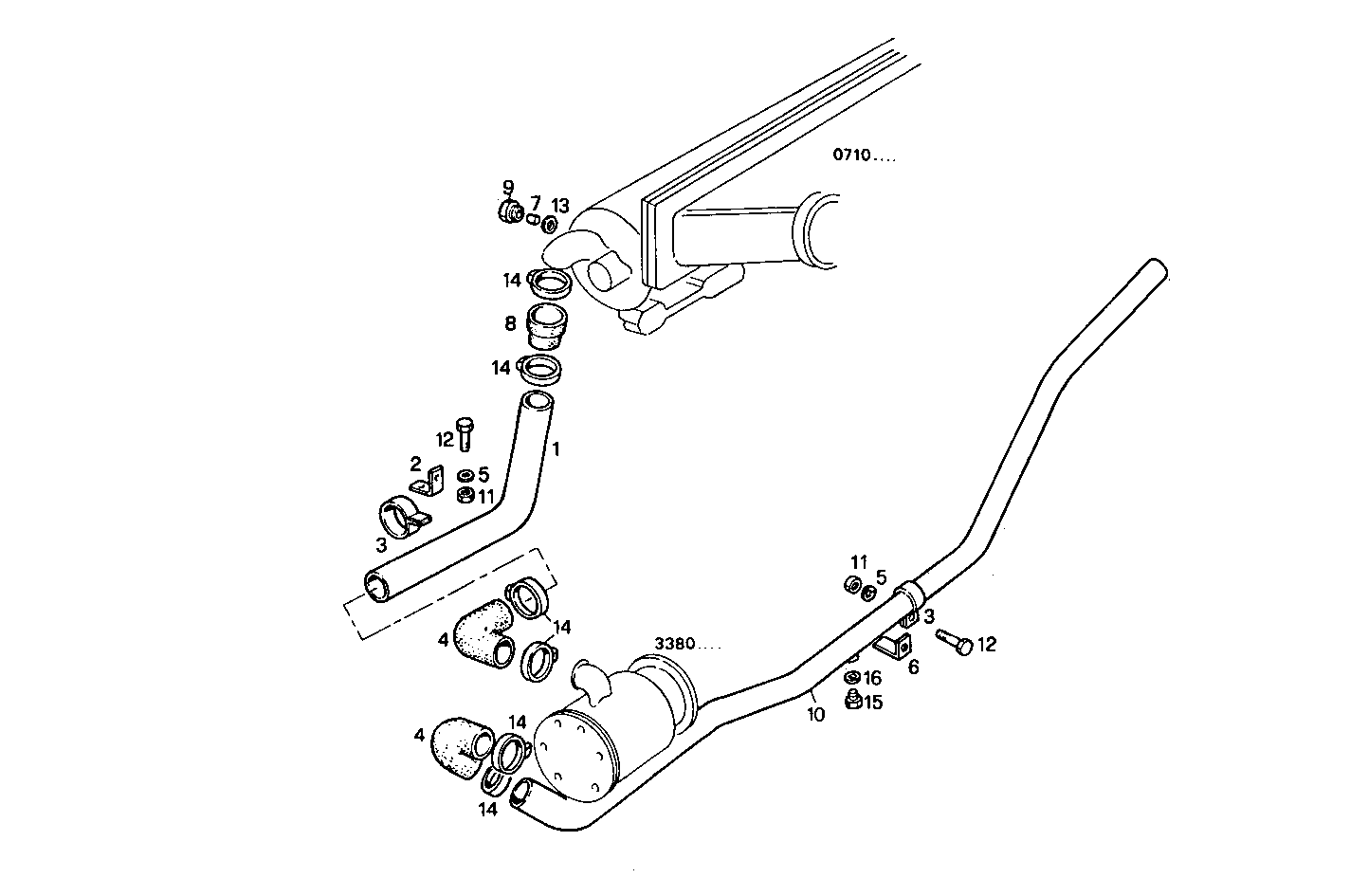

3390.009/02 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8110567 | WATER PIPE |
| 2 | 4933030 | RETAINER |
| 3 | 4936741 | CLIP |
| 4 | 8100546 | RUBBER SLEEVE |
| 5 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 6 | 8100819 | RETAINER |
| 7 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 8 | 8813238 | WATER HOSE |
| 9 | 8105276 | PLUG M16 |
| 10 | 8110566 | WATER PIPE |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 15970621 | SCREW M10X1,25X22 |
| 13 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 14 | 17764793 | CLIP Ø32/50 MM |
| 15 | 11903140 | PLUG M10X1,25 |
| 16 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
