8361SRM32.00

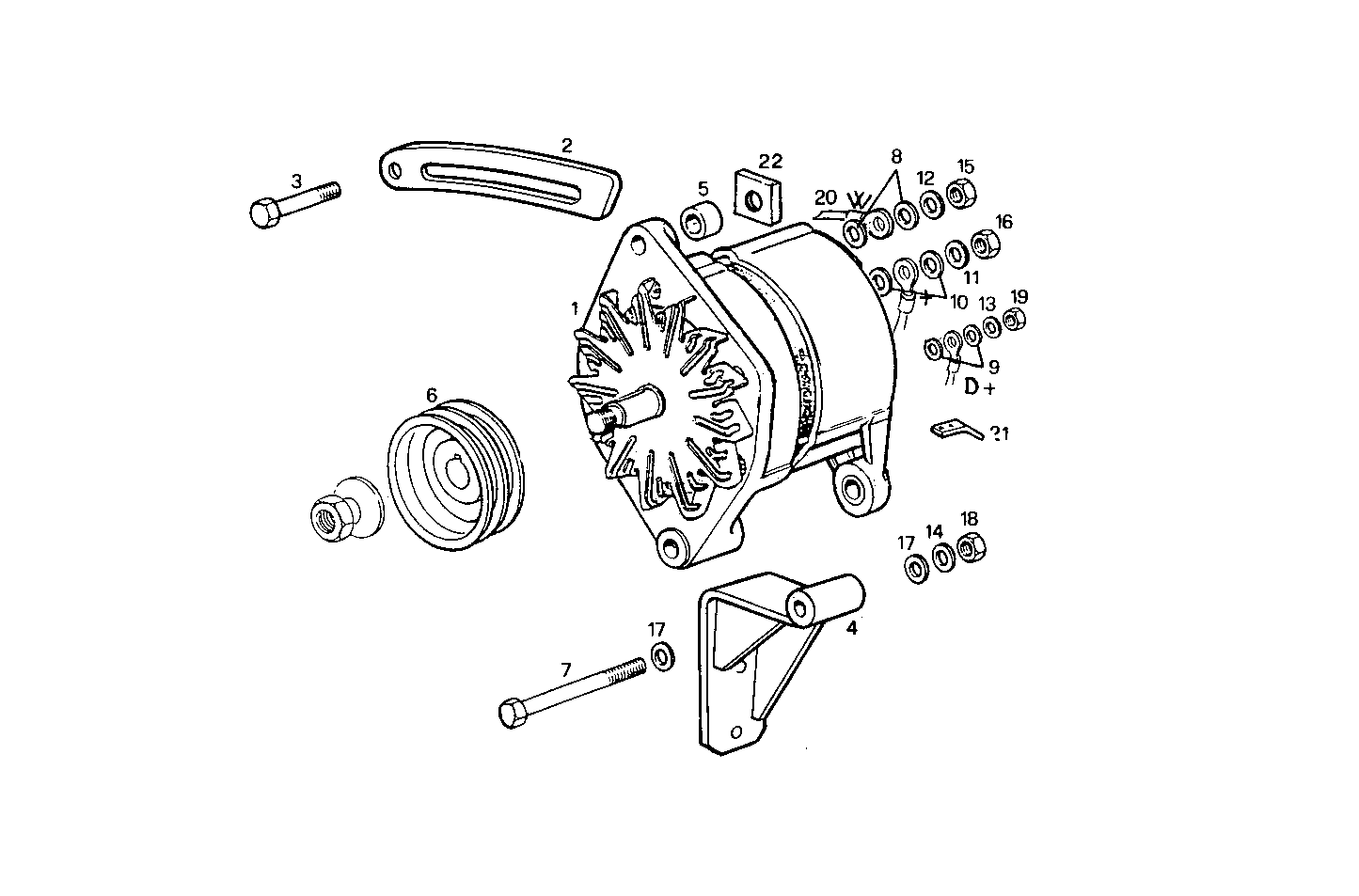

A14010006 SELF-REGULATED ALTERNATOR - 24V 80A (W)
Item | Part number | Description |
---|---|---|
1 | 98424453 | ALTERNATOR ASSY BOSCH |
2 | 8016521 | BELT TENSIONER |
3 | 14308121 | SOCKET-HEAD SCREW |
4 | 8016204 | SUPPORT |
5 | 4742408 | SPACER BUSH |
6 | 4802731 | GENERATOR PULLEY |
7 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
8 | 17094504 | WASHER Ø5,3X10 MM |
9 | 17094204 | WASHER Ø4X8X0,8 MM |
10 | 17094904 | WASHER Ø8X16X1,6 MM |
11 | 17494834 | WASHER Ø8 MM |
12 | 10615379 | TOOTHED WASHER Ø5,3 MM |
13 | 10615279 | WASHER Ø4 MM |
14 | 17494934 | WASHER Ø10X18,1X2,2 MM |
15 | 17037721 | NUT M5X0,8 |
16 | 17037921 | HEXAGON NUT M8X1,25 |
17 | 17095104 | WASHER Ø10X21X2 MM |
18 | 17038221 | HEXAGON NUT M10 |
19 | 17037621 | HEXAGON NUT M4 |
20 | 8019531 | WIRE/CABLE W |
21 | 12277944 | CONNECTION D+ |
22 | 98424121 | LOCKING PLATE |
