8361SRM32.00

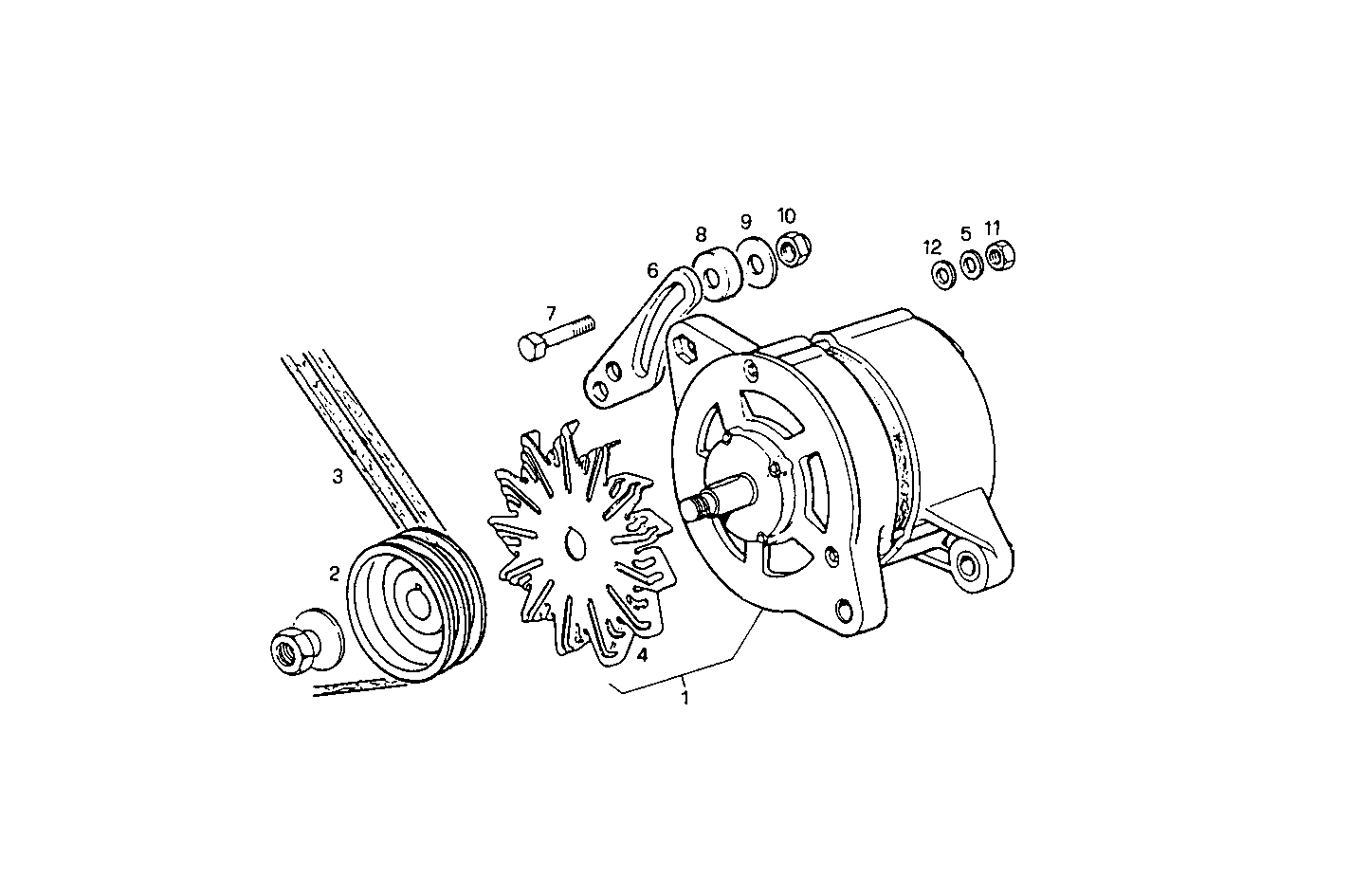

A14110003 SELF-REGULATED ALTERNATOR - 24V 55A - poles system

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 99461190 ALTERNATOR ASSY BOSCH [from 05-99]
2 8109713 PULLEY
3 8109714 SET OF V-BELTS KIT
4 4757196 GENERATOR FAN BOSCH
5 17494834 WASHER Ø8 MM
6 8023785 BELT TENSIONER
7 11306921 SCREW M10X1,25X30
8 17095104 WASHER Ø10X21X2 MM
9 17090474 SPRING WASHER Ø10X27 MM SP=2,5
10 17038221 HEXAGON NUT M10
11 17037931 HEXAGON NUT M8X1,25
12 17094904 WASHER Ø8X16X1,6 MM
