8361SRM32.01A550

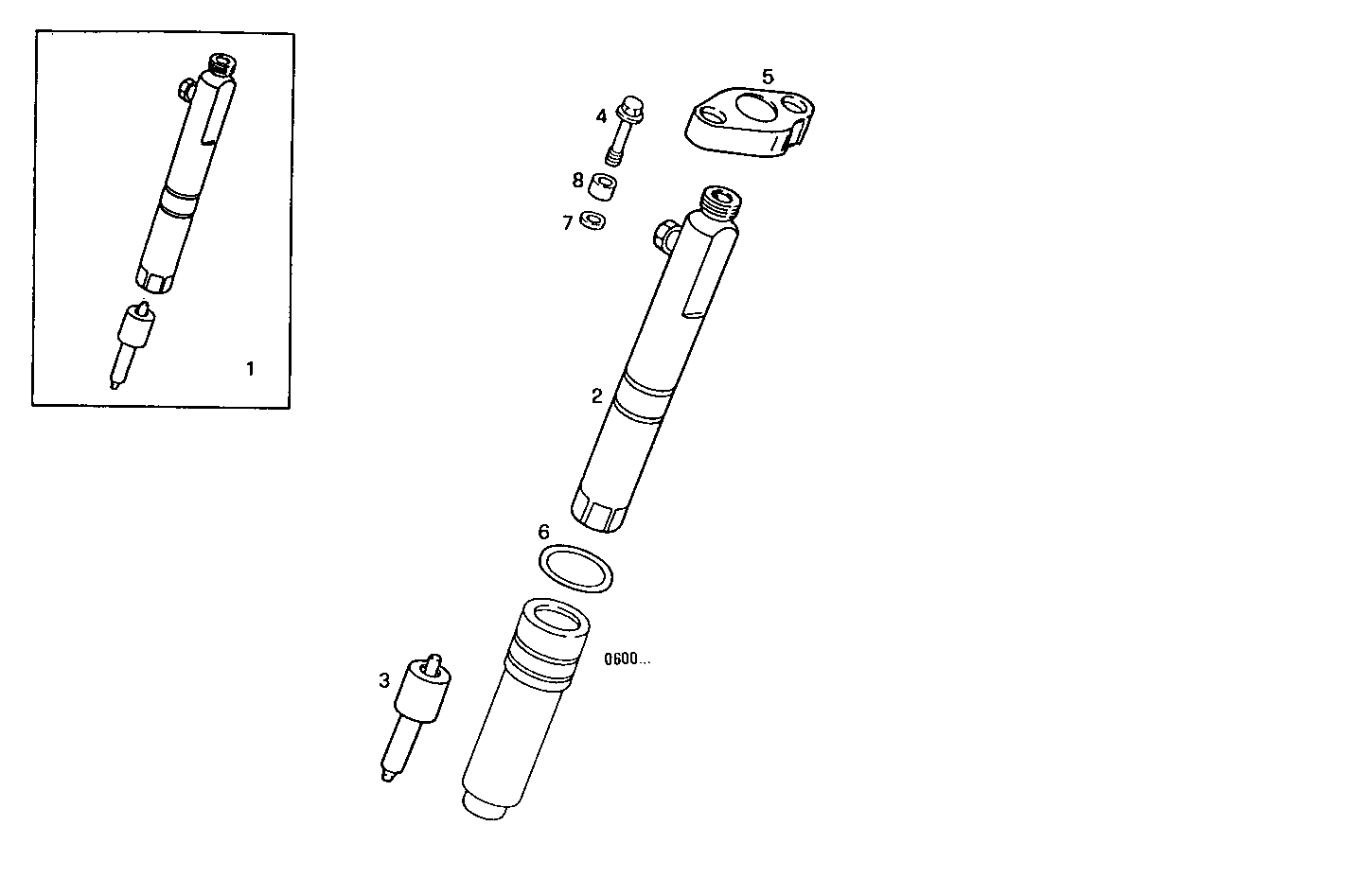

1420.106 INJECTORS
Item | Part number | Description |
---|---|---|
1 | 8017978 | NOZZLE ASSY STANADYNE |
2 | 8017980 | NOZZLE HOLDER ASSY |
3 | 8017979 | FUEL NOZZLE |
4 | 8023383 | SCREW M10X45 |
5 | 4780612 | FASTENING BRACKET |
6 | 17278581 | O-RING Ø18,77 MM SP=1,78 MM |
7 | 771326 | WASHER Ø11,5 MM |
8 | 17816214 | SPACER Ø10X8,5X18 MM |
