8361SRM32.01A550

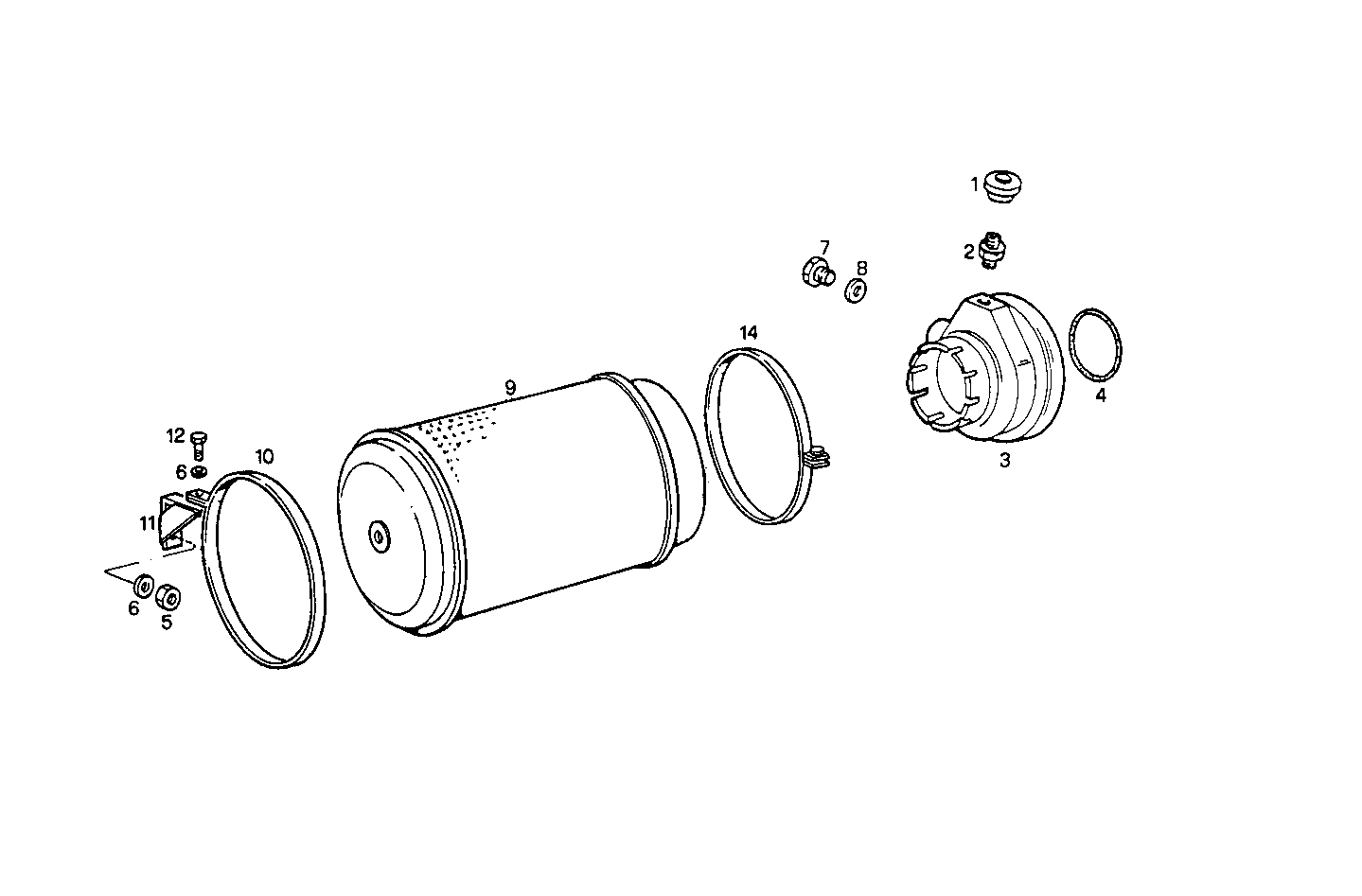

2210.044 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8027423 | CHOCKED FILTER INDIC. |
| 2 | 8009522 | PIPE SOCKET |
| 3 | 8106155 | AIR MANIFOLD |
| 4 | 17285081 | O-RING Ø67,94 MM SP=2,62 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16992240 | THREADED PLUG M12X1,5 |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 8015887 | AIR CLEANER ASSY |
| 10 | 8017225 | CLIP DIA 133 [from ...] |
| 11 | 8018798 | RETAINER [from ...] |
| 12 | 16605724 | SCREW M8X1,25X30 |
| 14 | 17770599 | CLIP DIA 120 |
