8361SRM32.01A550

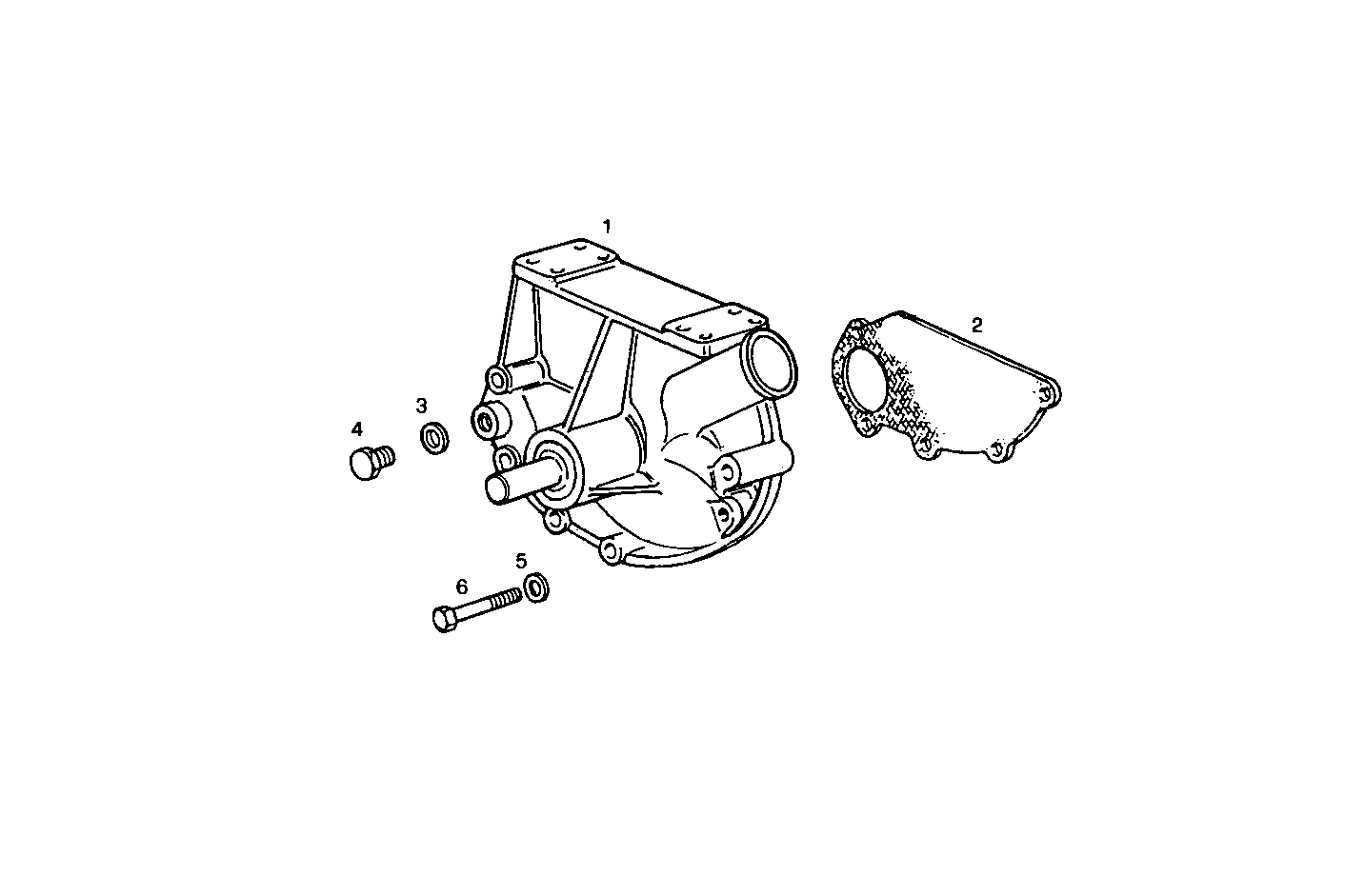

3200.027 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4796537 | WATER PUMP ASSY |
| 2 | 4851437 | FLAT ENGINE GASKET |
| 3 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 4 | 16992411 | THREADED PLUG M16X1,5 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 11343721 | HEXAGON BOLT M10X65 MM |
