8361SRM32.01A550

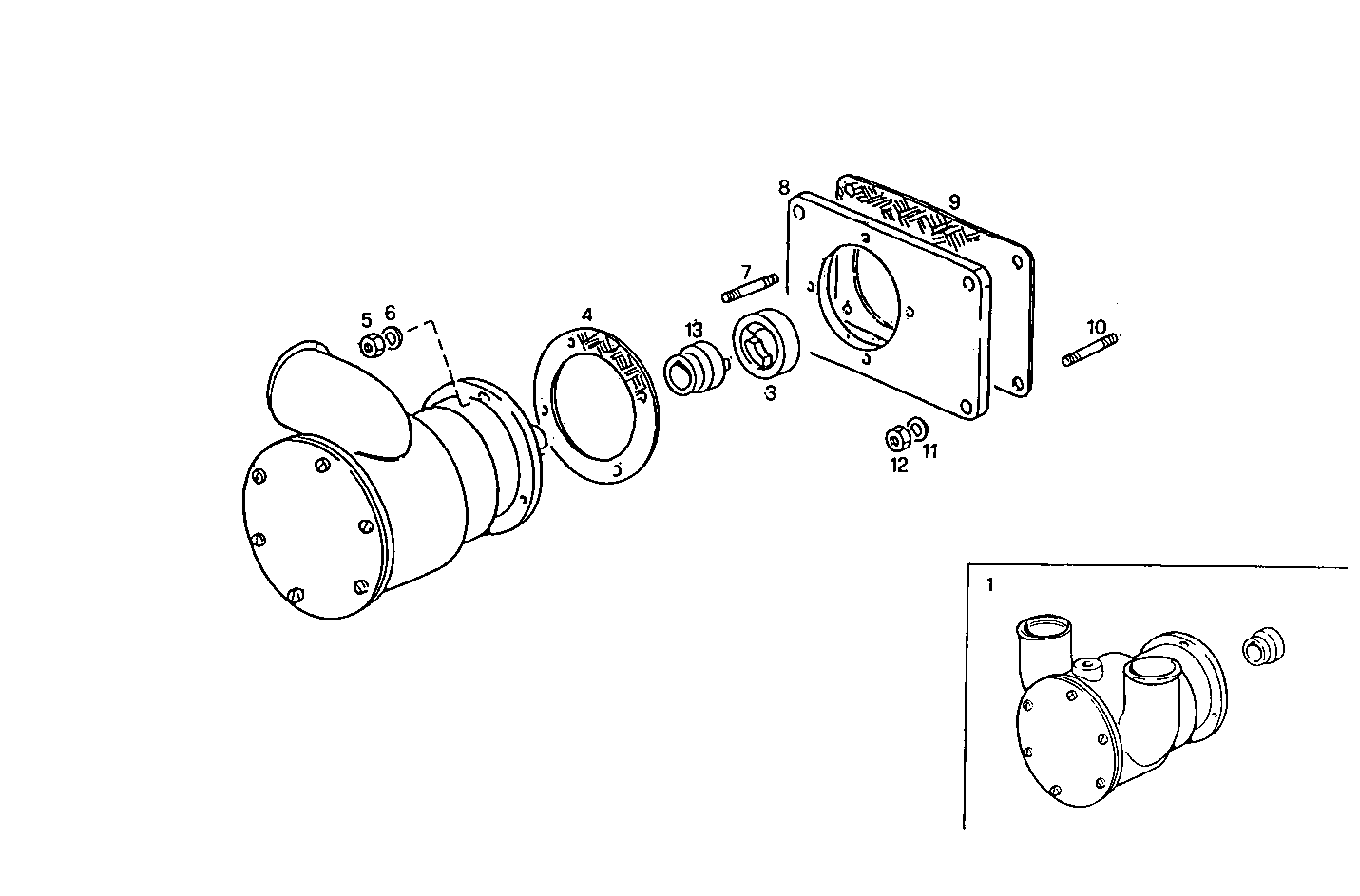

3380.004/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8110564 | SEA WATER PUMP ASSY JABSCO |
| 3 | 4621358 | RING |
| 4 | 8008734 | GASKET |
| 5 | 17037934 | NUT |
| 6 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 7 | 16729424 | STUD M8X1,25X25 |
| 8 | 8105714 | COVER |
| 9 | 4850986 | FLAT ENGINE GASKET |
| 10 | 16744924 | STUD M6X12X16 |
| 11 | 17088474 | WASHER Ø6X12 MM |
| 12 | 17037821 | HEXAGON NUT M6X1 |
| 13 | 4934315 | COUPLER |
