8361SRM32.40

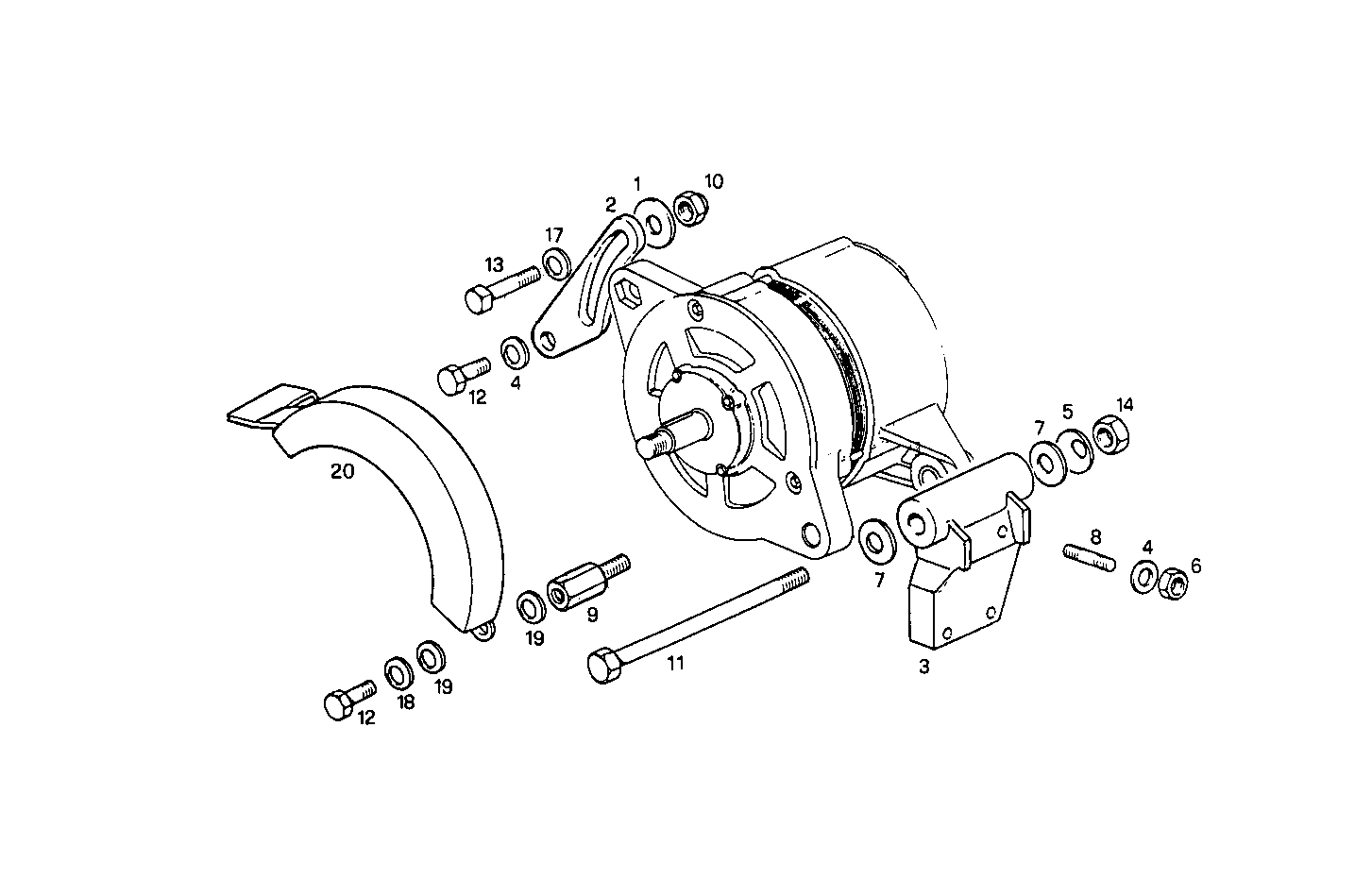

4010.010 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4513436 SUPPORT RING Ø10X21X2 MM
2 4712521 BELT TENSIONER
3 8105500 SUPPORT
4 11198379 SPRING WASHER Ø10X20 MM SP=2,6
5 11198679 SPRING WASHER Ø13 MM
6 12164711 HEXAGON NUT M10X1,25
7 12646901 WASHER Ø12X28 MM
8 13546421 STUD M10X1,25X48 MM
9 8005194 SPACING BAR
10 14048717 NUT M10X1,25
11 15541921 HEXAGON BOLT M12X1,25X130 MM
12 15004021 HEXAGON BOLT M10X1,25X25 MM
13 11234721 HEXAGON BOLT M10X1,25X45 MM
14 16101511 HEXAGON NUT M12X1,25
17 12626001 WASHER Ø10X21X2 MM
18 11190579 SPRING WASHER Ø10X20 MM SP=2,3
19 12626201 WASHER Ø10,25X3 MM
20 8113839 PROTECTION
