8361SRM32.40

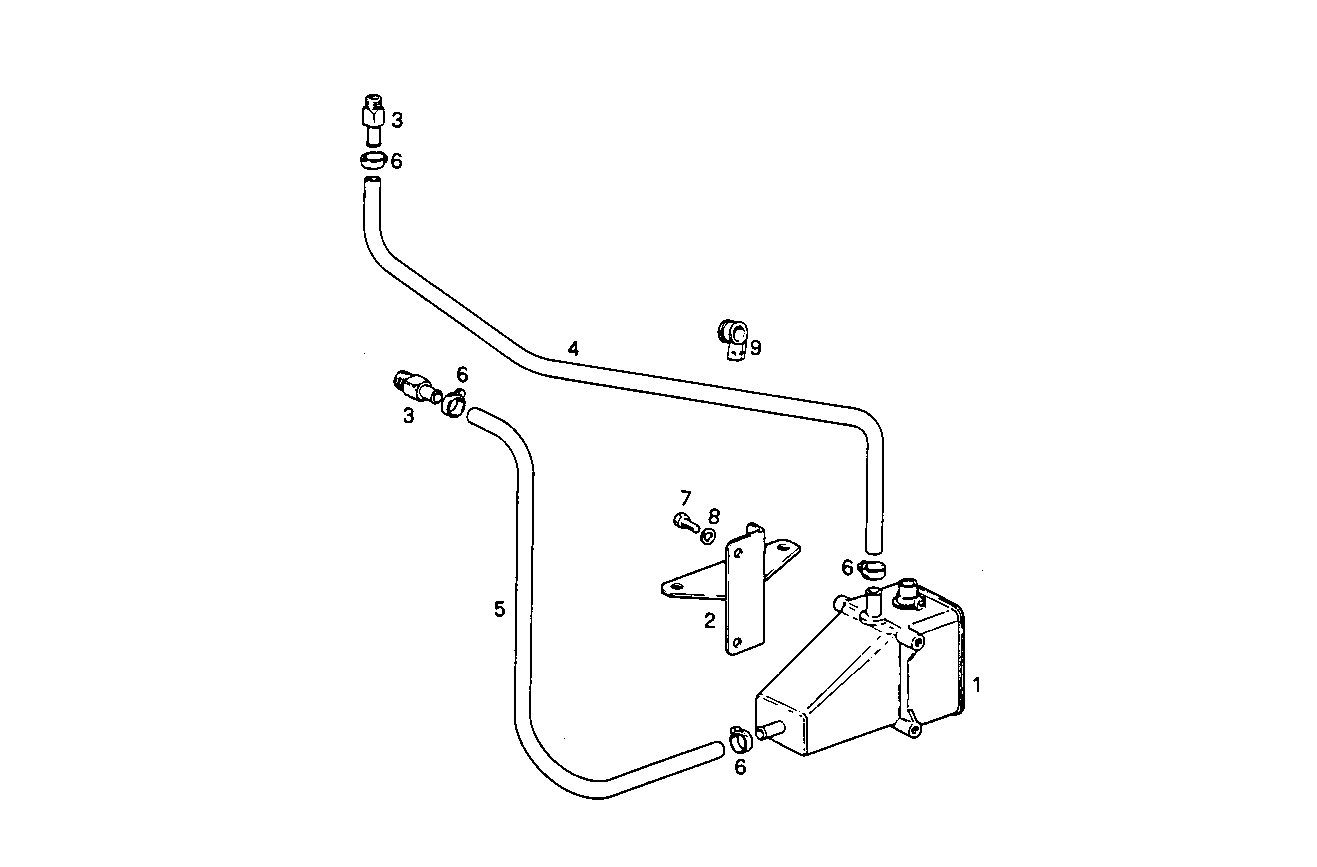

A20040019 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8006935 | HEATER |
| 2 | 8006951 | RETAINER |
| 3 | 8113848 | PIPE SOCKET |
| 4 | 8007915 | WATER HOSE |
| 5 | 8112187 | WATER PIPE |
| 6 | 17764491 | CLIP Ø16/25 MM |
| 7 | 10902121 | HEXAGON BOLT M6X14 MM |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 10441690 | PIPE CLIP Ø18 MM |
