8361SRM38.10

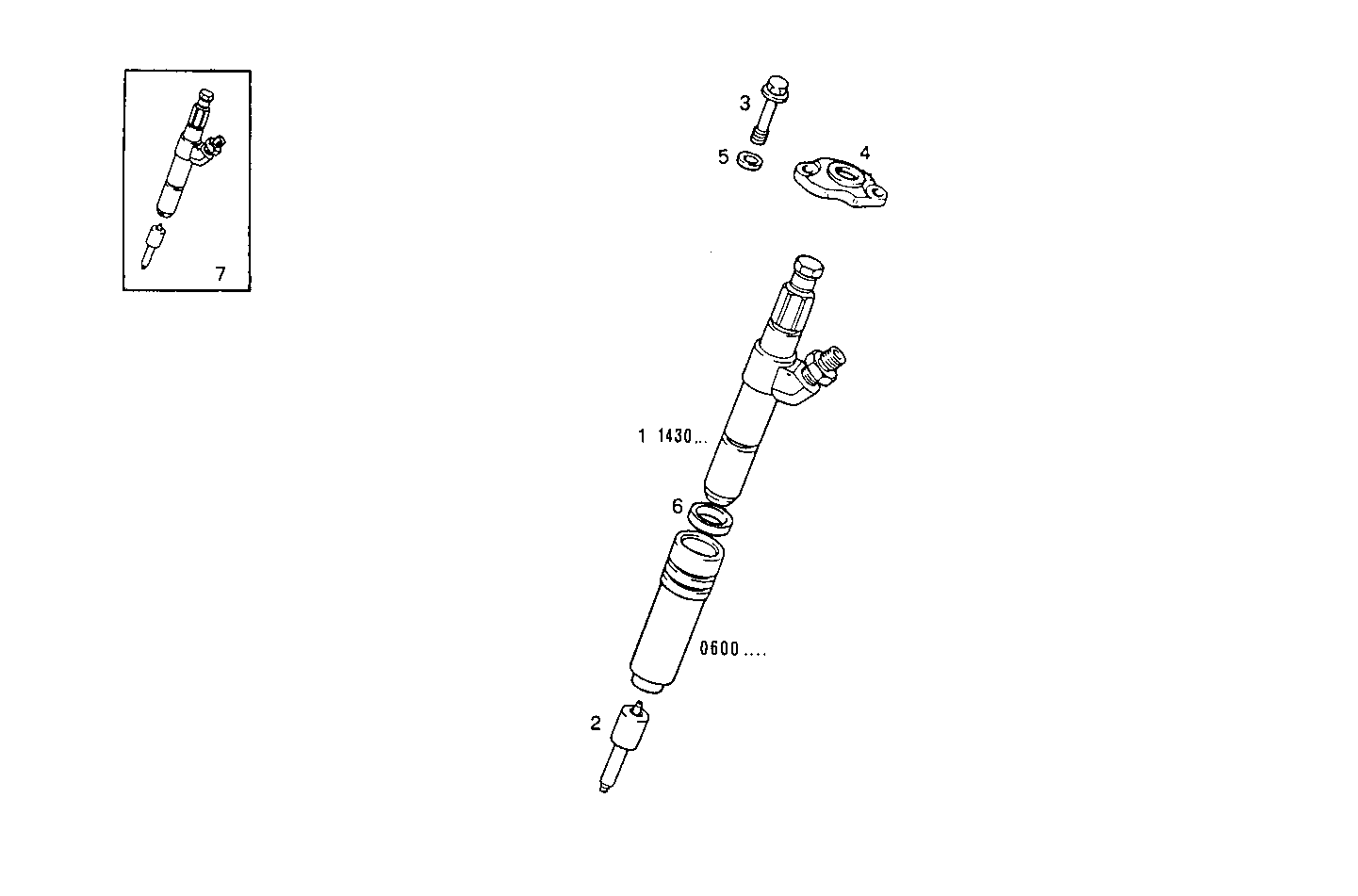

1420.033 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 1907677 | NOZZLE HOLDER |
| 2 | 4750416 | FUEL NOZZLE |
| 3 | 8023383 | SCREW M10X45 |
| 4 | 4795296 | FASTENING BRACKET |
| 5 | 771326 | WASHER Ø11,5 MM |
| 6 | 767111 | WASHER |
| 7 | 8110854 | NOZZLE ASSY BOSCH |
