8361SRM38.10

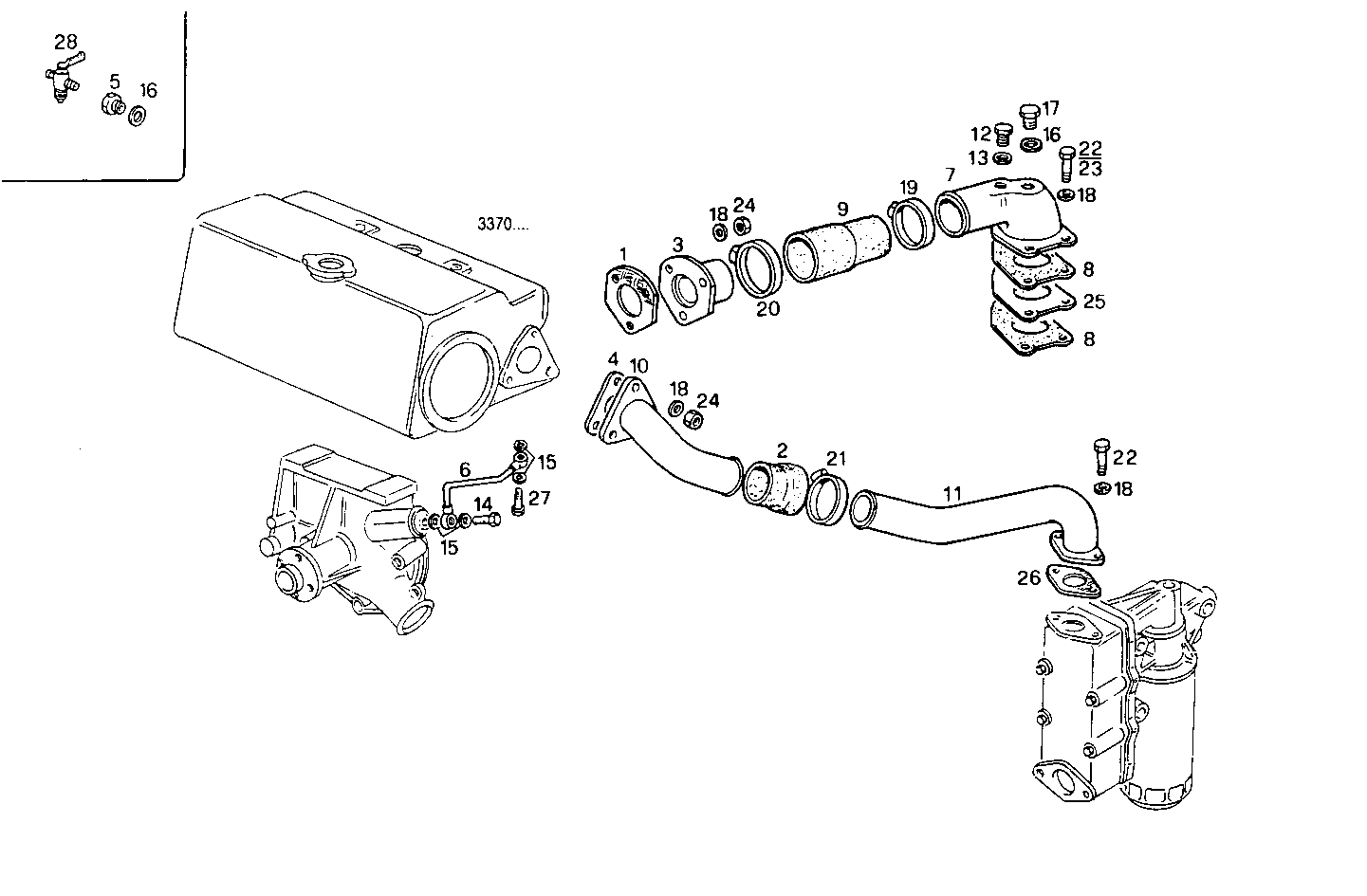

3210.048/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8013464 GASKET
2 98432897 WATER HOSE
3 4918819 WATER PIPE
4 8009905 GASKET
5 8103321 PIPE SOCKET
6 8010758 WATER PIPE
7 8103967 WATER PIPE
8 8009915 GASKET
9 8110485 RUBBER SLEEVE
10 4934309 WATER PIPE
11 8105499 WATER PIPE
12 16992411 THREADED PLUG M16X1,5
13 4858609 WASHER Ø16X22 MM SP=1,5 MM
14 4864082 BANJO BOLT M12X1,5X25 MM
15 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 4858608 SEAL GASKET dia.14x19,5x1,5
17 16992440 THREADED PLUG M16X1,5
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 17765093 CLIP Ø60/80 MM
20 17765193 CLIP Ø70/90 MM
21 17764993 CLIP Ø50/70 MM
22 16605624 HEXAGON BOLT M8X25 MM (8.8)
23 16606424 HEXAGON BOLT M8X65 MM
24 17037931 HEXAGON NUT M8X1,25
25 8010397 SPACING BAR
26 98412396 GASKET
27 8009696 SCREW CONNECTOR M12X1,5X25
28 8113445 DRAIN COCK
