8361SRM38.10

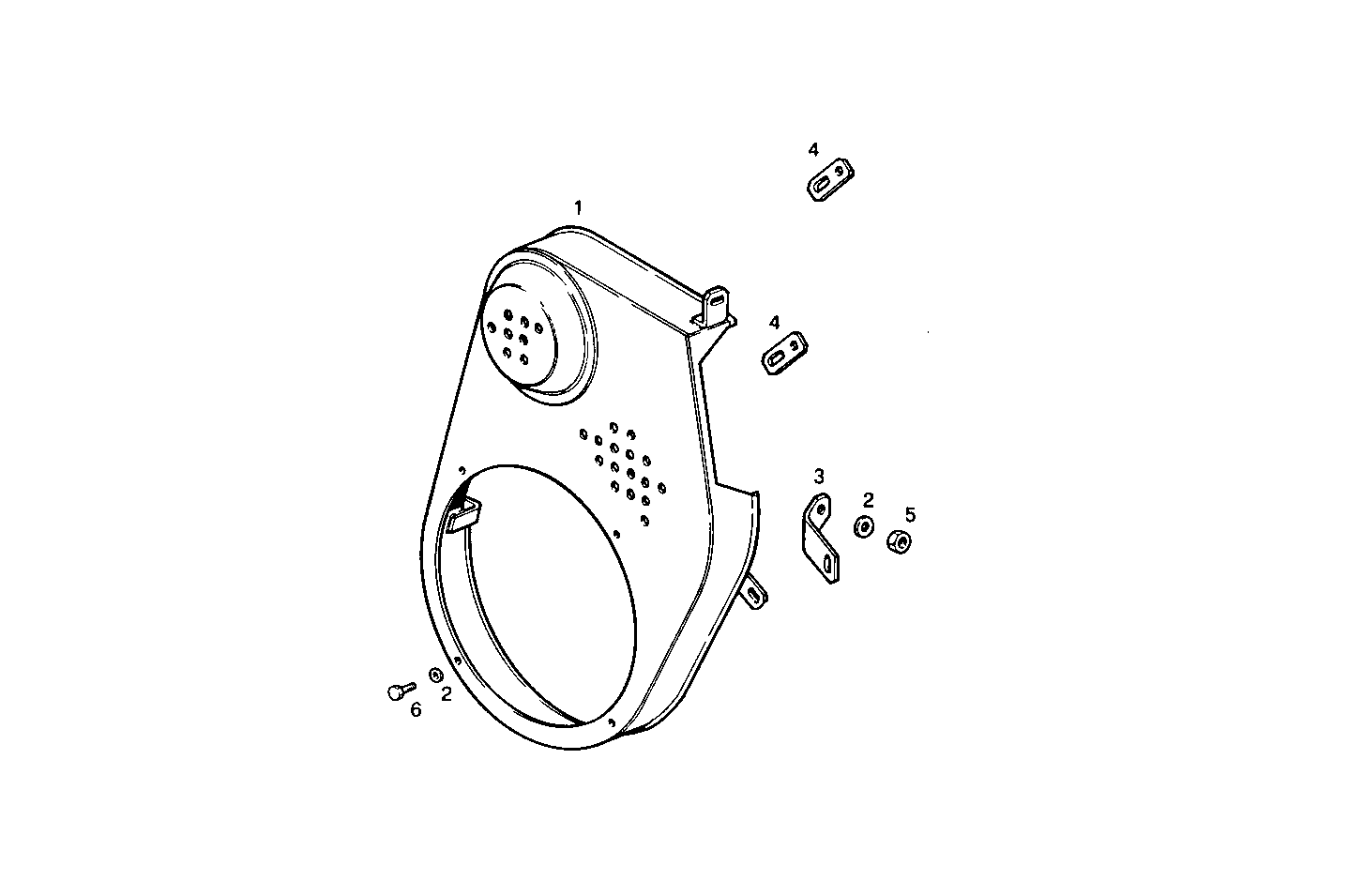

A48020003 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 4936806 | PROTECTION |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 4936809 | RETAINER |
| 4 | 4936808 | RETAINER |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
