8361SRM38.11

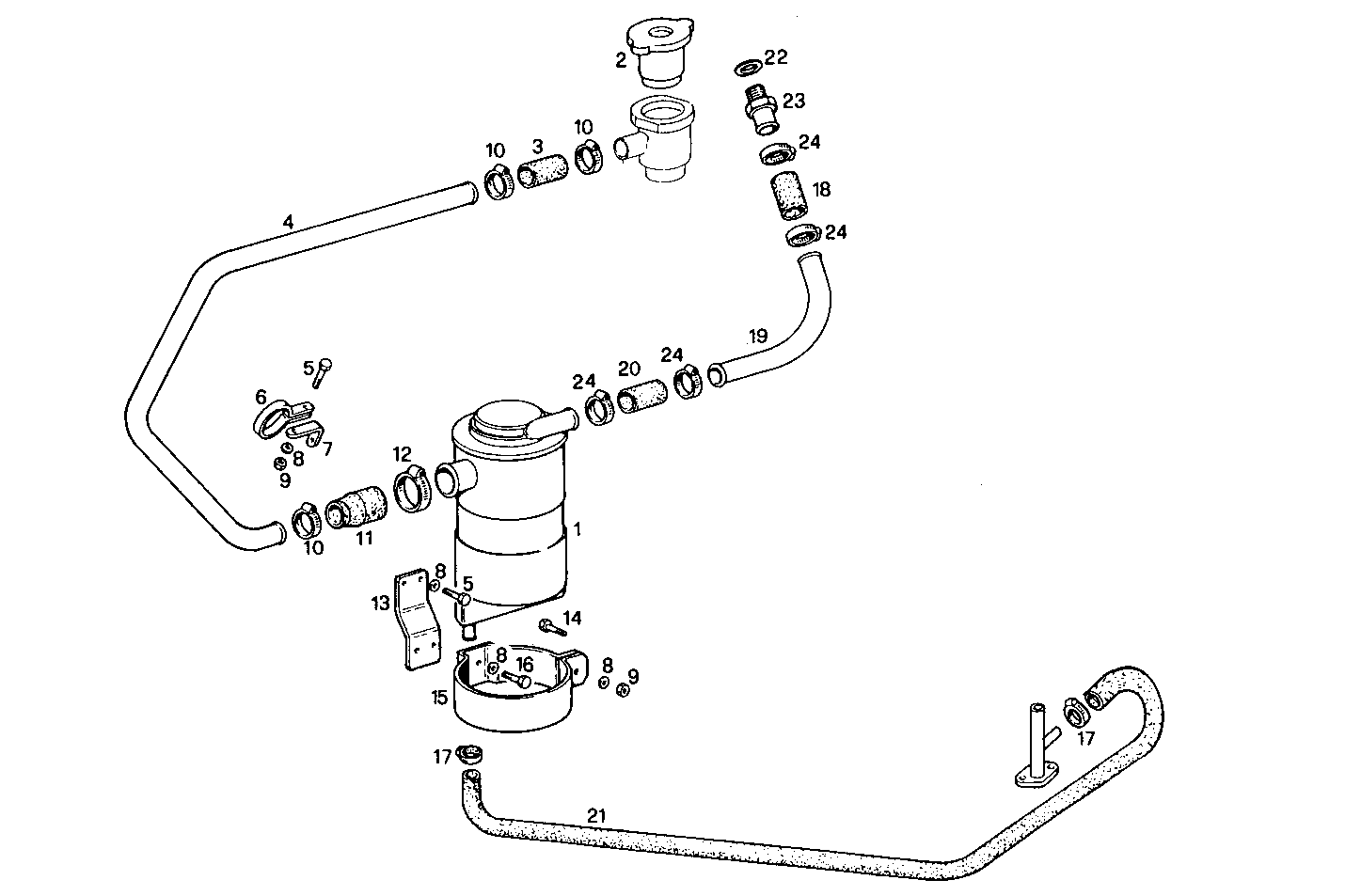

0450.044 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 7303441 | BREATHER [up to 03-97] |
2 | 8823136 | LOCK PLUG |
3 | 17740287 | RUBBER SLEEVE |
4 | 8012709 | BREATHER PIPE |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 4760226 | FASTENING BRACKET |
7 | 8113297 | RETAINER |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
10 | 17764693 | CLIP Ø25/40 MM |
11 | 61319110 | RUBBER SLEEVE |
12 | 17764793 | CLIP Ø32/50 MM |
13 | 8012693 | PLATE |
14 | 16605734 | HEXAGON BOLT M8X30 MM |
15 | 4860370 | SUPPORT [up to 03-97] |
16 | 16605424 | SCREW M8X16 MM (8.8) |
17 | 18088392 | CLIP Ø16/25 MM |
18 | 8013466 | WATER HOSE [up to 03-97] |
19 | 8012713 | BREATHER PIPE |
20 | 17737687 | WATER HOSE |
21 | 8012952 | AIR HOSE |
22 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
23 | 8012720 | PIPE SOCKET |
24 | 17764593 | CLIP Ø20/32 MM |
