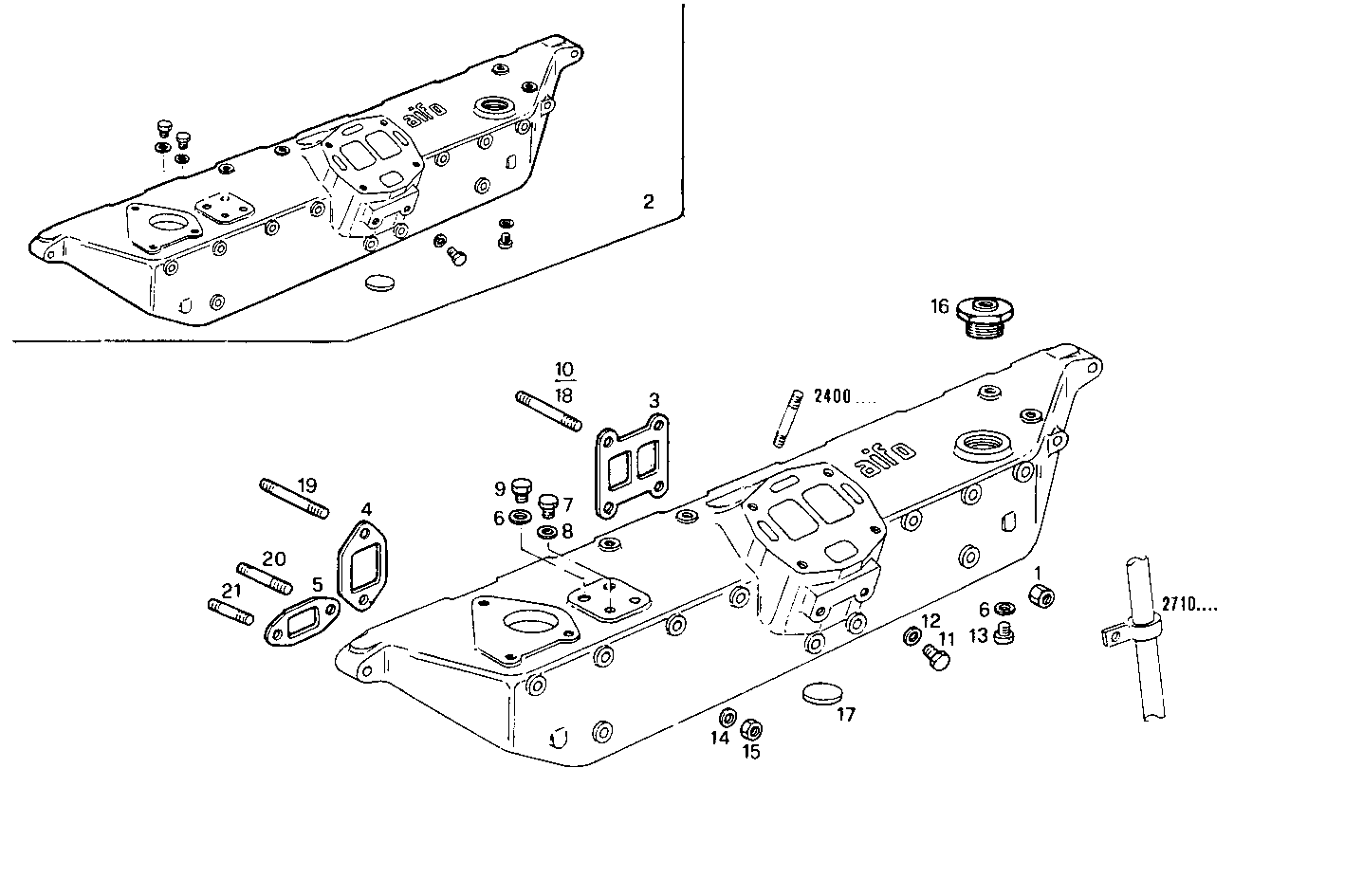

0760.043 EXHAUST MANIFOLD

Iveco/FPT EXHAUST MANIFOLD

Item Part number Description
1 4934617 NUT
2 8110178 COOLED EXHAUST MANIF. ASSY
3 4818721 EXH. MANIFOLD GKT
4 4818722 EXH. MANIFOLD GKT
5 8009913 GASKET
6 4858609 WASHER Ø16X22 MM SP=1,5 MM
7 10300611 LOCK PLUG M14X1,5
8 16508160 WASHER Ø14X18 MM
9 10300771 LOCK PLUG M16X1,5
10 13449721 STUD M10X15X30
11 10300511 LOCK PLUG M12X1,5
12 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
13 16992411 THREADED PLUG M16X1,5
14 17090174 SPRING WASHER Ø10X20 MM
15 17038221 HEXAGON NUT M10
16 8010960 PLUG
17 16991170 LOCK PLUG Ø36 MM
18 13953821 STUD M10X15X120
19 13953221 STUD M10X1,5X90
20 13450121 STUD M10X15X50
