8361SRM38.11

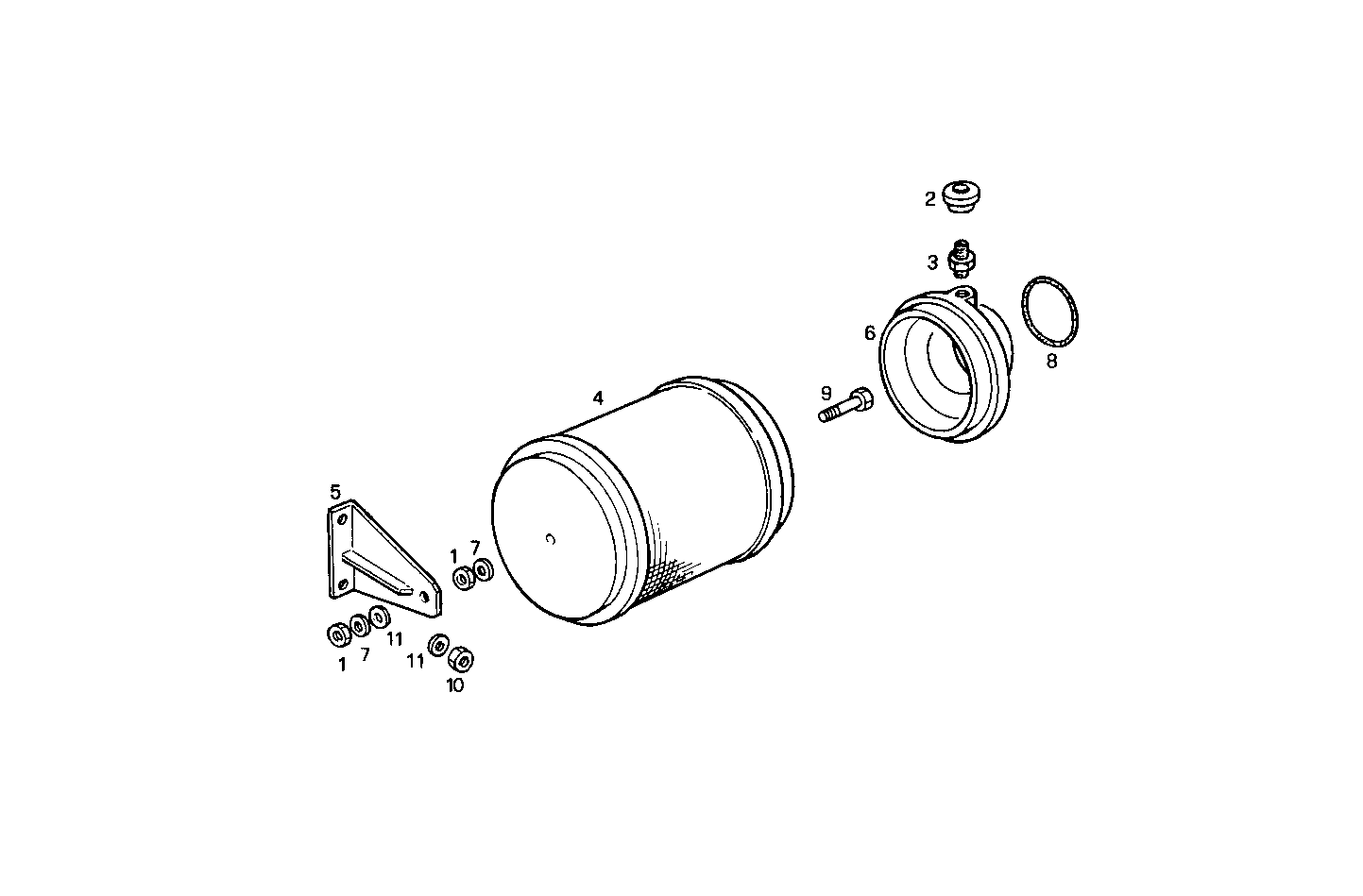

2210.011 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 17038221 | HEXAGON NUT M10 |
| 2 | 2427063 | AIR PRESSURE GAUGE |
| 3 | 8009522 | PIPE SOCKET |
| 4 | 8111553 | AIR CLEANER ASSY |
| 5 | 8111029 | RETAINER |
| 6 | 8012717 | RETAINER |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17285081 | O-RING Ø67,94 MM SP=2,62 MM |
| 9 | 11306921 | SCREW M10X1,25X30 |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
