8361SRM40.01

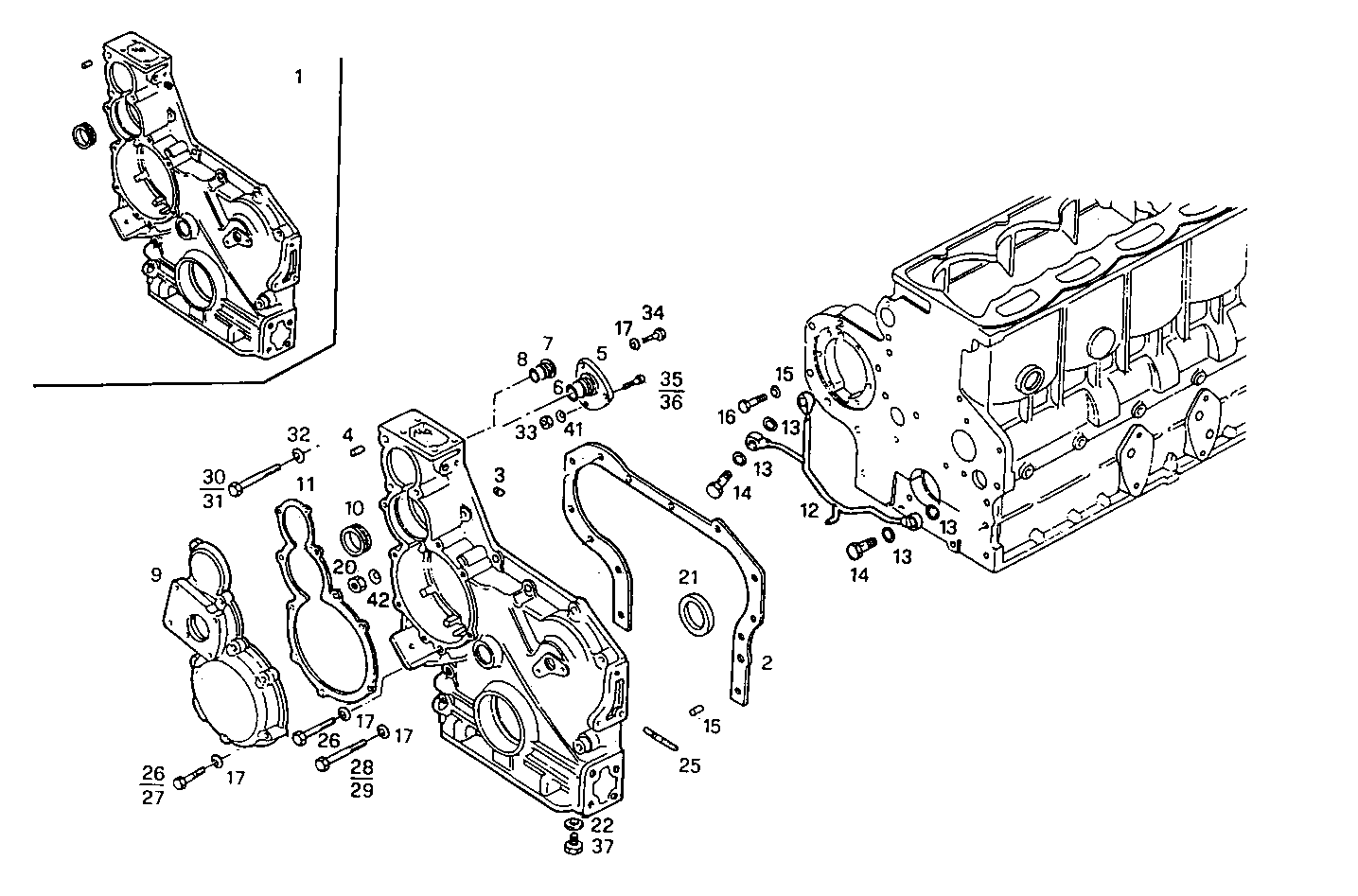

0430.099 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4717884 FRONT C.CASE COVER ASSY
2 98411985 FLAT ENGINE GASKET
3 4560434 PLUG
4 4708557 DOWEL PIN
5 4738944 COVER
6 17284681 O-RING Ø61,6 MM SP=2,62 MM
7 4718902 PLUG
8 14458281 O-RING Ø2,62X31,42 MM
9 4732679 COVER
10 4708220 BUSH
11 98411987 GASKET
12 4713668 OIL LINE
13 10279460 SEAL GASKET Ø10X16 MM SP=0,5
14 4864080 SCREW CONNECTOR M10X1,25
15 11197770 SPRING WASHER Ø6,4 MM
16 10902621 SCREW M6X25 MM
17 11193879 SPRING WASHER Ø8X16 MM
20 15896211 HEXAGON NUT M6
21 40101390 SHAFT SEAL
22 10279560 SEAL GASKET Ø22,2 MM
25 13546424 STUD M10X1,25X48
26 16044021 HEXAGON BOLT M8X1,25X40 MM
27 16044221 HEXAGON BOLT M8X50 MM
28 16044321 HEXAGON BOLT M8X1,25X55 MM
29 16046021 HEXAGON BOLT M8X140 MM
30 15971521 HEXAGON BOLT M10X85 MM
31 15971721 SCREW M10X1,25X95
32 17090274 WASHER Ø10X20 MM
33 17038221 HEXAGON NUT M10
34 16043821 HEXAGON BOLT M8X30 MM
35 15971821 SCREW M10X1,25X100
36 15972021 HEXAGON BOLT M10X1,25X110 MM
37 10275040 LOCK PLUG M22X1,5
38 8018009 COVER
39 16605424 SCREW M8X16 MM (8.8)
41 11198371 SPRING WASHER Ø10X20 MM
42 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
