8361SRM40.01

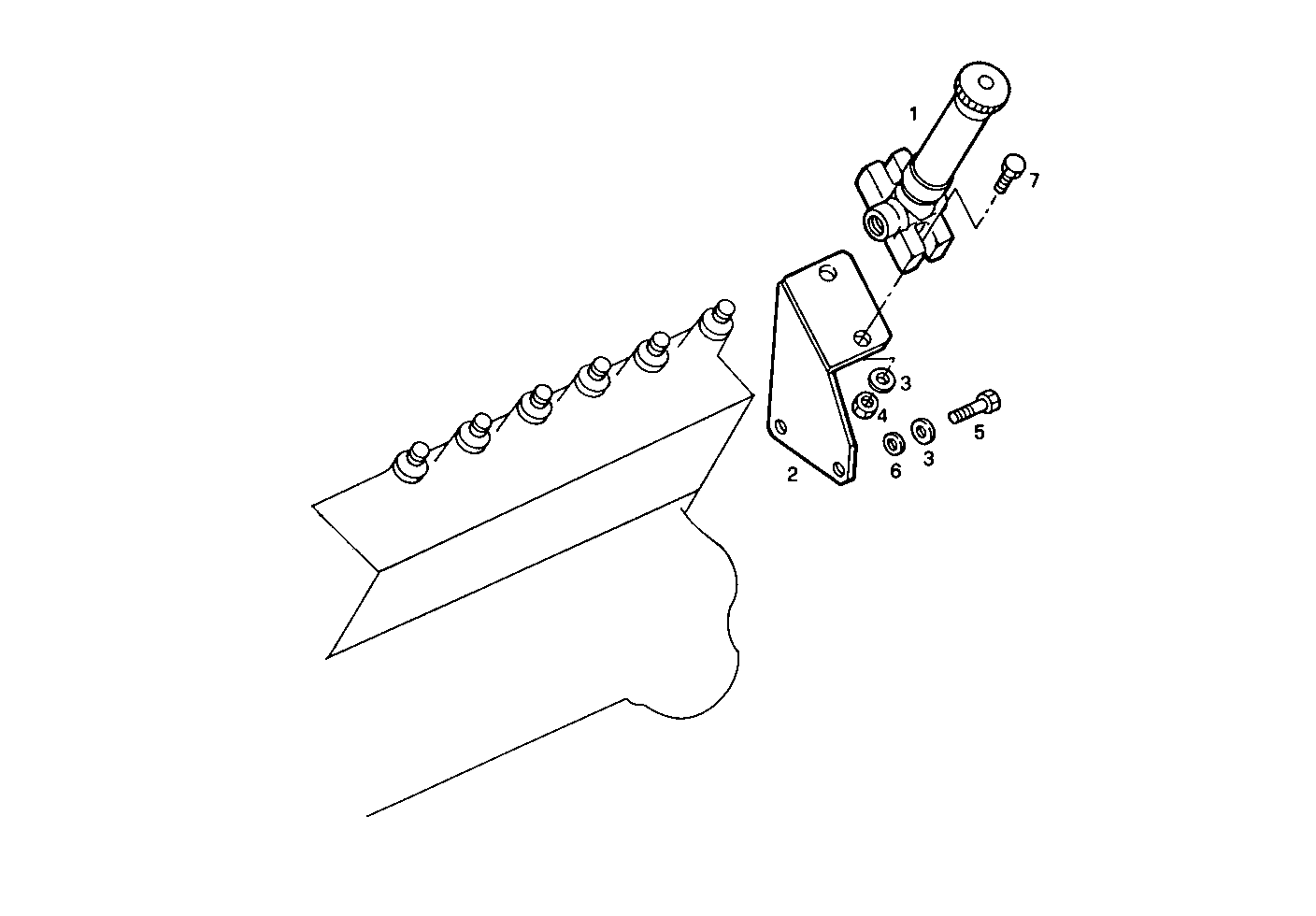

2010.008 FUEL PUMP

Iveco/FPT FUEL PUMP

Item Part number Description
1 4797319 HAND PUMP ASSY
2 8008770 RETAINER
3 17088474 WASHER Ø6X12 MM
4 17037821 HEXAGON NUT M6X1
5 10902121 HEXAGON BOLT M6X14 MM
6 12643701 WASHER Ø6X18 MM
7 16603924 HEXAGON BOLT M6X30 MM
