8361SRM40.01

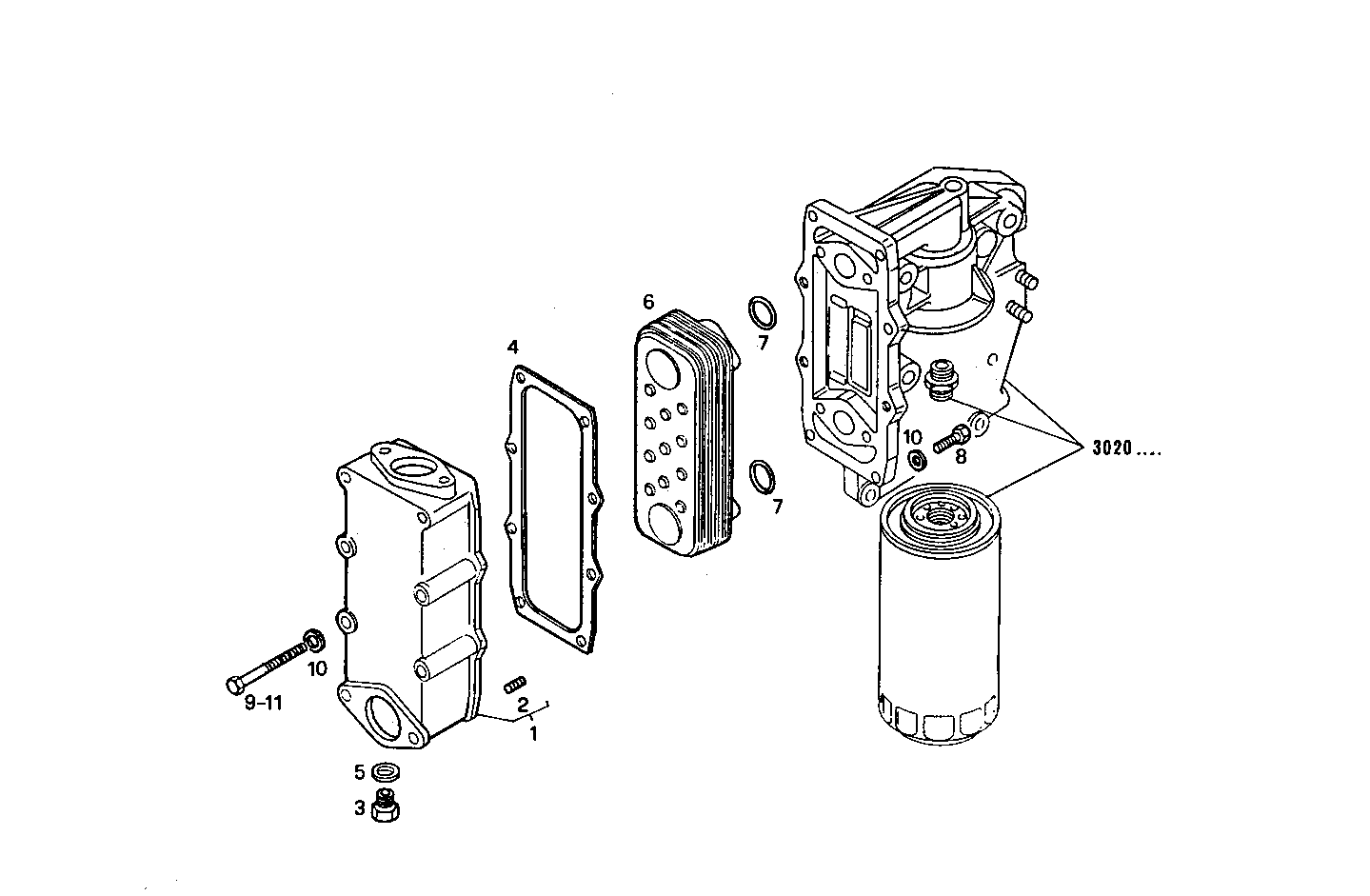

3100.024 OIL - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 8010943 | SUPPORT ASSY |
2 | 17873271 | THREADED INSERT M8 |
3 | 4595833 | THREADED PLUG M20X1,5 |
4 | 4795338 | GASKET |
5 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
6 | 61319975 | OIL COOLER |
7 | 17283581 | O-RING Ø44,12 MM SP=2,62 MM |
8 | 16605824 | HEXAGON BOLT M8X35 MM |
9 | 16045824 | SCREW M8X130 |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 | 16046221 | HEXAGON BOLT M8X1,25X150 MM |
