8361SRM40.01

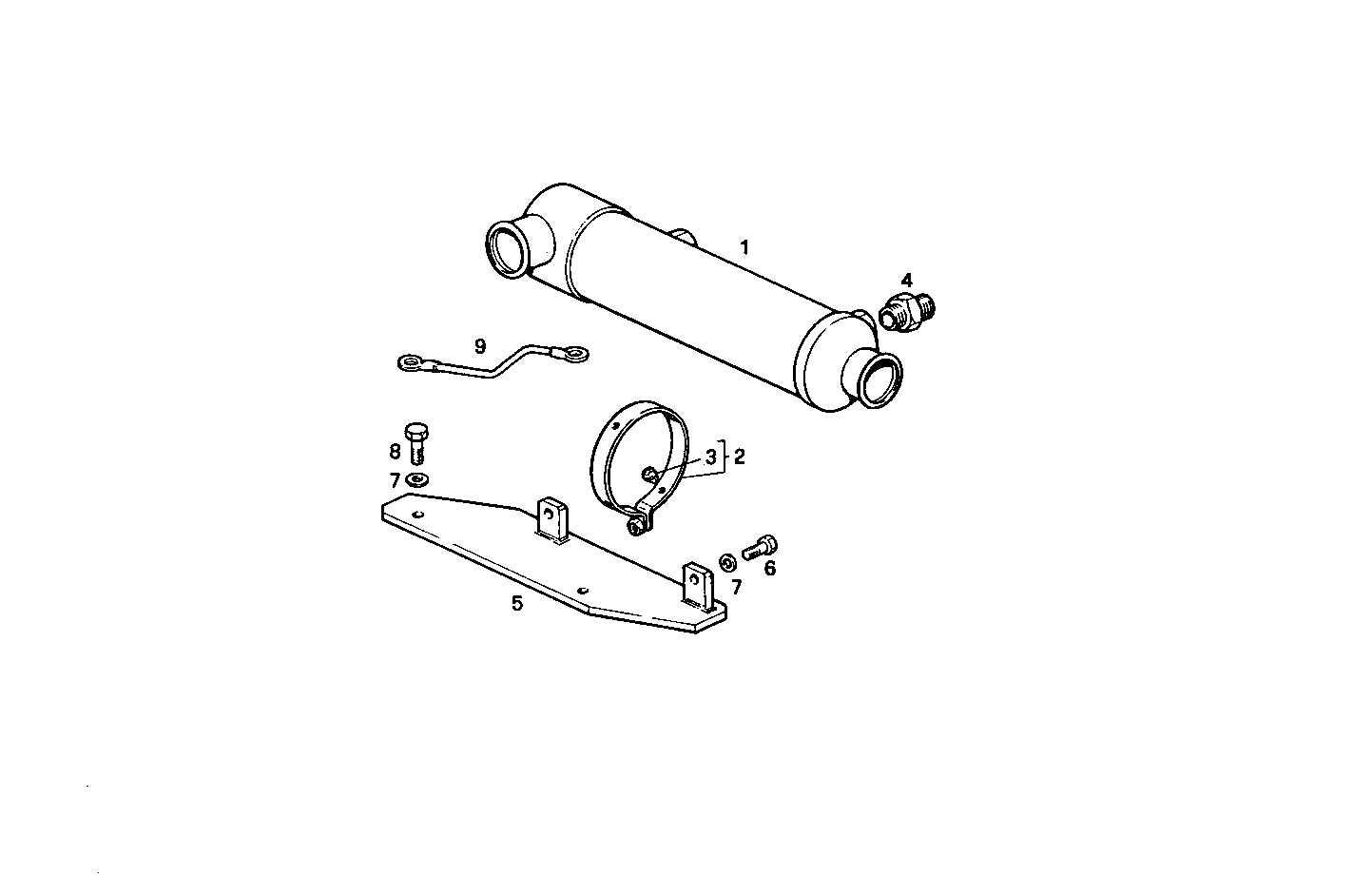

3350.003 REVERSER WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8109142 | MARINE GEAR OIL HEAT EXCH ASSY |
| 2 | 8111020 | CLAMP |
| 3 | 4568427 | RUBBER PAD |
| 4 | 4932262 | PIPE SOCKET |
| 5 | 8014432 | RETAINER |
| 6 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 11306921 | SCREW M10X1,25X30 |
| 9 | 8016516 | EARTH WIRE GND |
