8361SRM40.01

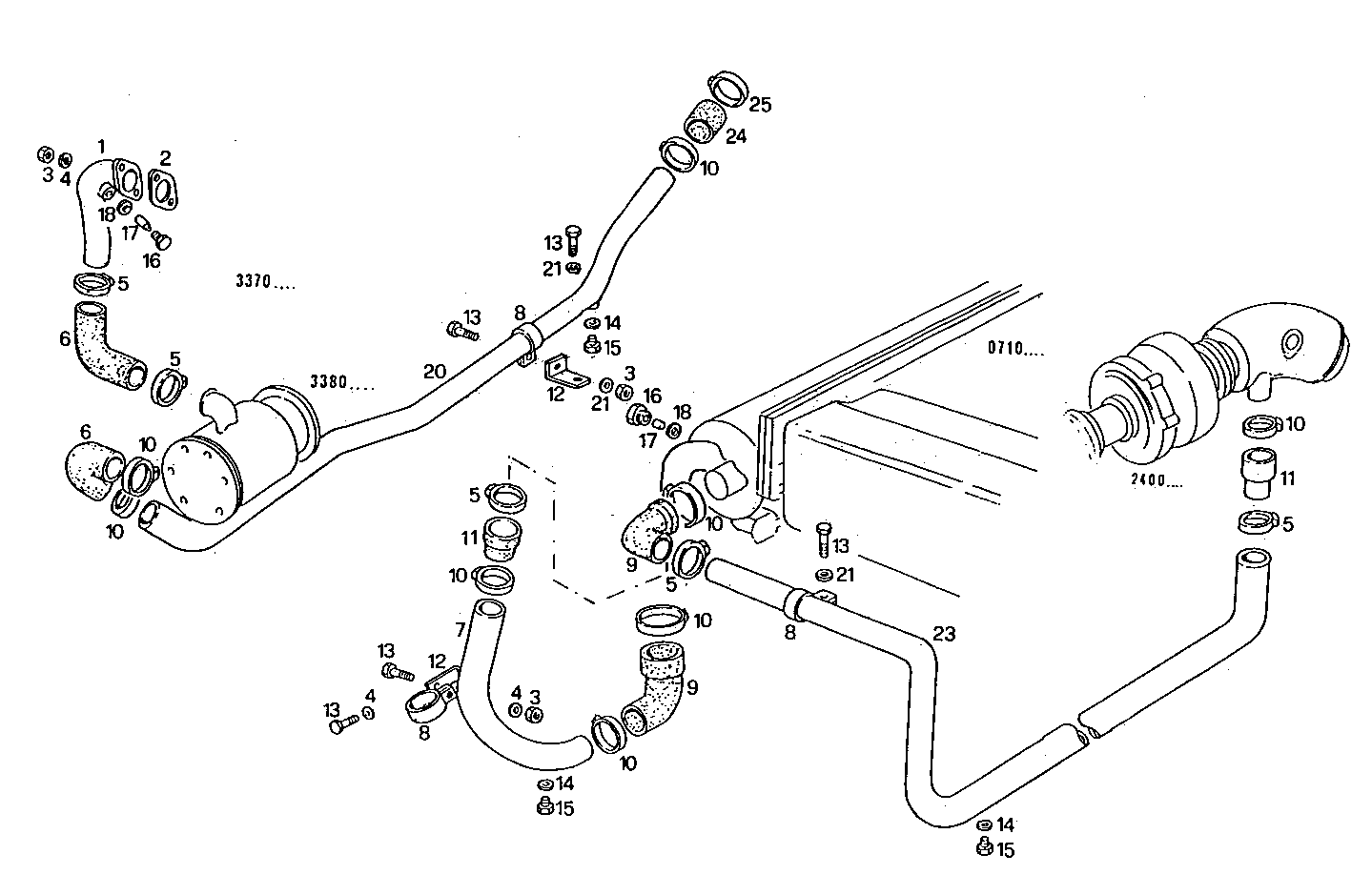

3390.025 SEA WATER LINES
Item | Part number | Description |
---|---|---|
1 | 8013360 | WATER PIPE |
2 | 8008755 | FLAT ENGINE GASKET |
3 | 17037931 | HEXAGON NUT M8X1,25 |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 17764893 | CLIP Ø40/60 MM |
6 | 8100546 | RUBBER SLEEVE |
7 | 8013361 | WATER PIPE |
8 | 8103077 | CLIP |
9 | 8104316 | WATER HOSE |
10 | 17764793 | CLIP Ø32/50 MM |
11 | 8813238 | WATER HOSE |
12 | 8114208 | RETAINER [up to 09-93] |
13 | 16605524 | HEXAGON BOLT M8X20 MM |
14 | 4858606 | GASKET Ø10X14X1 MM |
15 | 16992140 | PLUG M10X1 |
16 | 8105276 | PLUG M16 |
17 | 8105277 | SACRIFICAL ANODE Ø14 MM |
18 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
20 | 8014810 | WATER PIPE |
23 | 8014762 | WATER PIPE |
24 | 8109863 | RUBBER SLEEVE |
25 | 17764993 | CLIP Ø50/70 MM |
