8361SRM40.01

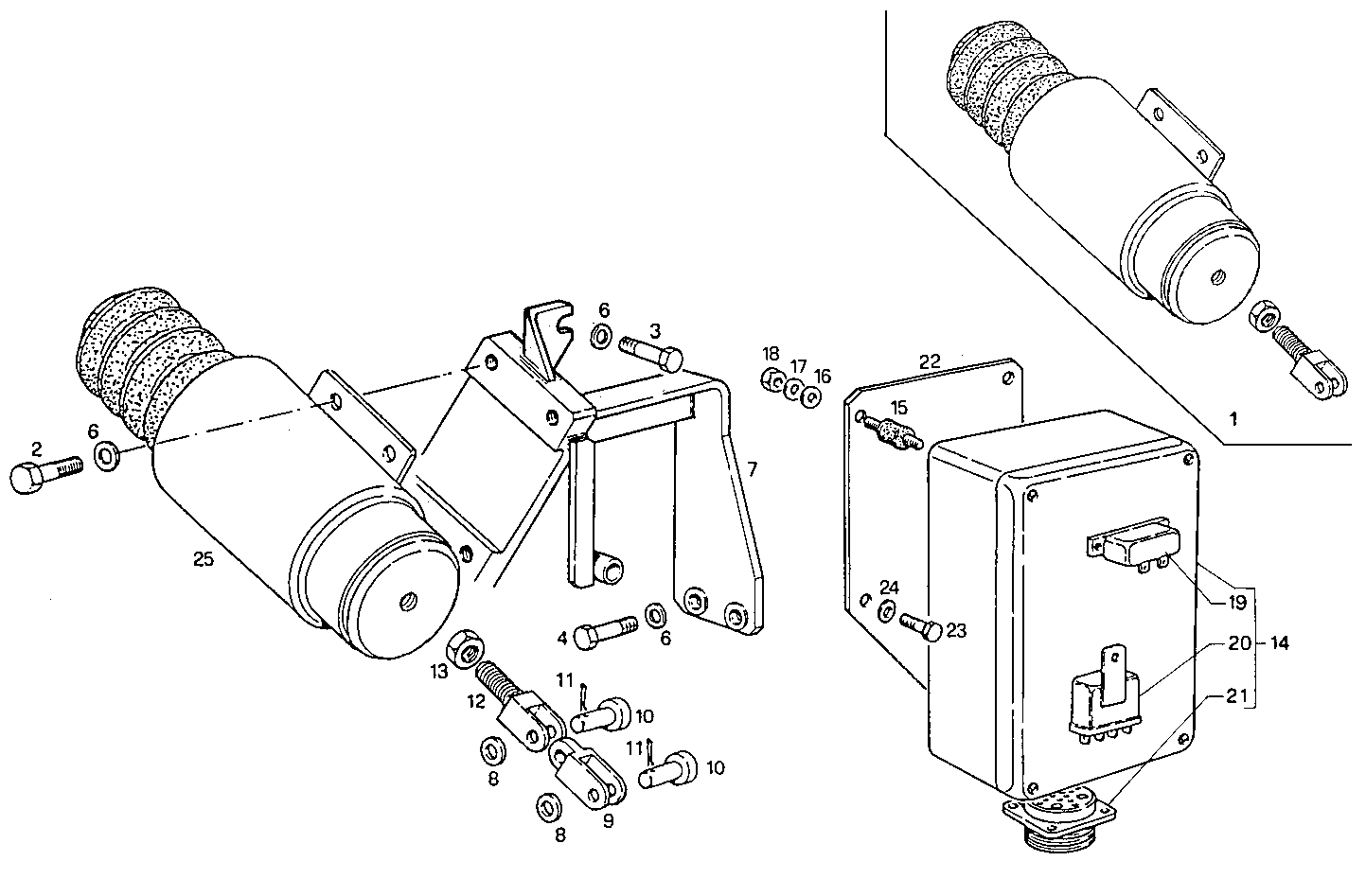

5650.022 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8017620 SOLENOID ASSY
2 16603624 HEXAGON BOLT M6X16 MM (8.8)
3 16689624 HEXAGON BOLT M6X40 MM (8.8)
6 17088474 WASHER Ø6X12 MM
7 8006296 SUPPORT
8 14497801 WASHER Ø5X9,5 MM
9 8108833 CLEVIS
10 17718411 PIN Ø5 MM
11 10734101 SPLIT PIN Ø1,3 MM
12 8109159 CLEVIS M6X40
13 15896211 HEXAGON NUT M6
14 8020687 ENGINE STOP ASSY [from 05-95]
15 4910949 RUBBER LUG
16 14496301 WASHER Ø5,4 MM
17 10615371 WASHER Ø5 MM
18 15896411 HEXAGON NUT M5
19 8109519 RELAY STOP [up to 05-95]
20 8108575 RELAY STARTER [up to 12-90]
21 8113170 CONNECTION ASSY
22 8009460 RETAINER
23 15540521 SCREW M12X1,25X35
24 17091071 SPRING WASHER Ø12X24 SP=2,8 MM
25 8017618 SOLENOID ASSY
