8361SRM40.01

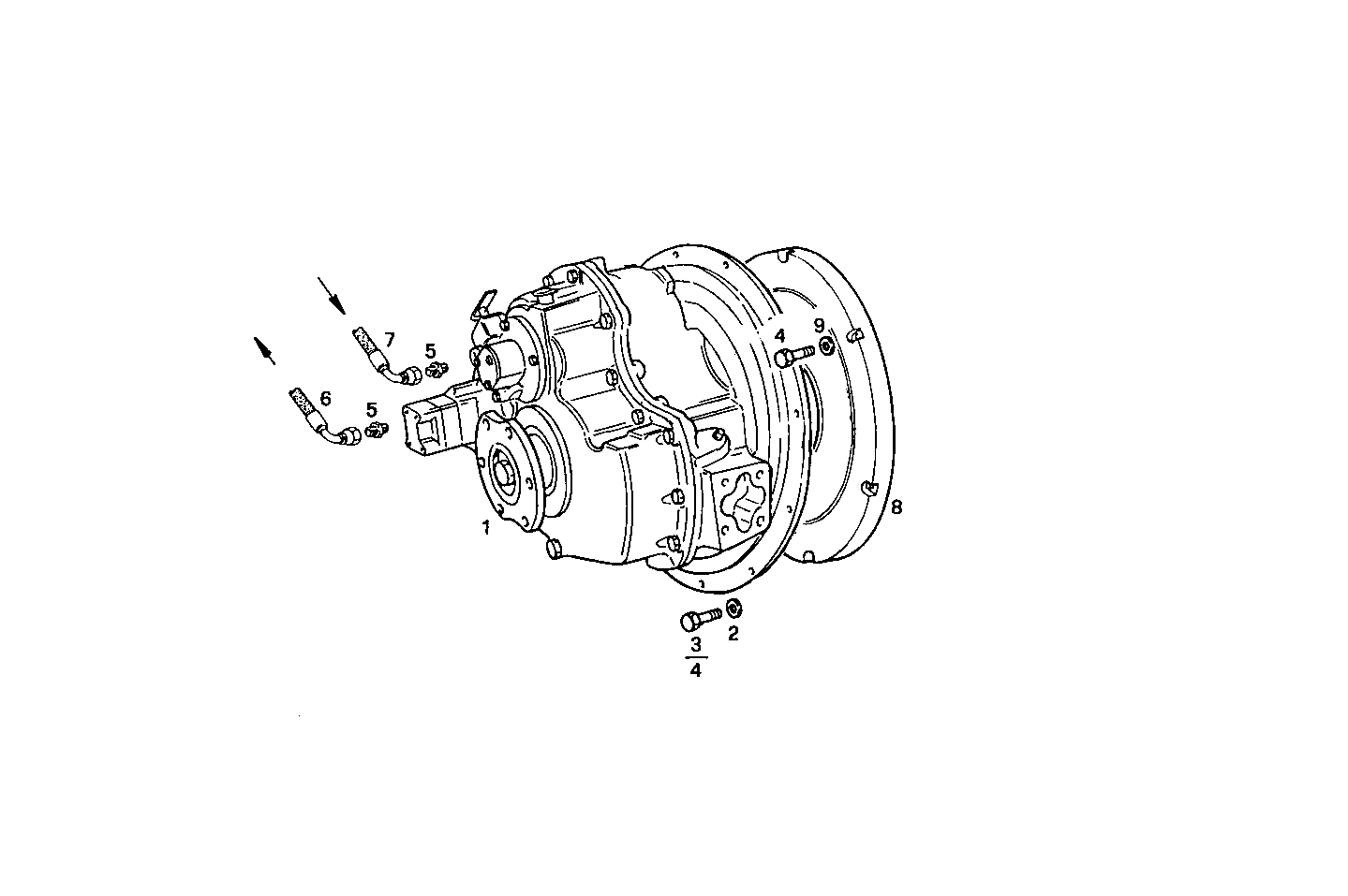

A51300009 MARINE GEAR TWIN DISC MG 507 A-1 - ratio 1.51:1
Item | Part number | Description |
---|---|---|
1 | 8012990 | MARINE GEAR 1,51:1 |
2 | 17090174 | SPRING WASHER Ø10X20 MM |
3 | 11306921 | SCREW M10X1,25X30 |
4 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
5 | 4935465 | PIPE SOCKET |
6 | 8105619 | HOSE |
7 | 8105620 | HOSE |
8 | 8014543 | FLEXIBLE COUPLING |
9 | 14494934 | WASHER |
