8361SRM40.10

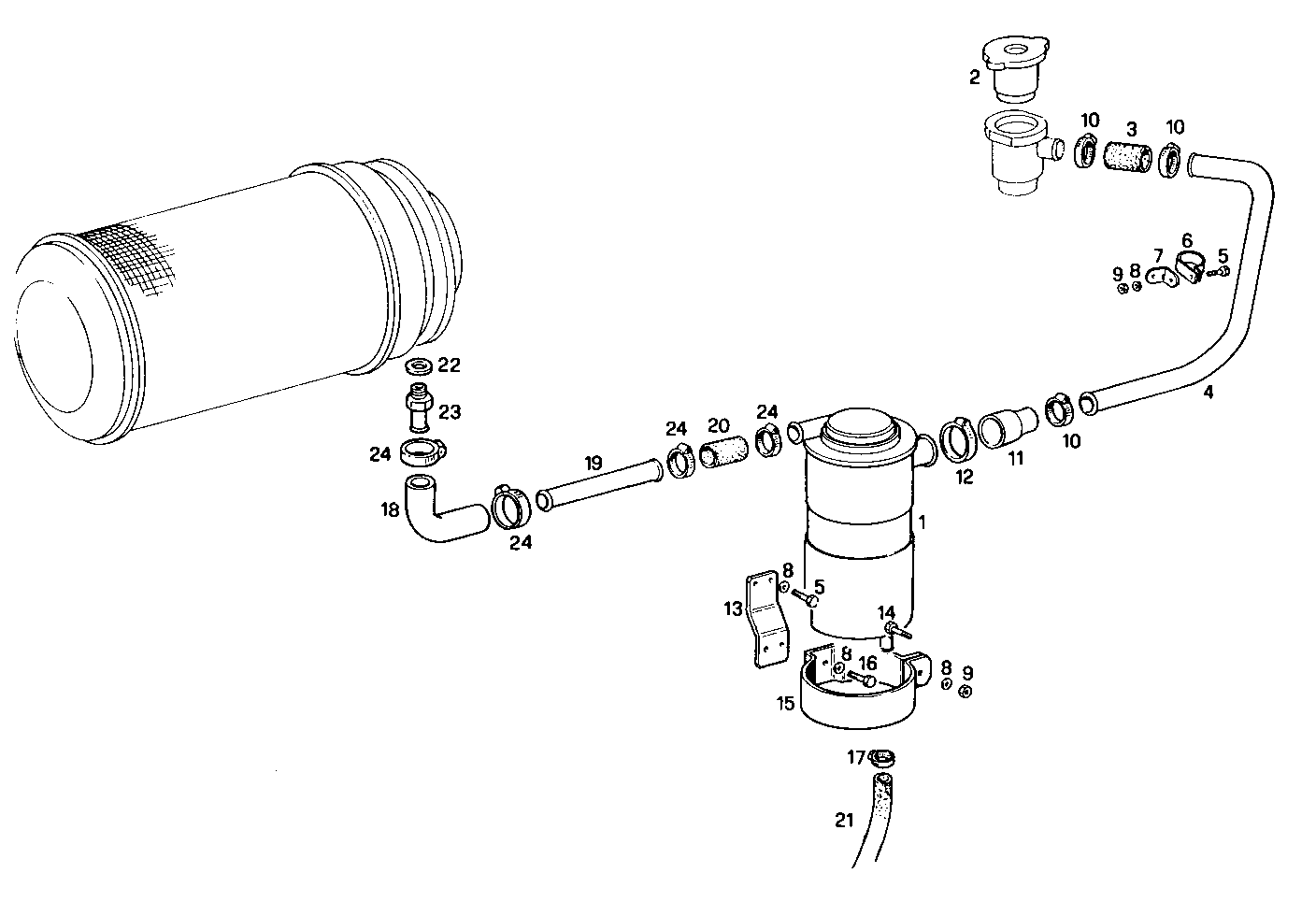

0450.061 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 7303441 BREATHER [up to 03-97]
2 8823136 LOCK PLUG
3 17740287 RUBBER SLEEVE
4 8012709 BREATHER PIPE
5 16605524 HEXAGON BOLT M8X20 MM
6 4760226 FASTENING BRACKET
7 8113297 RETAINER
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 17037931 HEXAGON NUT M8X1,25
10 17764693 CLIP Ø25/40 MM
11 61319110 RUBBER SLEEVE
12 17764793 CLIP Ø32/50 MM
13 8012693 PLATE
14 16605734 HEXAGON BOLT M8X30 MM
15 4860370 SUPPORT [up to 03-97]
16 16605424 SCREW M8X16 MM (8.8)
17 18088392 CLIP Ø16/25 MM
18 8013466 WATER HOSE [up to 03-97]
19 8018290 AIR PIPE/DUCT
20 98433753 RUBBER SLEEVE
21 8012952 AIR HOSE
22 4858609 WASHER Ø16X22 MM SP=1,5 MM
23 8018289 PIPE SOCKET
24 17764593 CLIP Ø20/32 MM
