8361SRM40.10

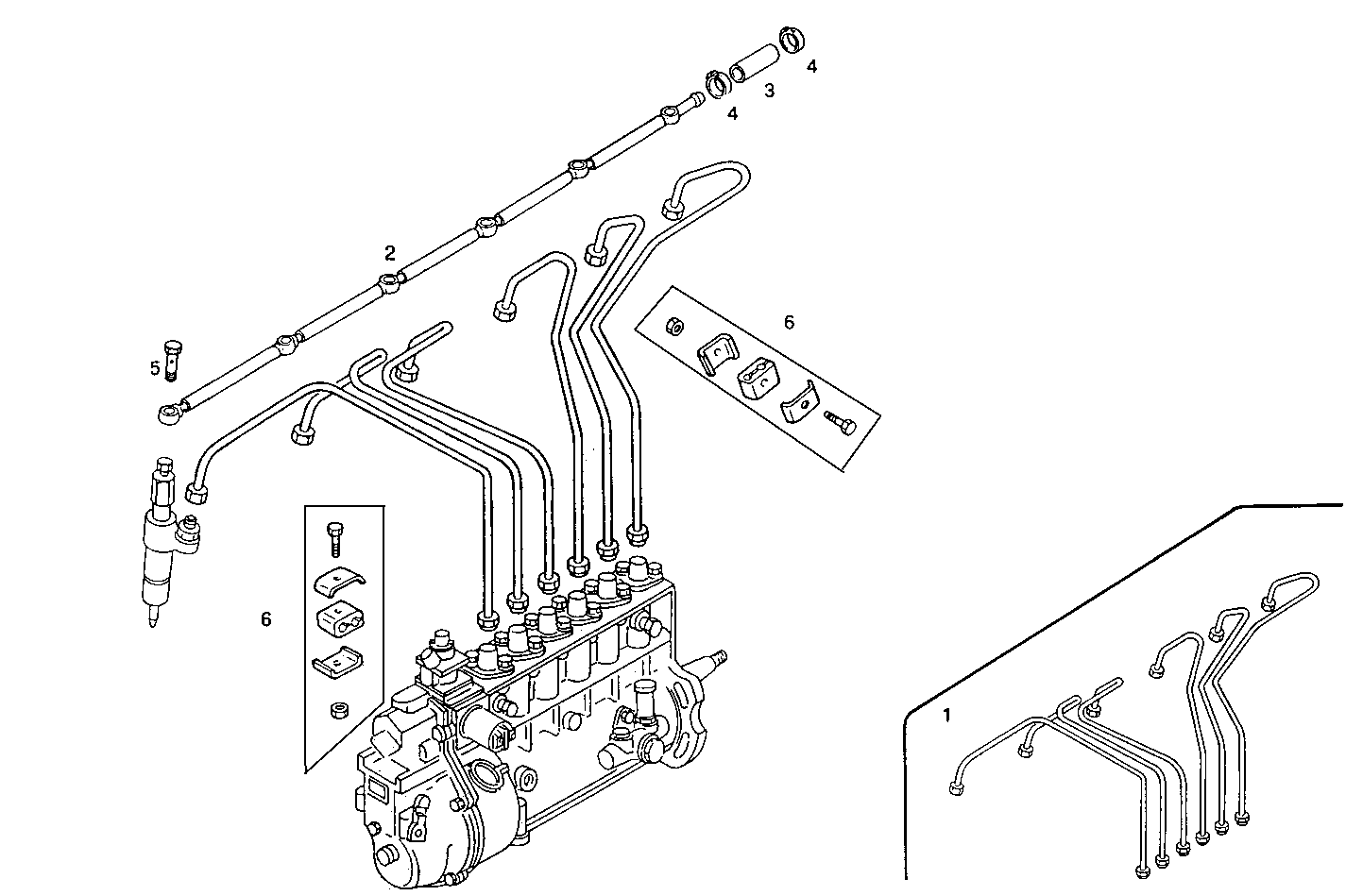

2020.057 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017963 | INJECTION LINE SET |
| 2 | 8018689 | FUEL LINE |
| 3 | 4687211 | RUBBER SLEEVE |
| 4 | 17764391 | CLIP Ø12/20 MM |
| 5 | 9982964 | SCREW CONNECTOR M6 |
| 6 | 4806611 | FASTENING BRACKET |
