8361SRM40.10

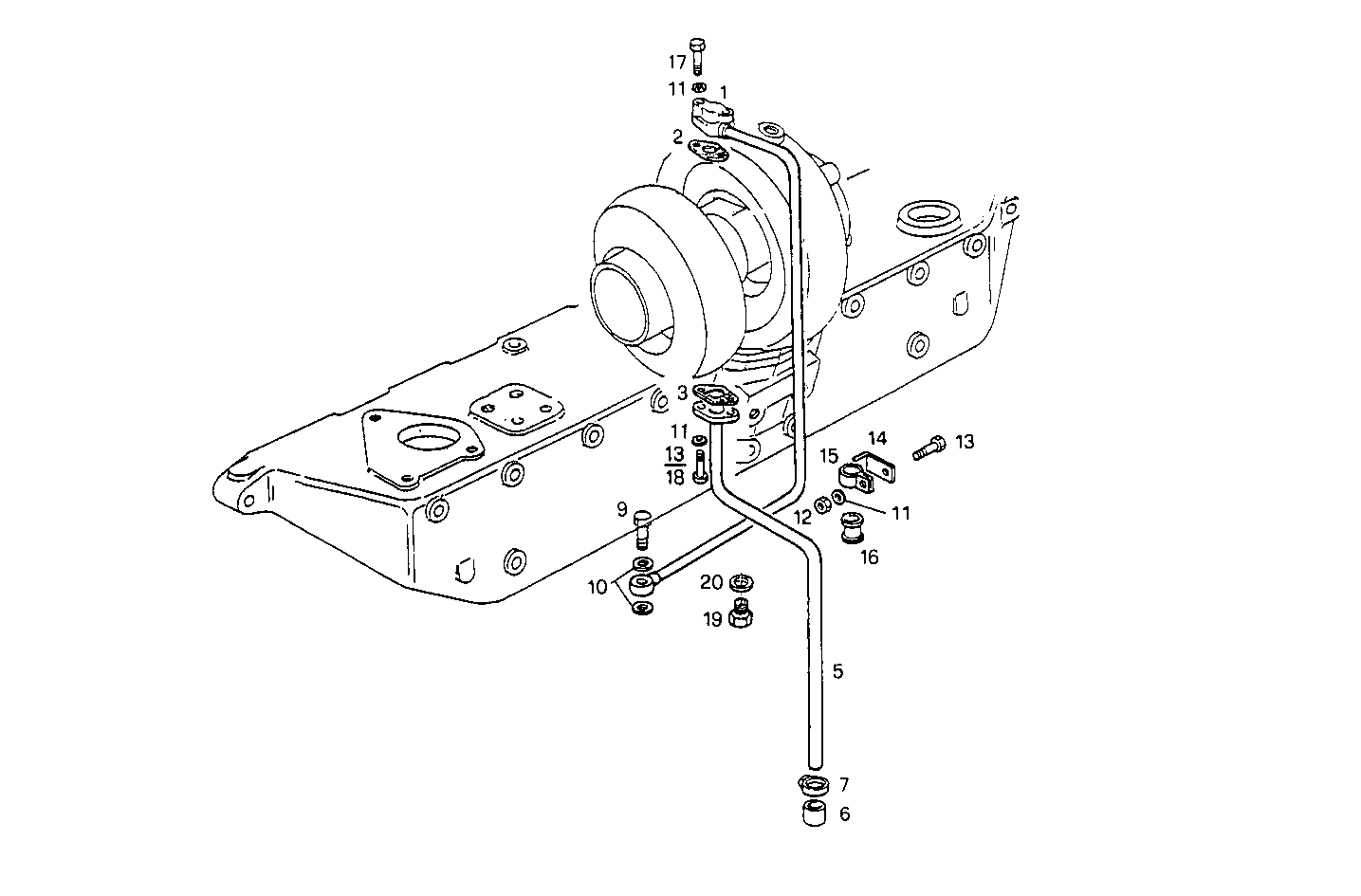

2400.013/02 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 8018710 OIL LINE
2 98415922 FLAT ENGINE GASKET
3 98415923 FLAT ENGINE GASKET
5 8110346 OIL LINE
6 98420478 RUBBER SLEEVE
7 17764593 CLIP Ø20/32 MM
9 4864084 BANJO BOLT M16X1,5
10 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 17037931 HEXAGON NUT M8X1,25
13 16605524 HEXAGON BOLT M8X20 MM
14 8114208 RETAINER [up to 09-93]
15 4755963 FASTENING BRACKET
16 4755964 RUBBER PAD
17 16605824 HEXAGON BOLT M8X35 MM
18 16605724 SCREW M8X1,25X30
19 11903111 LOCK PLUG M10X1,25
20 4858606 GASKET Ø10X14X1 MM
