8361SRM40.10

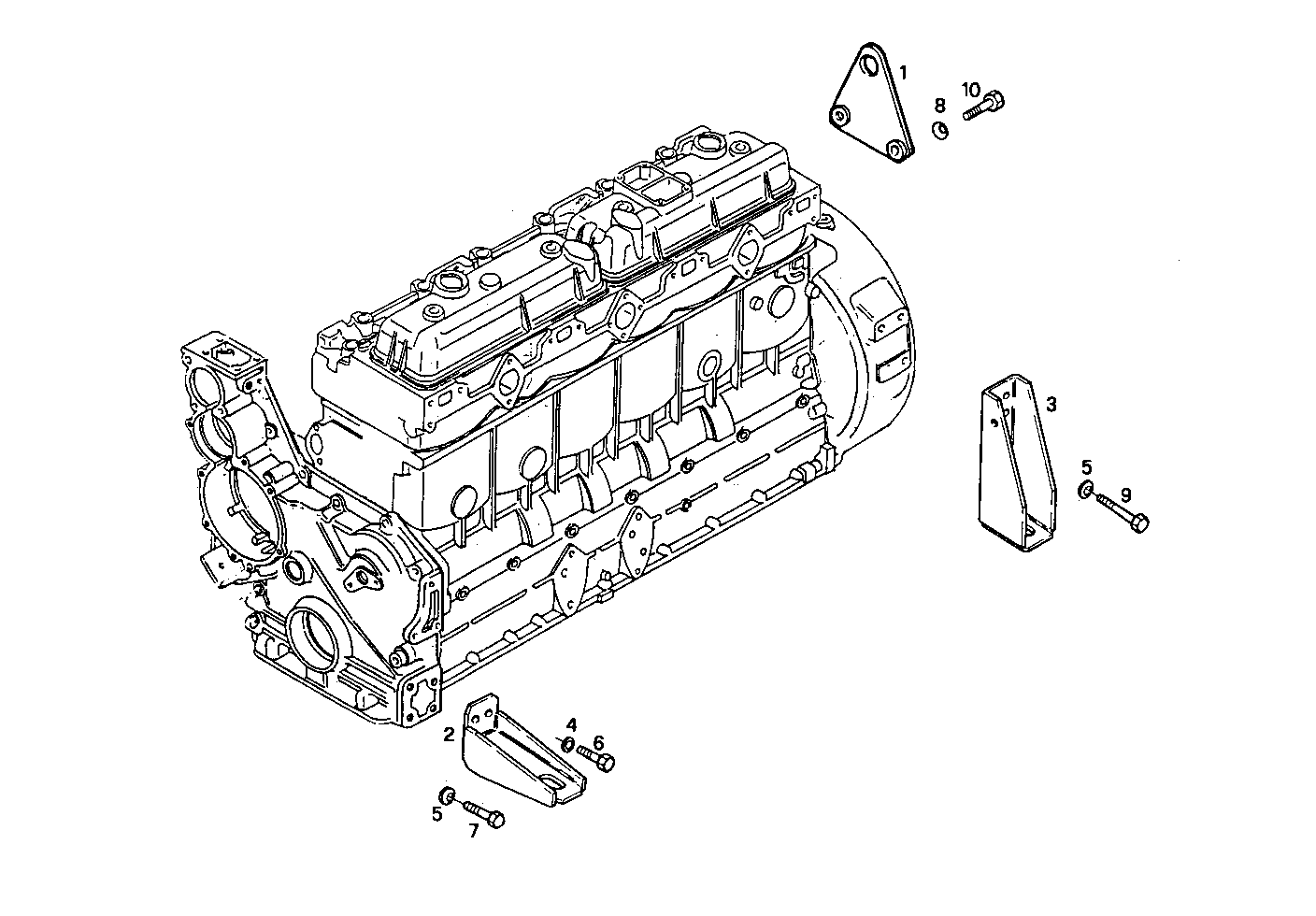

4500.057 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8114480 | HOOK |
| 2 | 8012011 | SUPPORT |
| 3 | 8012012 | SUPPORT |
| 4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 11391521 | HEXAGON BOLT M16X45 MM |
| 7 | 15540521 | SCREW M12X1,25X35 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 15540721 | HEXAGON BOLT M12X45 MM |
| 10 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
