8361SRM40.10

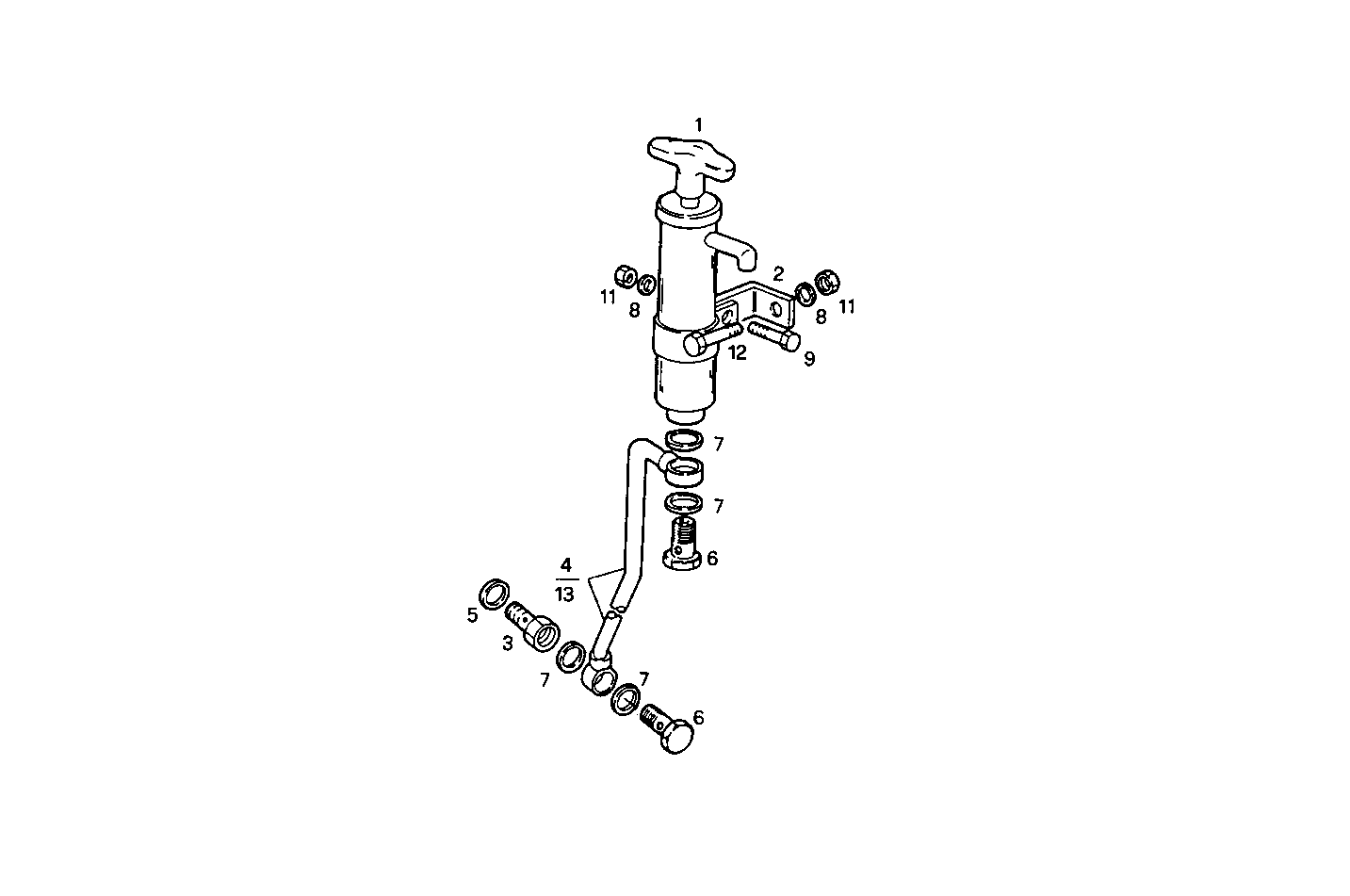

5510.041 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4931982 | RETAINER |
| 3 | 4935200 | PIPE SOCKET M22X1,5/M16X1,5 |
| 4 | 8018722 | OIL LINE [up to 04-98] |
| 5 | 10263460 | WASHER Ø22X28X1,5 MM |
| 6 | 4864084 | BANJO BOLT M16X1,5 |
| 7 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 8010762 | OIL LINE |
