8361SRM40.10

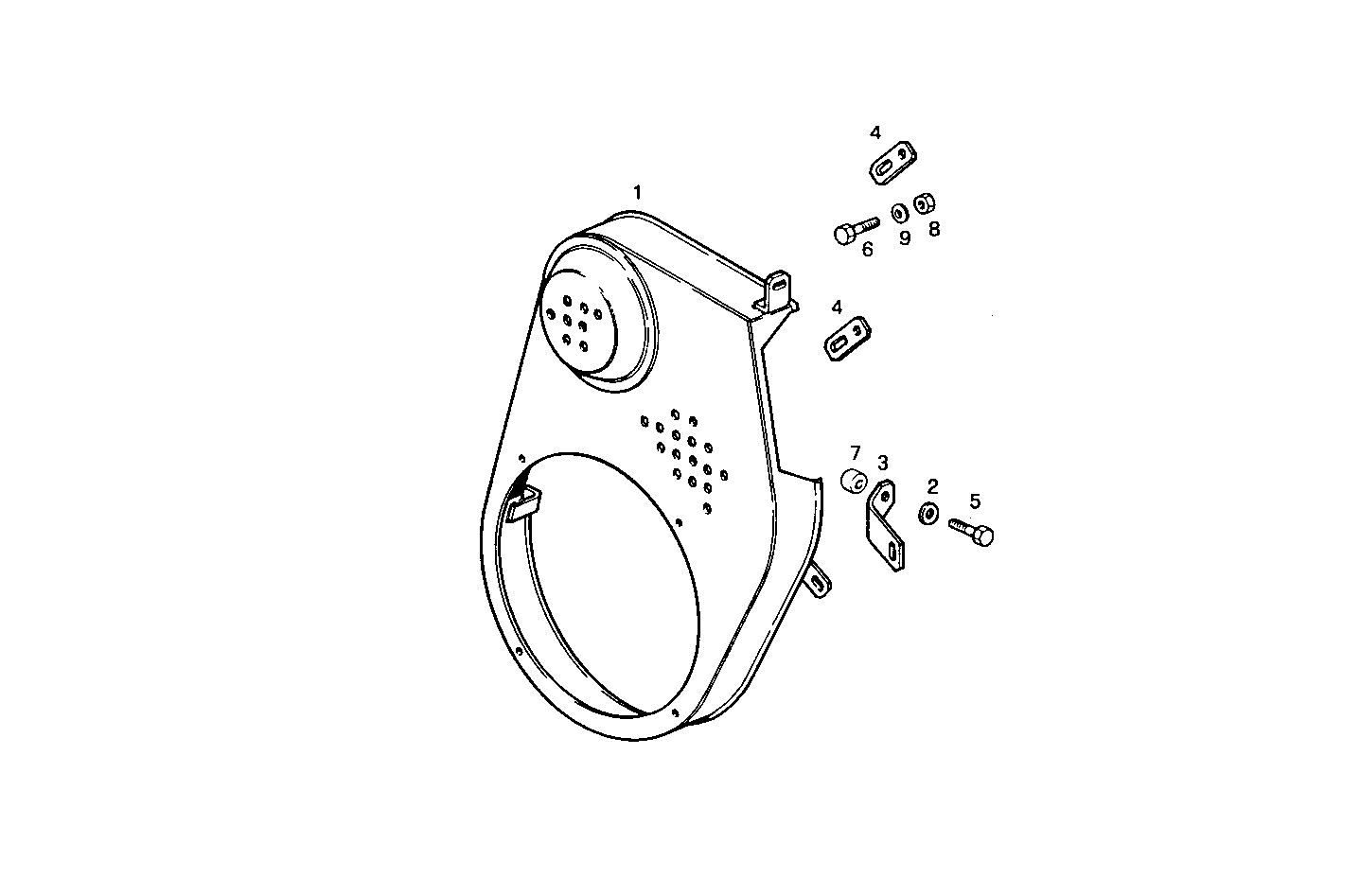

A48020027 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 4936806 | PROTECTION |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 4936809 | RETAINER |
| 4 | 4936808 | RETAINER |
| 5 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 4934572 | SPACING BAR |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
