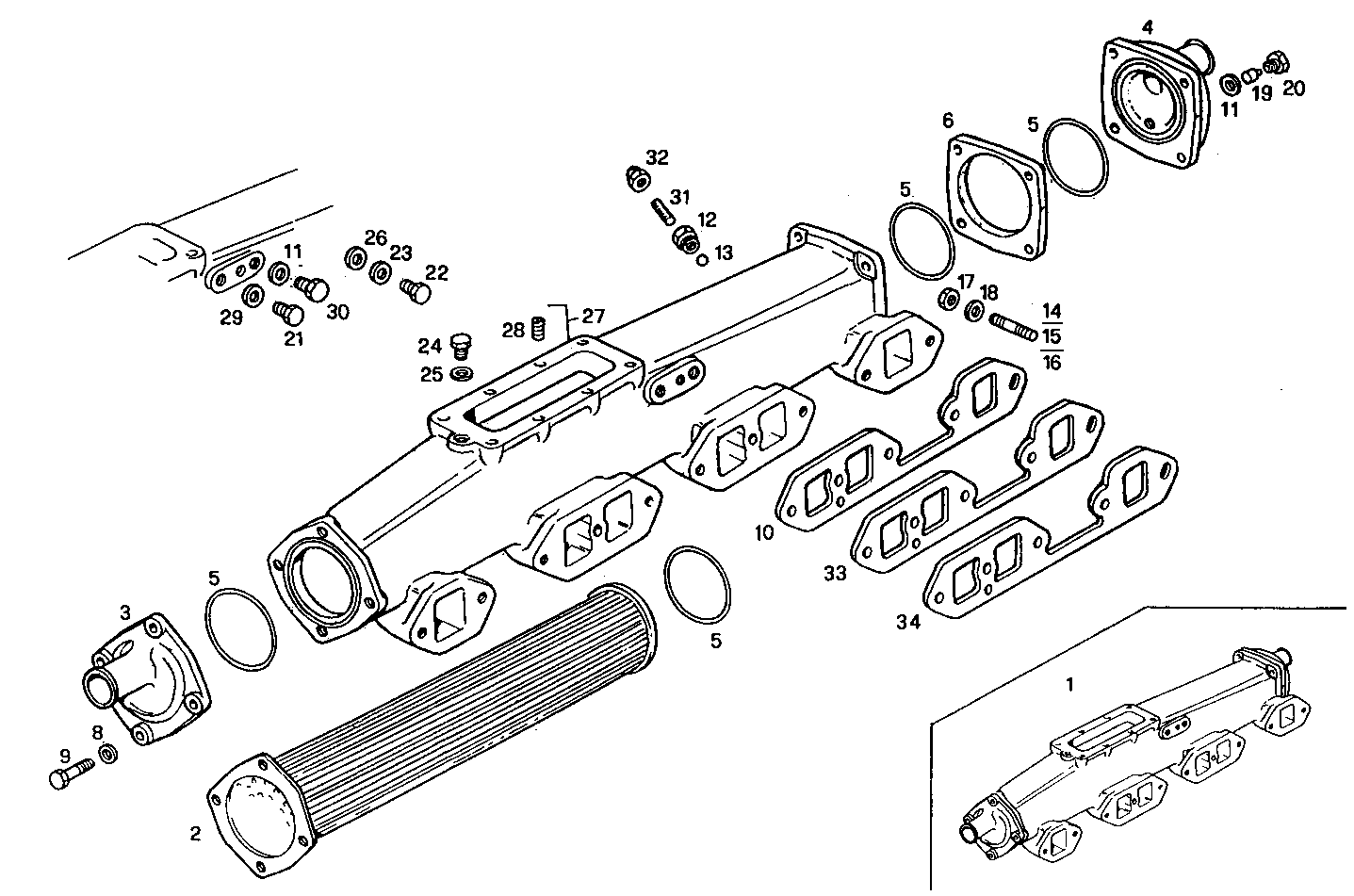

| Item |
Part number |
Description |
|
1 |
8019716 |
INTAKE ELBOW ASSY |
|
2 |
8026489 |
TUBE STACK |
|
3 |
8017601 |
HEAT EXCHANG.COVER |
|
4 |
8017603 |
COVER |
|
5 |
17291981 |
O-RING Ø117,07X3,53 MM |
|
6 |
8104374 |
GASKET |
|
8 |
17800474 |
WASHER Ø8X15X1,0 MM |
|
9 |
16690824 |
CYLIND-HEAD SCREW M8X35 MM |
|
10 |
8017267 |
INTAKE ELBOW GASK. |
|
11 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
12 |
8025610 |
PIPE SOCKET |
|
13 |
8017600 |
BALL Ø10 MM |
|
14 |
13449721 |
STUD M10X15X30 |
|
15 |
13530521 |
STUD WAHLER |
|
16 |
13530621 |
STUD M12X18X55 |
|
17 |
8103197 |
NUT M12X1,25 |
|
18 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
19 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
20 |
4917793 |
PLUG M18 |
|
21 |
16992111 |
THREADED PLUG M10X1 |
|
22 |
10183217 |
LOCK PLUG M12X1,5 |
|
23 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
24 |
4595833 |
THREADED PLUG M20X1,5 |
|
25 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
26 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
27 |
8019997 |
HEAT EXANGER BODY ASSY |
|
28 |
17873271 |
THREADED INSERT M8 |
|
29 |
4858606 |
GASKET Ø10X14X1 MM |
|
30 |
16992540 |
PLUG M18X1,5 |
|
31 |
8025611 |
SCREW M10X25 |
|
32 |
8025612 |
NUT |
|
33 |
8019642 |
SPACING BAR |
|
34 |
8018818 |
INTAKE ELBOW GASK. |
