8361SRM40.11

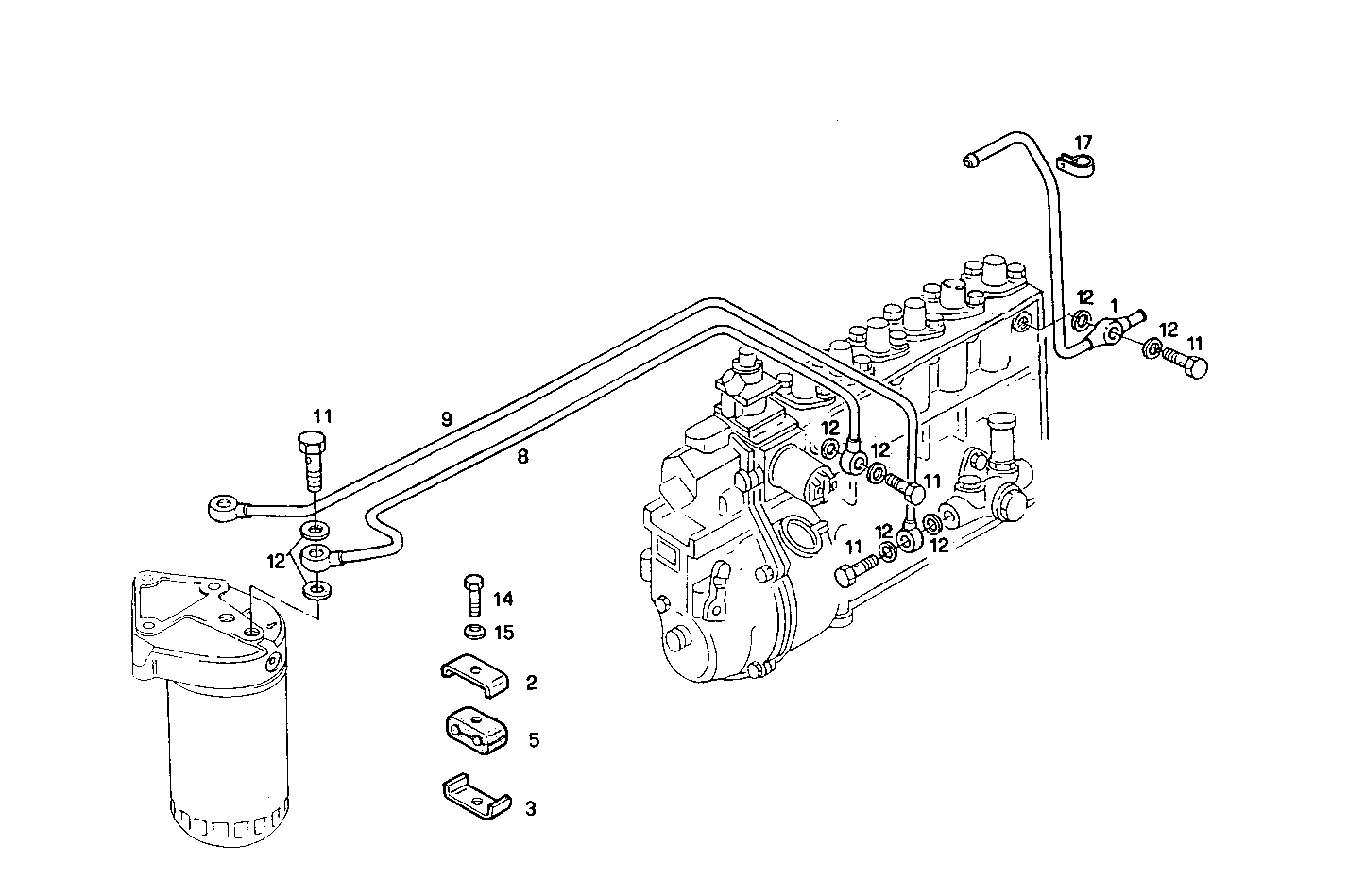

2030.073 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 8021595 | FUEL LINE |
2 | 4644288 | CLIP |
3 | 4644289 | CLIP |
5 | 4871771 | RUBBER LUG |
8 | 8016339 | FUEL LINE |
9 | 8016239 | FUEL LINE |
11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
12 | 98474308 | SEAL GASKET Ø14X22 MM |
14 | 16603824 | SCREW M6X25 |
15 | 17088474 | WASHER Ø6X12 MM |
17 | 17314890 | CLIP |
