8361SRM40.11

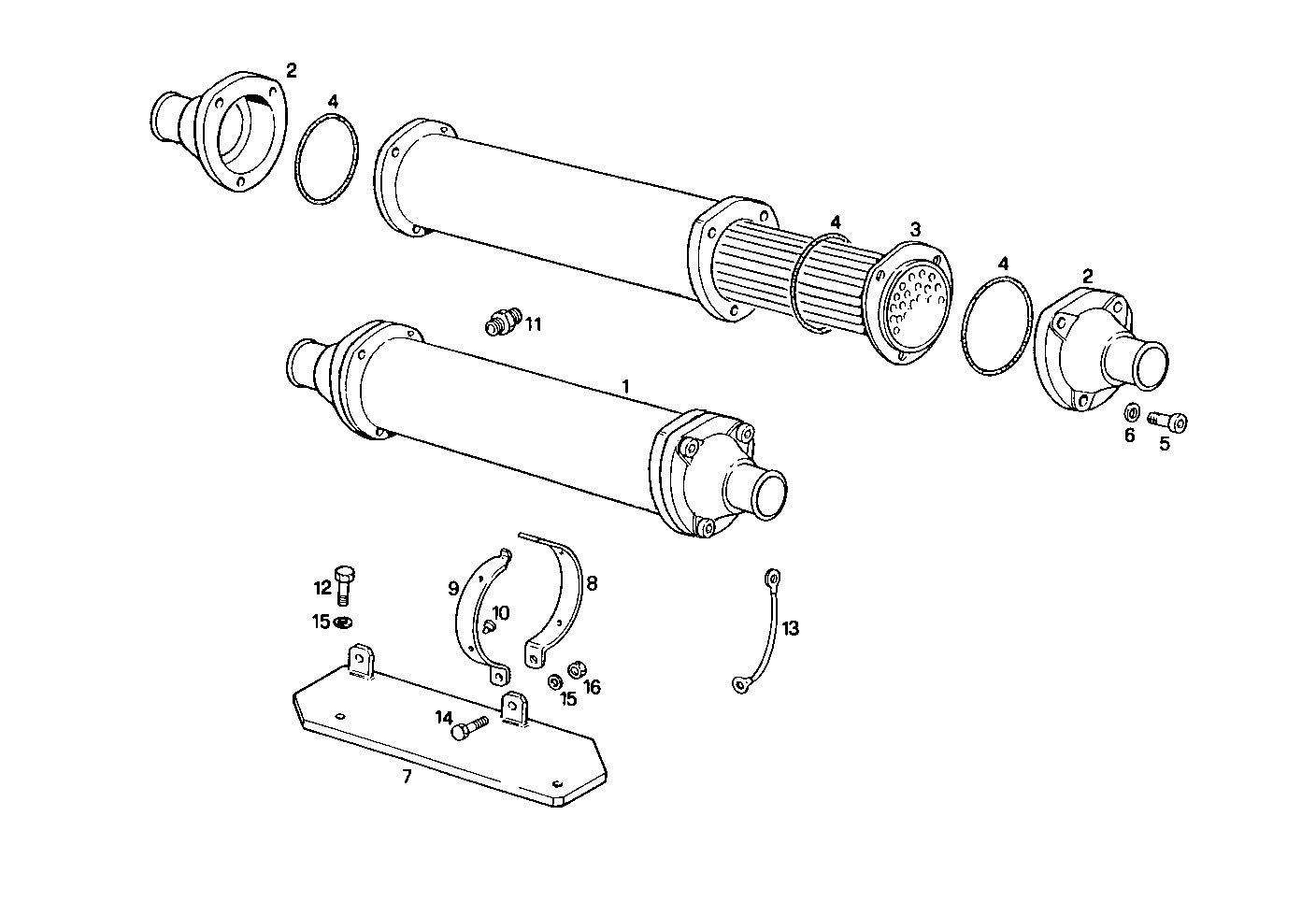

3350.005 REVERSER WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 8017381 | MARINE GEAR OIL HEAT EXCH ASSY |
2 | 8017383 | COVER |
3 | 8017384 | TUBE STACK |
4 | 17290881 | O-RING Ø82,14X3,53 MM |
5 | 16690824 | CYLIND-HEAD SCREW M8X35 MM |
6 | 17800474 | WASHER Ø8X15X1,0 MM |
7 | 8017569 | SUPPORT |
8 | 8017424 | CLAMP |
9 | 8017425 | CLAMP |
10 | 1366290 | RUBBER LUG |
11 | 8017495 | PIPE SOCKET 1/2'' GAS |
12 | 11306921 | SCREW M10X1,25X30 |
13 | 8113786 | ENGINE HARNESS GND |
14 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
15 | 17090174 | SPRING WASHER Ø10X20 MM |
16 | 17038121 | HEXAGON NUT M10 |
