8361SRM40.11

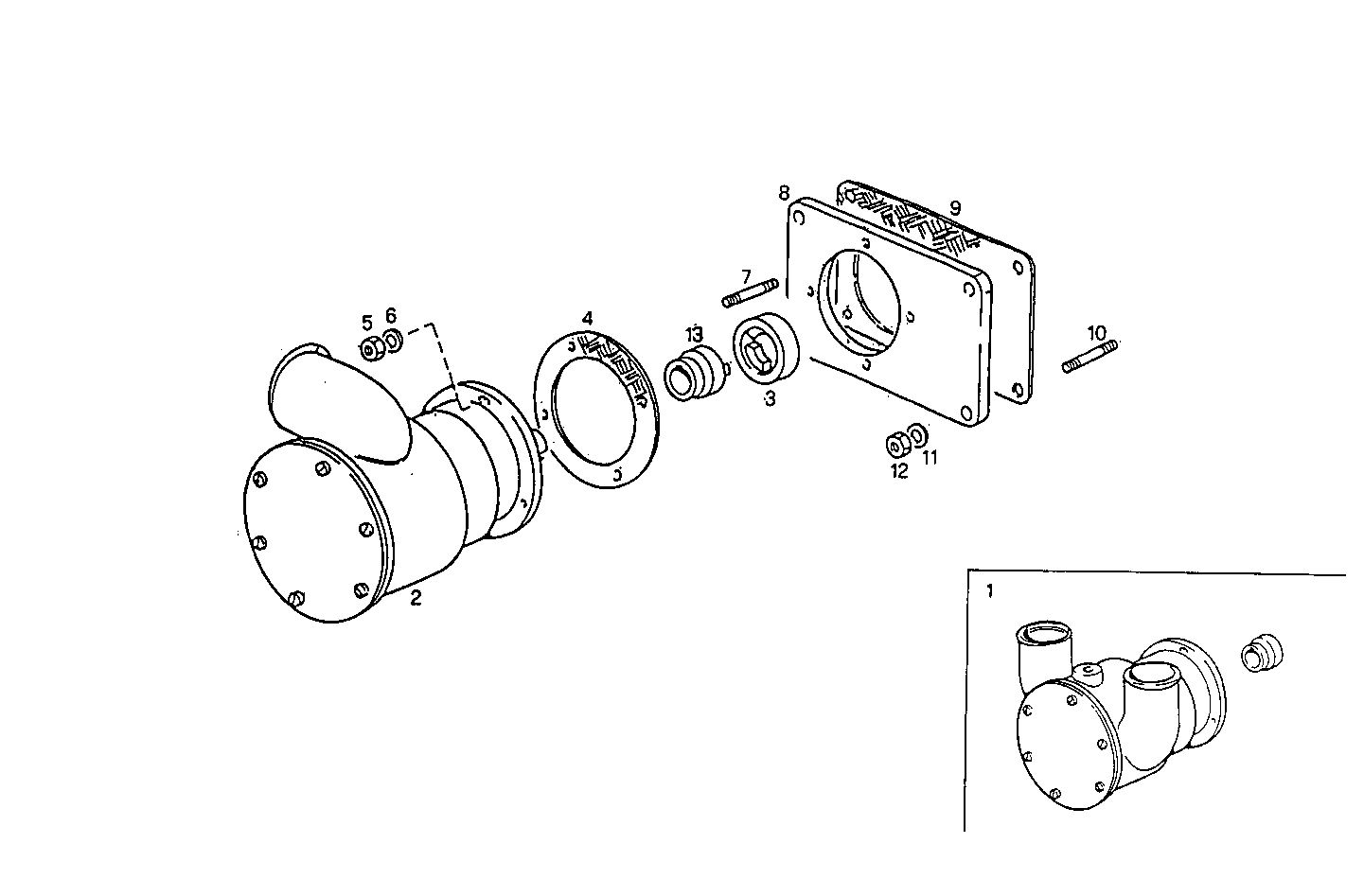

3380.032/01 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8017564 SEA WATER PUMP ASSY JABSCO
2 8016899 SEA WATER PUMP ASSY JABSCO
3 4621358 RING
4 8008734 GASKET
5 17037934 NUT
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16729424 STUD M8X1,25X25
8 8102115 SUPPORT
9 4850986 FLAT ENGINE GASKET
10 16744924 STUD M6X12X16
11 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
12 17037821 HEXAGON NUT M6X1
13 4934315 COUPLER
