8361SRM40.11

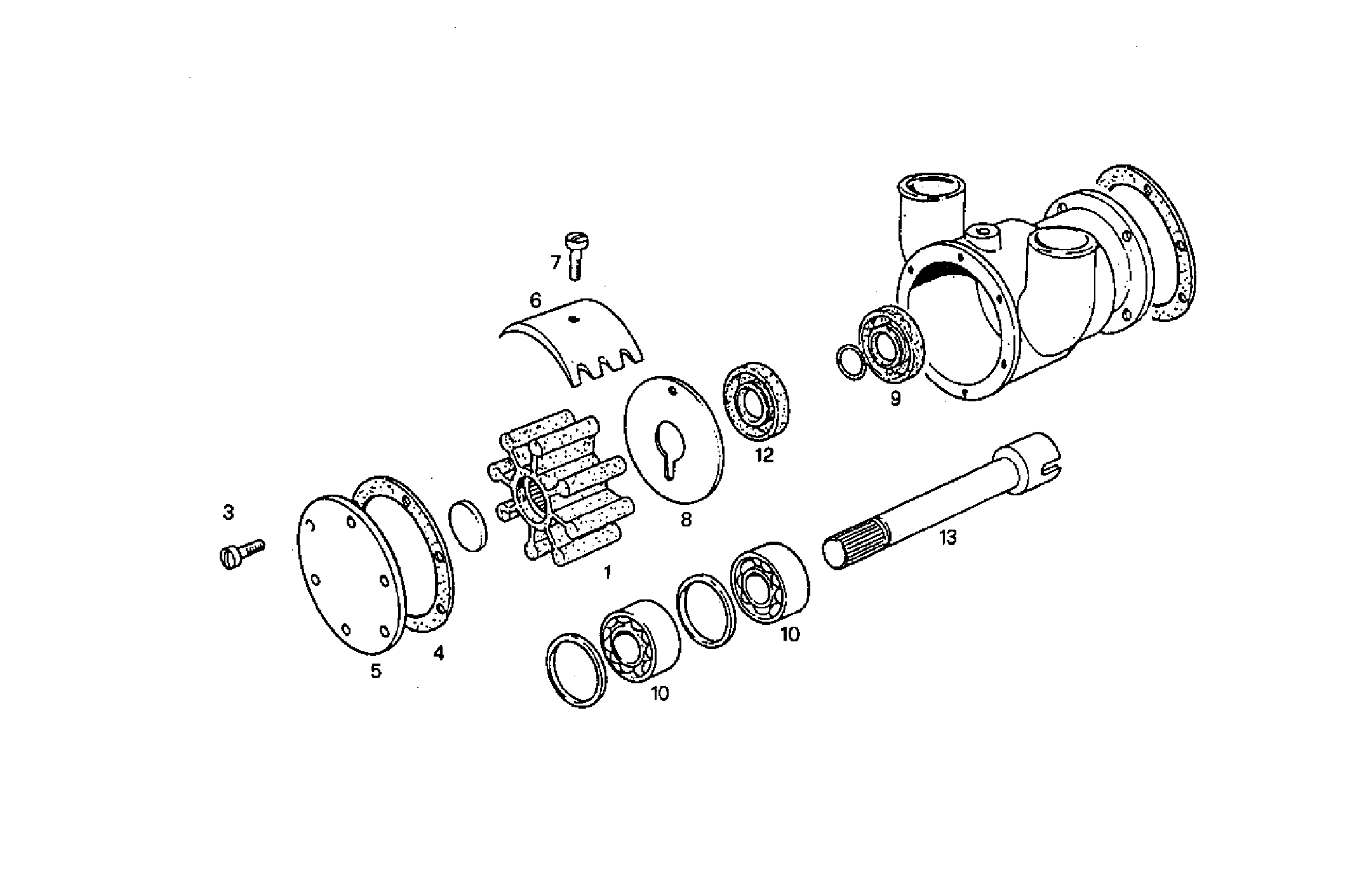

3380.032/02 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8106207 | SEA WATER PUMP IMPELL. |
| 3 | 8093345 | SCREW |
| 4 | 4914944 | GASKET |
| 5 | 4914945 | COVER |
| 6 | 8106286 | RETAINING CAM |
| 7 | 8093336 | SCREW |
| 8 | 4914941 | WASHER |
| 9 | 8093346 | WASHER |
| 10 | 8106247 | DRIVE BEARING |
| 12 | 8112168 | GASKET |
| 13 | 8093348 | SHAFT |
