8361SRM40.40

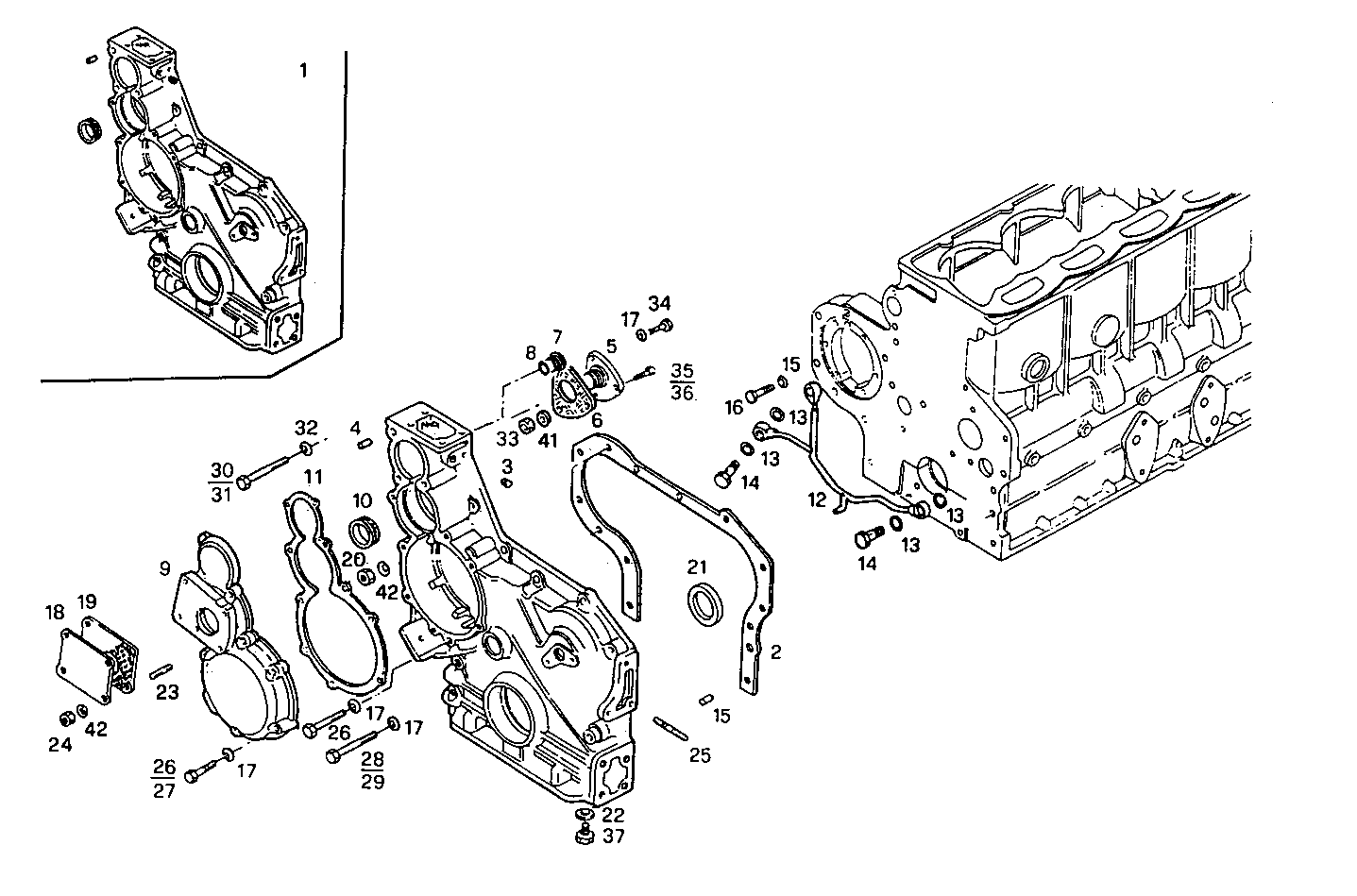

0430.172 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4717884 FRONT C.CASE COVER ASSY
2 98411985 FLAT ENGINE GASKET
3 4560434 PLUG
4 4708557 DOWEL PIN
5 4718900 COVER
6 4851386 GASKET
7 4718902 PLUG
8 14458281 O-RING Ø2,62X31,42 MM
9 4732679 COVER
10 4708220 BUSH
11 98411987 GASKET
12 4713668 OIL LINE
13 10279460 SEAL GASKET Ø10X16 MM SP=0,5
14 11903811 SCREW CONNECTOR M10X1,25
15 11197770 SPRING WASHER Ø6,4 MM
16 16603824 SCREW M6X25
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 564530 COVER
19 4851385 FLAT ENGINE GASKET
20 15896211 HEXAGON NUT M6
21 40101394 OIL RETAINER
22 10279560 SEAL GASKET Ø22,2 MM
23 4733825 STUD
24 17037821 HEXAGON NUT M6X1
25 13546424 STUD M10X1,25X48
26 16044021 HEXAGON BOLT M8X1,25X40 MM
27 16606124 HEXAGON BOLT M8X50 MM
28 16044321 HEXAGON BOLT M8X1,25X55 MM
29 16046021 HEXAGON BOLT M8X140 MM
30 15971521 HEXAGON BOLT M10X85 MM
31 15971721 SCREW M10X1,25X95
32 17090274 WASHER Ø10X20 MM
33 17038221 HEXAGON NUT M10
34 16043821 HEXAGON BOLT M8X30 MM
35 15971821 SCREW M10X1,25X100
36 15972021 HEXAGON BOLT M10X1,25X110 MM
37 10275040 LOCK PLUG M22X1,5
42 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
