8361SRM40.40

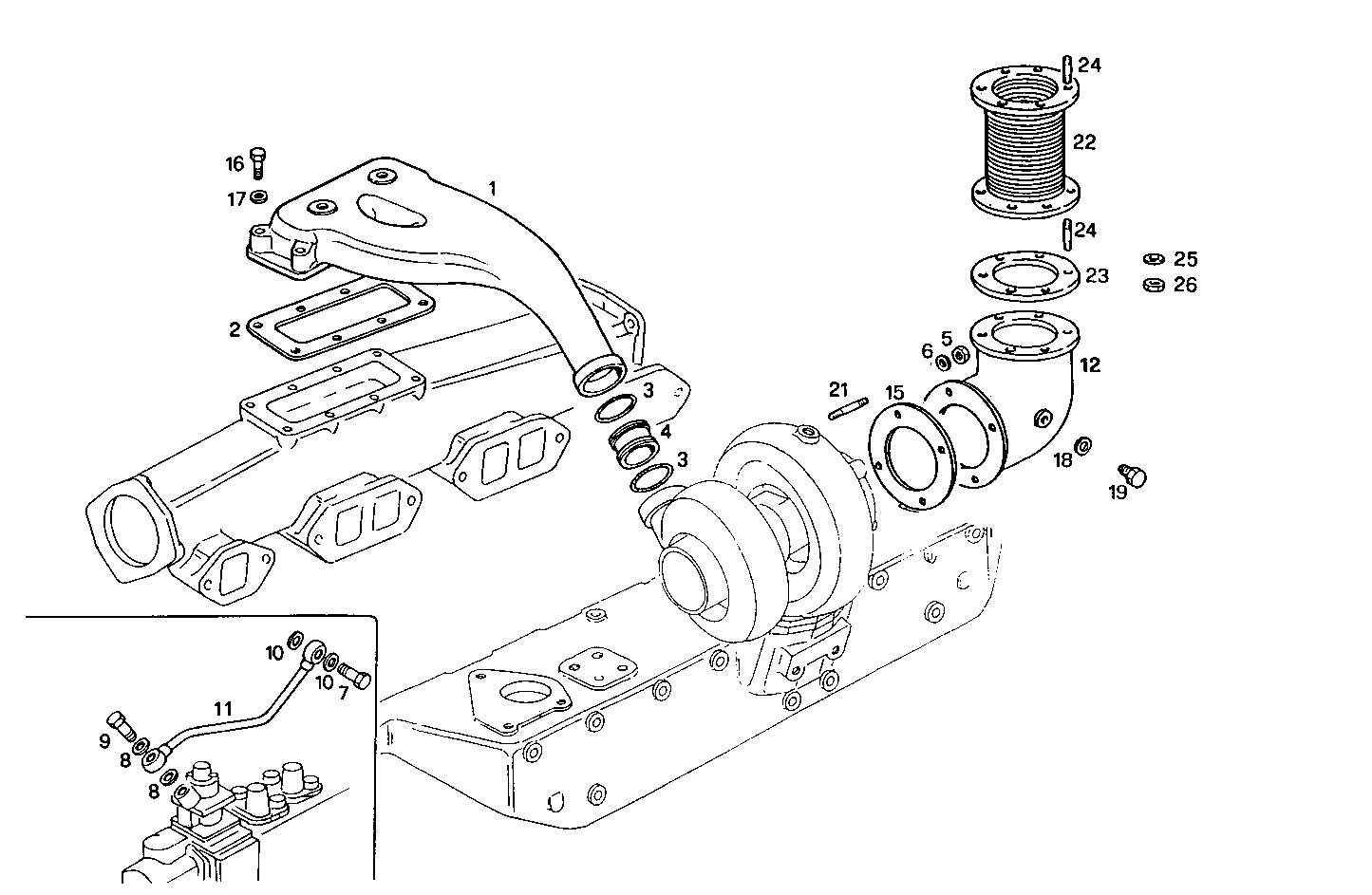

2420.107 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017208 | INTAKE ELBOW |
| 2 | 8019078 | GASKET |
| 3 | 17296181 | O-RING Ø59,69X5,33 MM |
| 4 | 8017252 | WATER HOSE |
| 5 | 17308531 | NUT M8 |
| 6 | 17094904 | WASHER Ø8X16X1,6 MM |
| 7 | 4864079 | SCREW CONNECTOR M10X1 |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 10 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 11 | 8017577 | AIR PIPE/DUCT L=380MM |
| 12 | 8012591 | EXHAUST ELBOW |
| 15 | 8111833 | GASKET |
| 16 | 8023383 | SCREW M10X45 |
| 17 | 17793804 | WASHER Ø8X21X1,5 MM |
| 18 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 19 | 16992240 | THREADED PLUG M12X1,5 |
| 21 | 16729424 | STUD M8X1,25X25 |
| 22 | 8012463 | EXHAUST BELLOWS |
| 23 | 8009600 | GASKET |
| 24 | 13449524 | STUD M10X1,25X15X25 |
| 25 | 17090174 | SPRING WASHER Ø10X20 MM |
| 26 | 17038121 | HEXAGON NUT M10 |
