8361SRM40.40

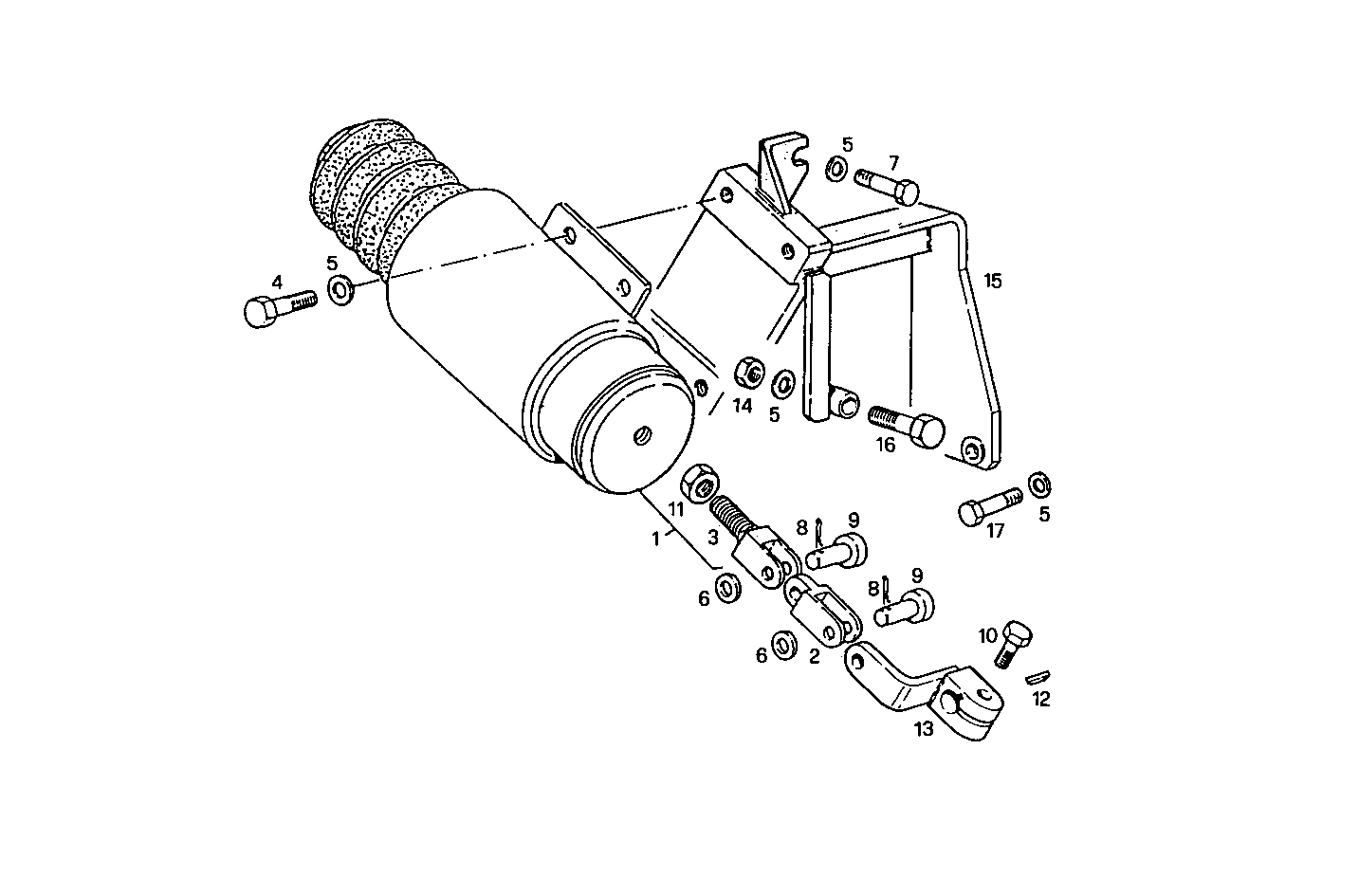

A38420036 STOP SOLENOID - ENERGIZE TO STOP - 24V
Item | Part number | Description |
---|---|---|
1 | 8017620 | SOLENOID ASSY |
2 | 8108833 | CLEVIS |
3 | 8109159 | CLEVIS M6X40 |
4 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
5 | 17088474 | WASHER Ø6X12 MM |
6 | 14497801 | WASHER Ø5X9,5 MM |
7 | 16689624 | HEXAGON BOLT M6X40 MM (8.8) |
8 | 10734101 | SPLIT PIN Ø1,3 MM |
9 | 17718411 | PIN Ø5 MM |
10 | 10977721 | HEXAGON BOLT M5X14 MM |
11 | 17037821 | HEXAGON NUT M6X1 |
12 | 8101048 | KEY 3X5X12,5 |
13 | 8110753 | LEVER |
15 | 8006296 | SUPPORT |
16 | 17133421 | SCREW M6X25 |
