8361SRM40.41

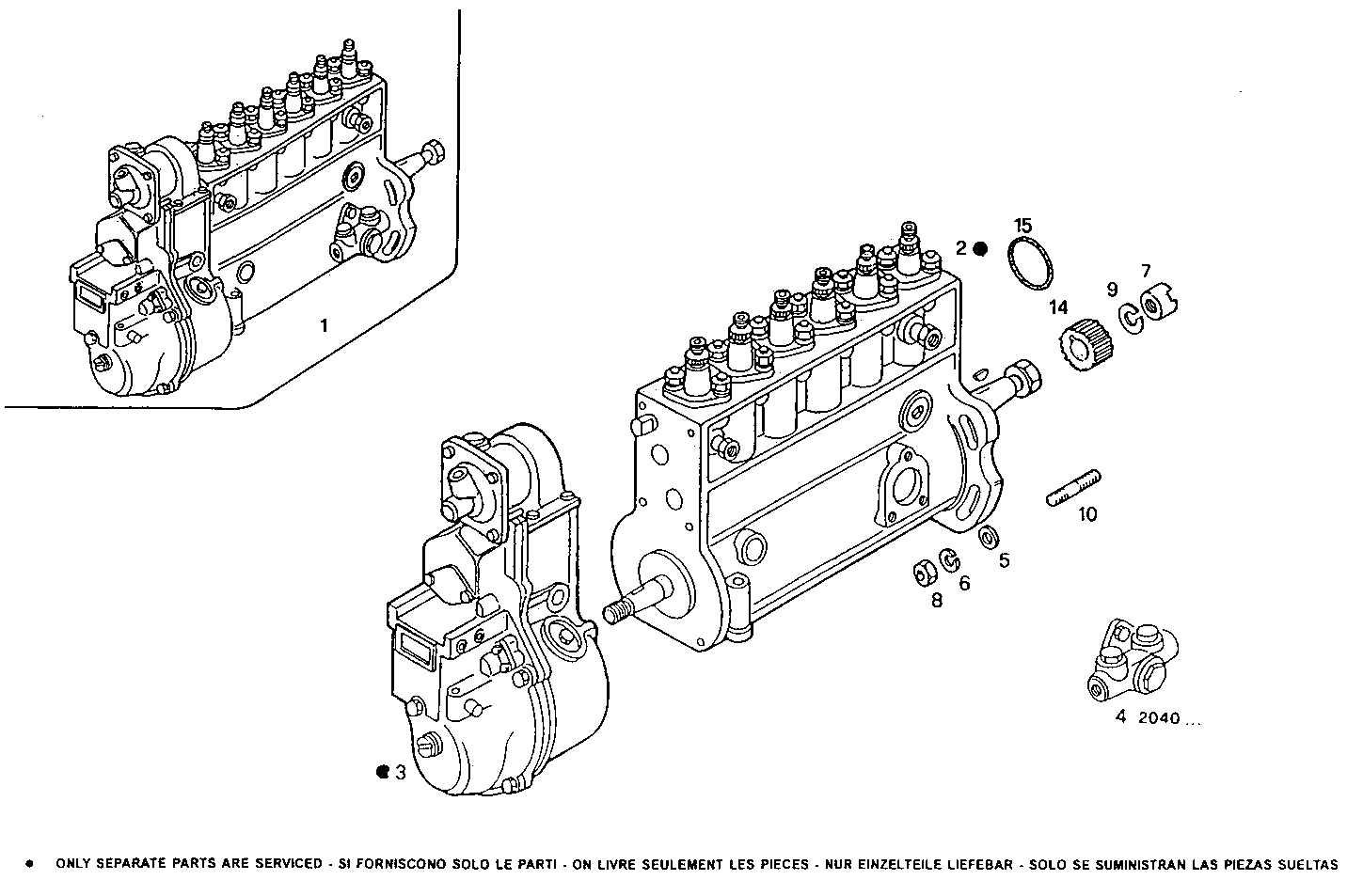

1400.307 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8018484 | INLINE INJECT.PUMP OPT. |
| 4 | 8092637 | FUEL PUMP OPT. |
| 5 | 12626321 | WASHER Ø10X25 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 8010651 | NUT |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 8010652 | WASHER |
| 10 | 13450121 | STUD M10X15X50 |
| 14 | 8010650 | BUSH |
| 15 | 61317701 | O-RING Ø3,2X10 MM |
