8361SRM40.41

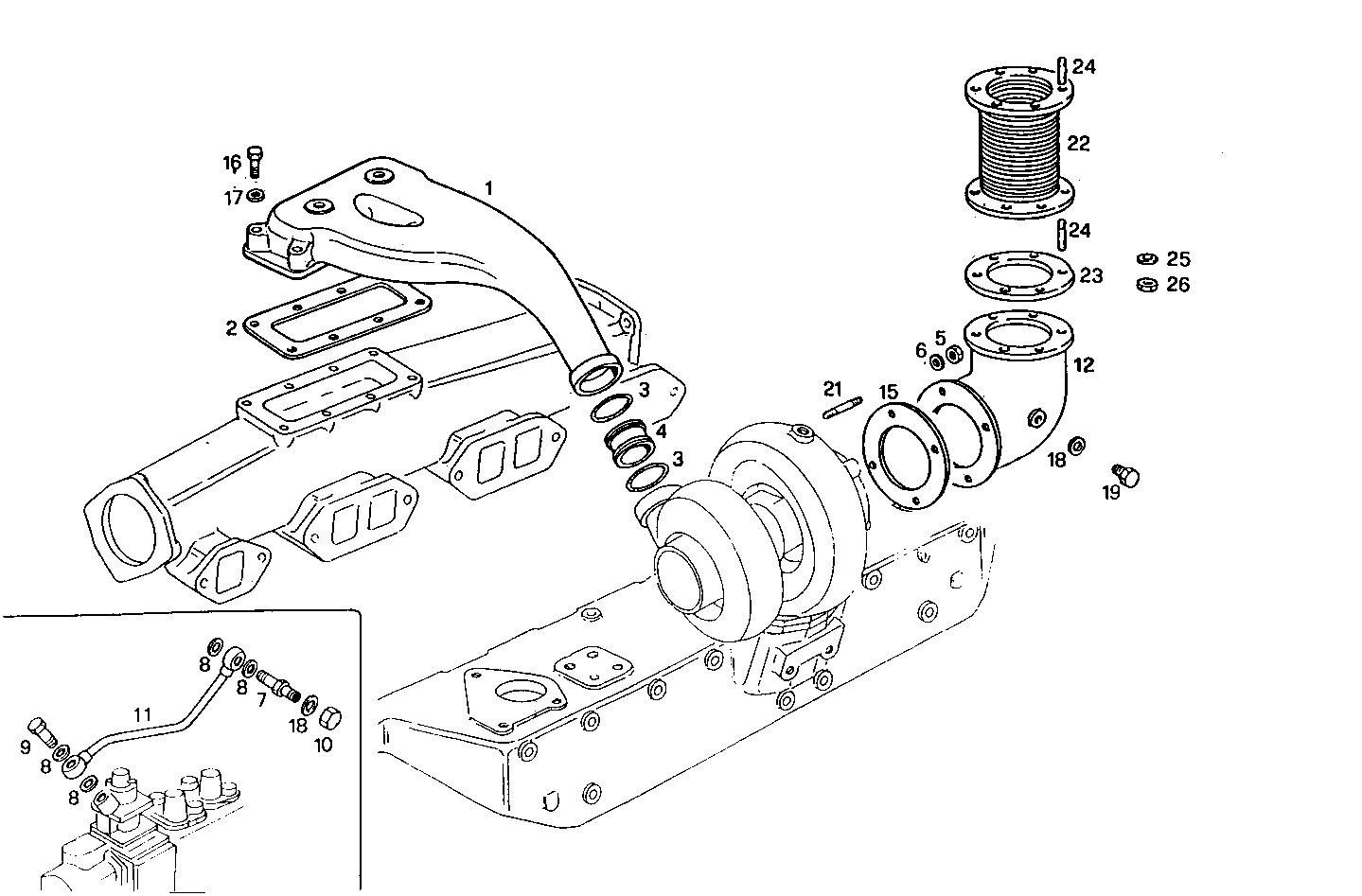

2420.181 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 8017208 | INTAKE ELBOW |
2 | 8019078 | GASKET |
3 | 17296181 | O-RING Ø59,69X5,33 MM |
4 | 8017252 | WATER HOSE |
5 | 17308531 | NUT M8 |
6 | 17094904 | WASHER Ø8X16X1,6 MM |
7 | 10180211 | SWIVEL COUPLING M10X1 |
8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
9 | 4864082 | BANJO BOLT M12X1,5X25 MM |
10 | 10183217 | LOCK PLUG M12X1,5 |
11 | 8021640 | HOSE |
12 | 8012591 | EXHAUST ELBOW |
15 | 8111833 | GASKET |
16 | 8023383 | SCREW M10X45 |
17 | 17793804 | WASHER Ø8X21X1,5 MM |
18 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
19 | 16992240 | THREADED PLUG M12X1,5 |
21 | 16729424 | STUD M8X1,25X25 |
22 | 8012463 | EXHAUST BELLOWS |
23 | 8009600 | GASKET |
24 | 13449524 | STUD M10X1,25X15X25 |
25 | 17090174 | SPRING WASHER Ø10X20 MM |
26 | 17038121 | HEXAGON NUT M10 |
