8361SRM40.41

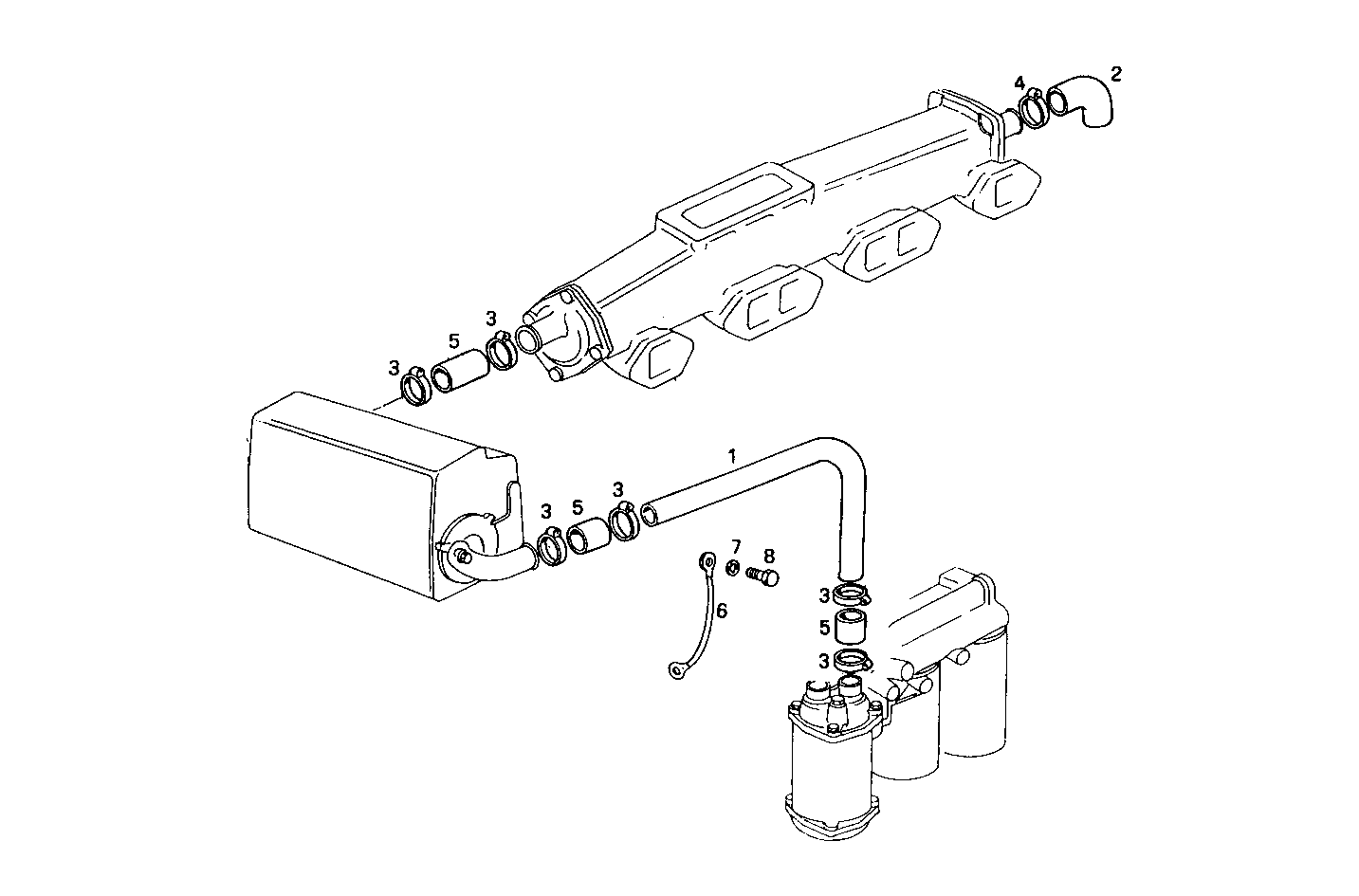

3390.055 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017527 | WATER PIPE |
| 2 | 98433319 | RUBBER SLEEVE |
| 3 | 17764893 | CLIP Ø40/60 MM |
| 4 | 17764993 | CLIP Ø50/70 MM |
| 5 | 17743687 | RUBBER SLEEVE Ø45X60 MM |
| 6 | 8113786 | ENGINE HARNESS GND |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16605424 | SCREW M8X16 MM (8.8) |
