8361SRM40.41

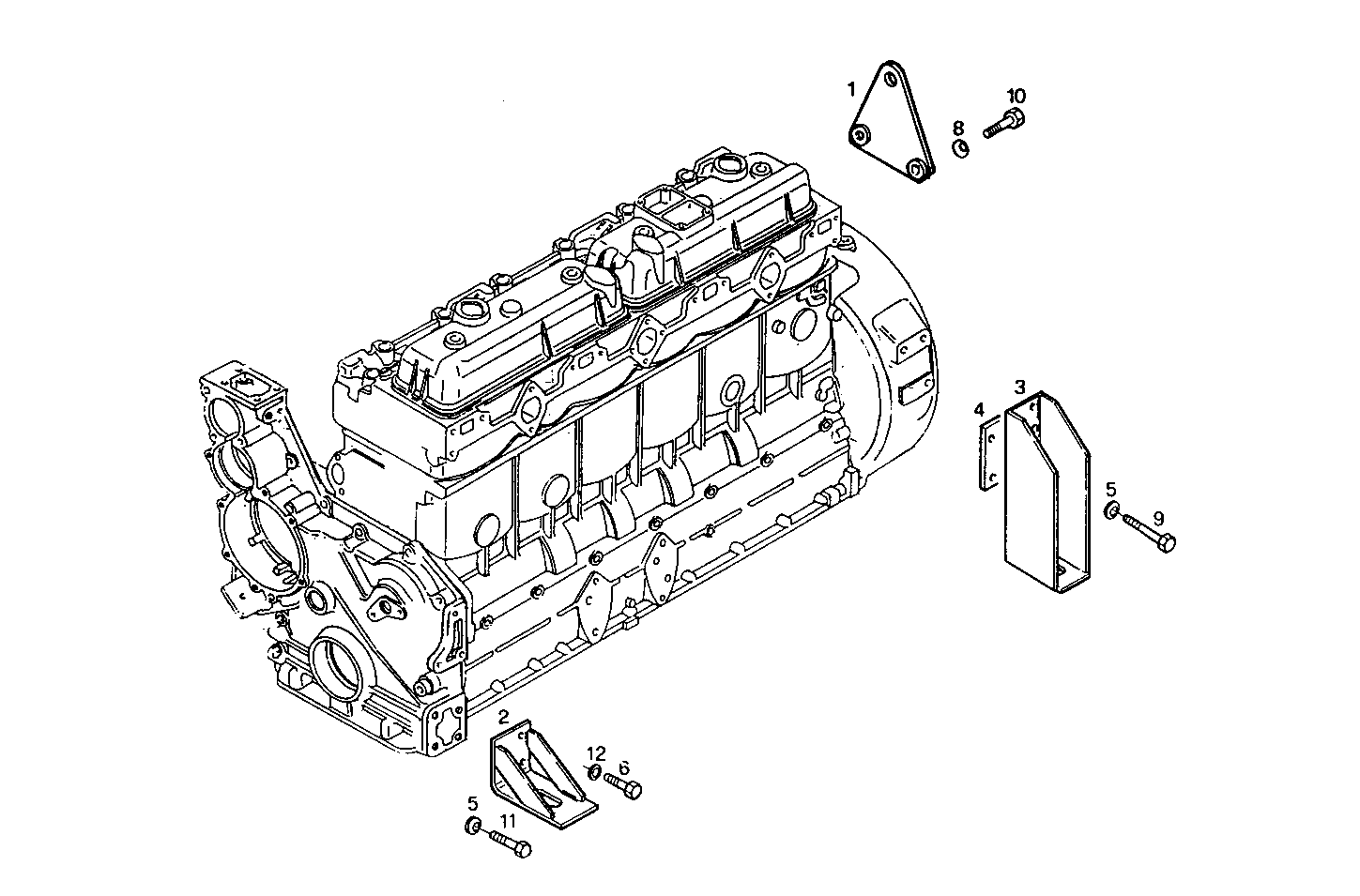

4500.125 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 8114480 HOOK
2 8111165 SUPPORT
3 8111166 SUPPORT
4 8111167 SPACING BAR
5 17091174 SPRING WASHER Ø12X24 MM
6 11391521 HEXAGON BOLT M16X45 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 15540721 HEXAGON BOLT M12X45 MM
10 15970921 HEXAGON BOLT M10X1,25X35 MM
11 15540521 SCREW M12X1,25X35
12 17092174 SPRING WASHER Ø16X32X3,4
