8460M15.12

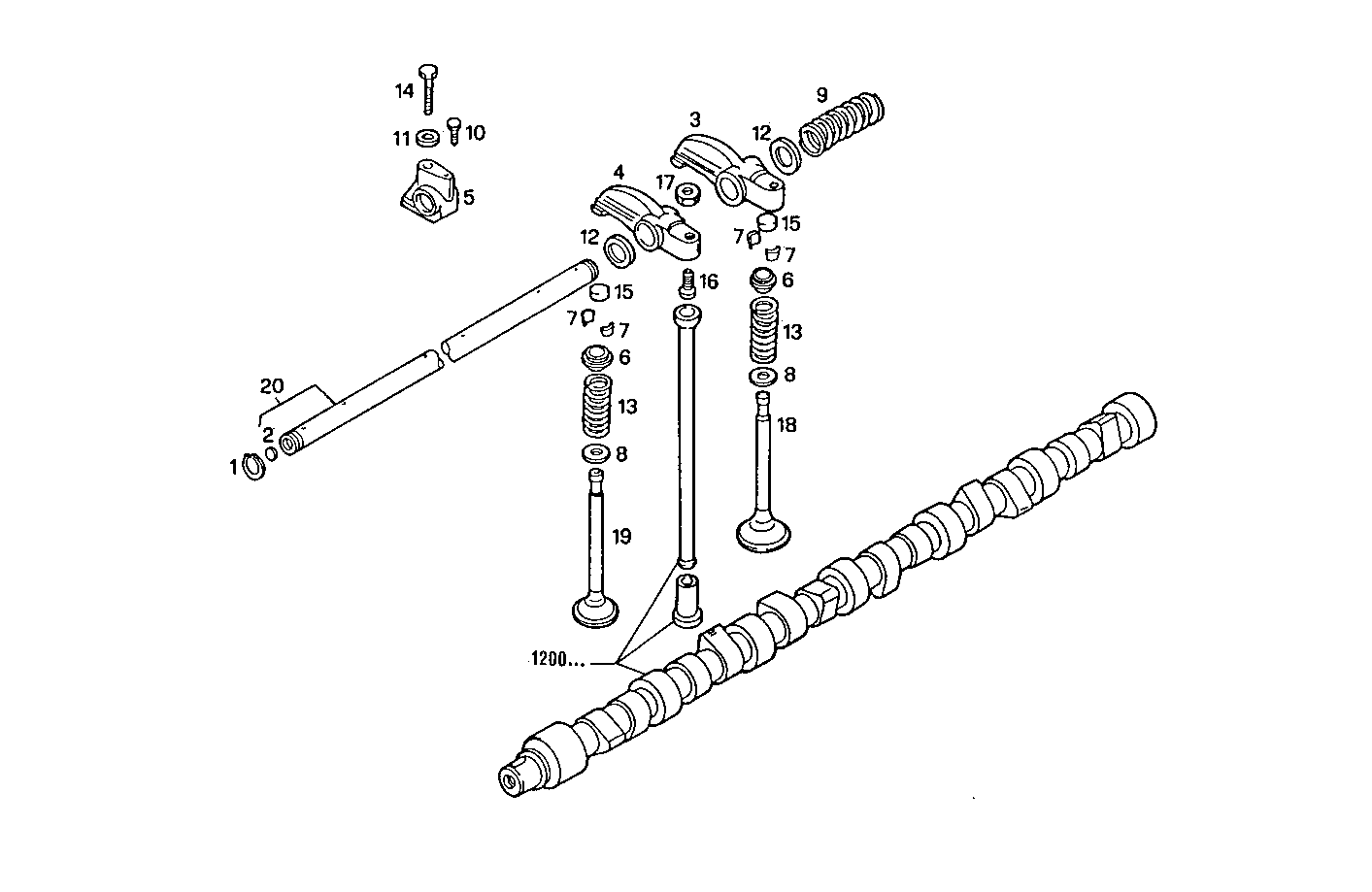

0600.089/02 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
11067276 |
CIRCLIP Ø24 MM |
|
2 |
14328501 |
LOCK PLUG Ø16 MM |
|
3 |
61315099 |
ROCKER ARM INLET |
|
4 |
61315100 |
ROCKER ARM EXHAUST |
|
5 |
61320721 |
ROCKER BRACKET |
|
6 |
61316198 |
SPRING CAP |
|
7 |
61577211 |
VALVE CONE |
|
8 |
61577212 |
WASHER |
|
9 |
61577214 |
SPRING |
|
10 |
61577283 |
HEXAGON BOLT |
|
11 |
61317063 |
WASHER |
|
12 |
61581230 |
WASHER |
|
13 |
61316197 |
ENGINE VALV.SPRING |
|
14 |
61316738 |
SCREW |
|
15 |
61316052 |
CAP |
|
16 |
4786841 |
ROCKER ARM SCREW |
|
17 |
61584377 |
NUT [from 298109] |
|
18 |
61320865 |
INLET VALVE |
|
19 |
61315973 |
EXHAUST VALVE |
|
20 |
61320081 |
ROCKER SHAFT |
